4.4.8 Menu Option - Joystick menu
This mode is used to set various parameters depending
on the Joystick mode setting - see Section 4.4.7.
Press the MENU bu tton, then use the wheel to scroll
through the menu options.
Press the MENU button to enter the 6 Joystick menu
option.
The display shows the current setting.
If Jog voltage Joystick mode is selected in the previous
section, deflecting the wheel initiates a change in the
drive voltage, using the parameters specified by the Step
parameter. To change the step size, click the MENU
button when this option is displayed, then turn the wheel
to adjust the step size.
Press MENU to store the selection and return to the main
display.
If Voltage adjust Joystick mode is selected in the previous
section, the wheel can be used to increase and decrease
the drive voltage. The voltage change is proportional to
the deflection of the wheel according to the setting in the
Speed parameter as follows:
Speed: high - Voltage adjusts at a high rate,
i.e. 1 V per detent/click.
Speed: medium - Voltage adjusts at a medium
rate, i.e. 100 mV per detent/click.
Speed: low - Voltage adjusts at a low rate,
i.e. 10 mV per detent/click.
To change the a djustment rate, cli ck the MENU bu tton
when the Speed: option is displayed, then turn the wheel
to adjust the step size.
Press MENU to store the selection and return to the main
display.

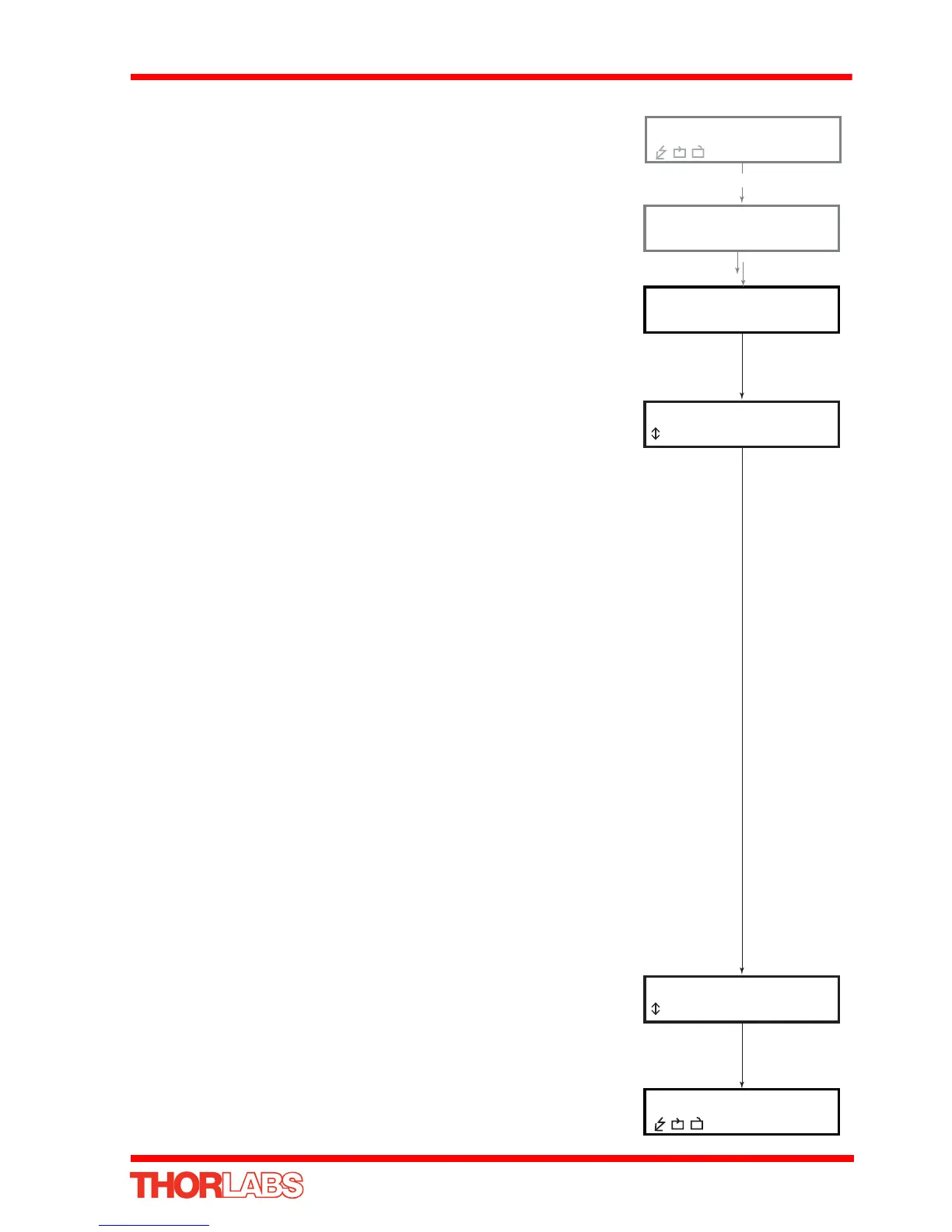

Menu options
6 Joystick menu
Menu options
Use wheel
MENU
Step: 2.50V
to change
Voltage: 0.00V
150V A J
Speed: high
to change
Position: 0.00%
150V 1 A
