THORLABS K-Cube Piezo Controller User Manual

32 HA0365T Rev D Jan 2017
Chapter 4
4.4.9 Menu Option - Teach voltage
This mode is used to set the teach positions, used when the Joystick mode option is
set to Go to voltages mode - see Section 4.4.7.
To set Teach Voltage 1...
Using the me thod described in Section 4.4.7. and Section
4.4.8. set the dr ive voltage to the value required as teach
voltage 1, then...
press the MENU button, and use the whee l to scroll
through the menu options.
Press the MENU bu tton to enter the 7 T each voltage
option.
Use the wheel to select V1, then press the MENU button
to store the present voltage setting as teach voltage 1 and
return to the main display.
When Go to voltages mode is sele cted in the Joystick
mode option (see Section 4.4.7.), an upwards deflection
of the wheel changes the drive voltage to V1 , and an
downwards deflection changes the drive voltage to V2.
To set Teach Voltage 2...
Using the me thod described in Section 4.4.7. and Section
4.4.8. set the dr ive voltage to the value required as teach
voltage 2, then...
press the MENU button, and use the whee l to scroll
through the menu options.
Press the MENU bu tton to enter the 7 T each voltage
option.
Use the wheel to select V2, then press the MENU button
to store the present voltage setting as teach voltage 2 and
return to the main display.
When Go to voltages mode is sele cted in the Joystick
mode option (see Section 4.4.7.), an upwards deflection
of the wheel changes the drive voltage to V1 , and an
downwards deflection changes the drive voltage to V2.

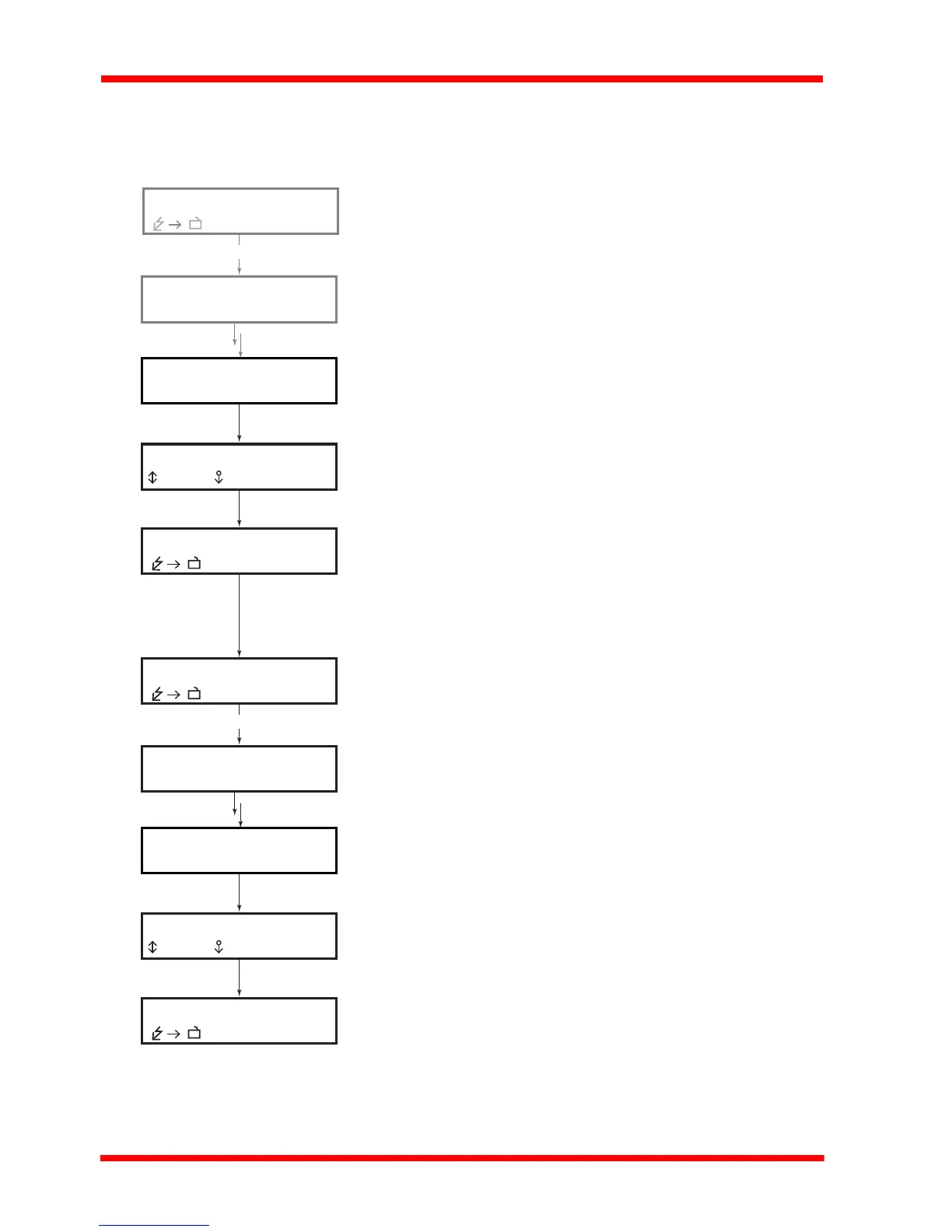

Menu options
7 Teach voltage
Menu options
Use wheel
MENU
Voltage: 35.30V
150V A J
V1: 35.30V
num store
Voltage: 35.30V
150V A J
Voltage: 60.75V
150V A J
Menu options
7 Teach voltage
Menu options
Use wheel
MENU
V2: 60.75V
num store
Voltage: 60.75V
150V A J
