2 Getting Started
2.1 Parts List
Inspect the shipping container for damage.
If the shipping container seems to be damaged, keep it until you have inspected the contents
and you have inspected the PM400 mechanically and electrically.
Verify that you have received the following items within the package:
1. PM400 Optical Power Meter Console
2. BNC-to-3.5-mm-Audio Adapter for Analog output
3. USB cable A to Mini-B
4. This Operating Manual
5. Certificate of Calibration
2.2 Operating Elements

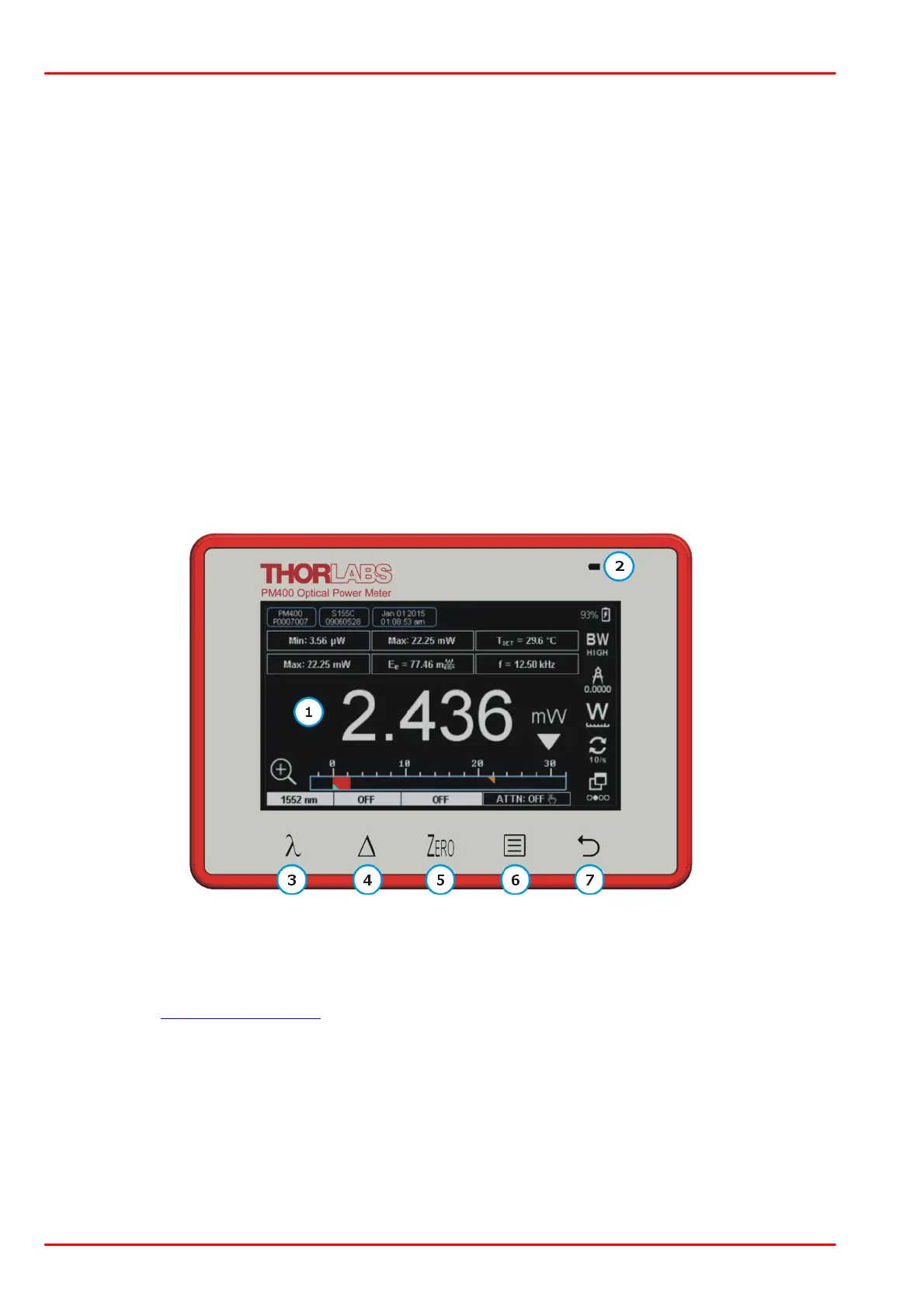

Front Panel
1
Capacitive Touchscreen Area for general operation
2
Battery Charging Indicator
3 to 7
Additional Capacitive Touch Buttons for:
3
Spectral Correction (enter operating wavelength)
4
Delta mode
5
Zeroing
6
Device Main Menu
7
Return / Reset
