OPERATING MANUAL TW63 TRANSPORT AND STORAGE
ThyssenKrupp Aufzugswerke GmbH
4. Transport and storage

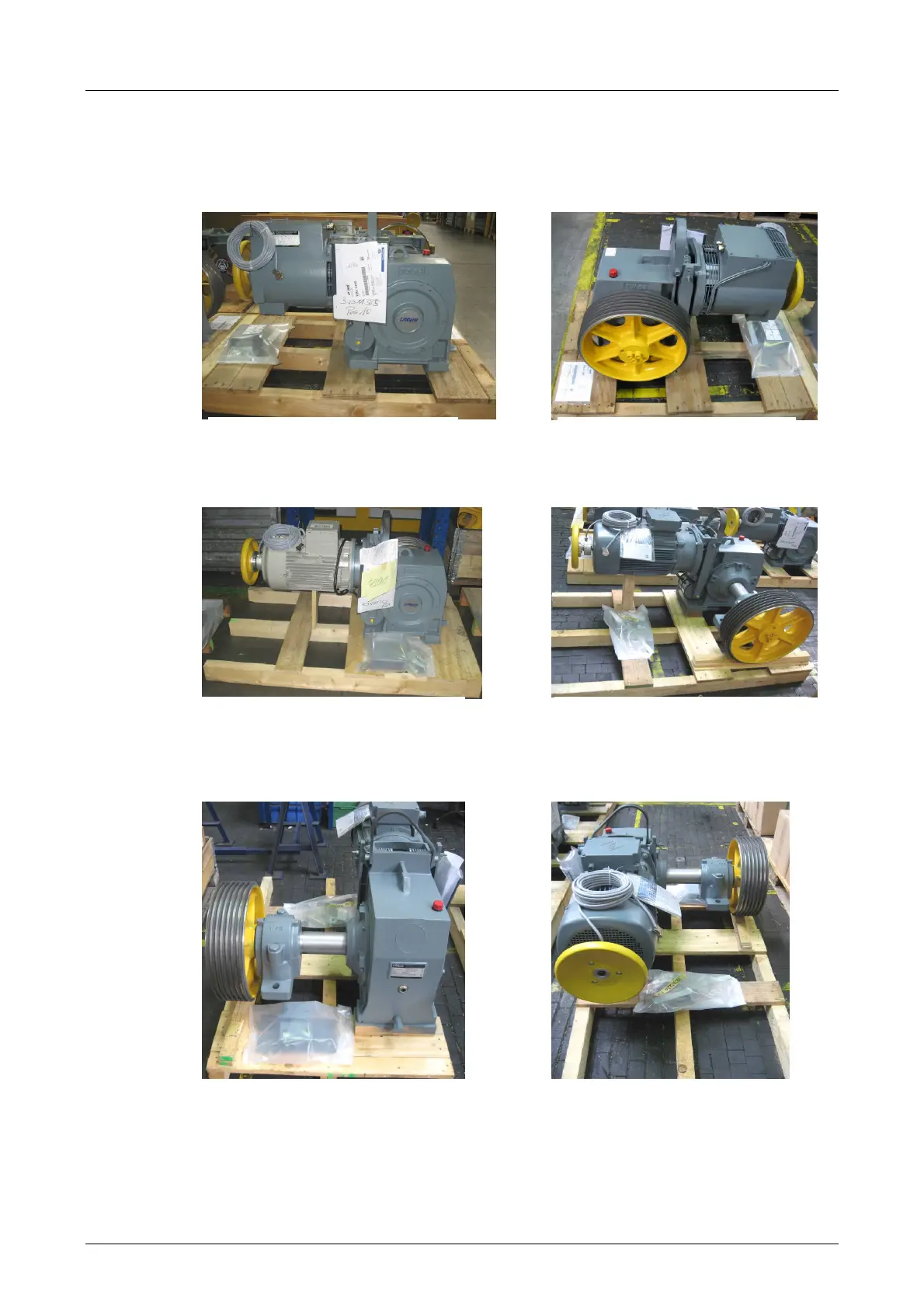

Packaging:
The gear box casing is bolted directly onto the special pallet.
Gear box casing is bolted directly onto the special pallet. Wood support under
non-TK motor.
Gea
r box casing is bolted with an intermediate wood layer onto the special
pallet.
Wood support under non-TK motor. Wood backing spacers under traction
sheave
Fig. 4.1 Fig. 4.2
Fig. 4.3 Fig. 4.3
Fig. 4.5 Fig. 4.6
