OPERATING MANUAL TW63 MOUNTING THE MACHINE
ThyssenKrupp Aufzugswerke GmbH

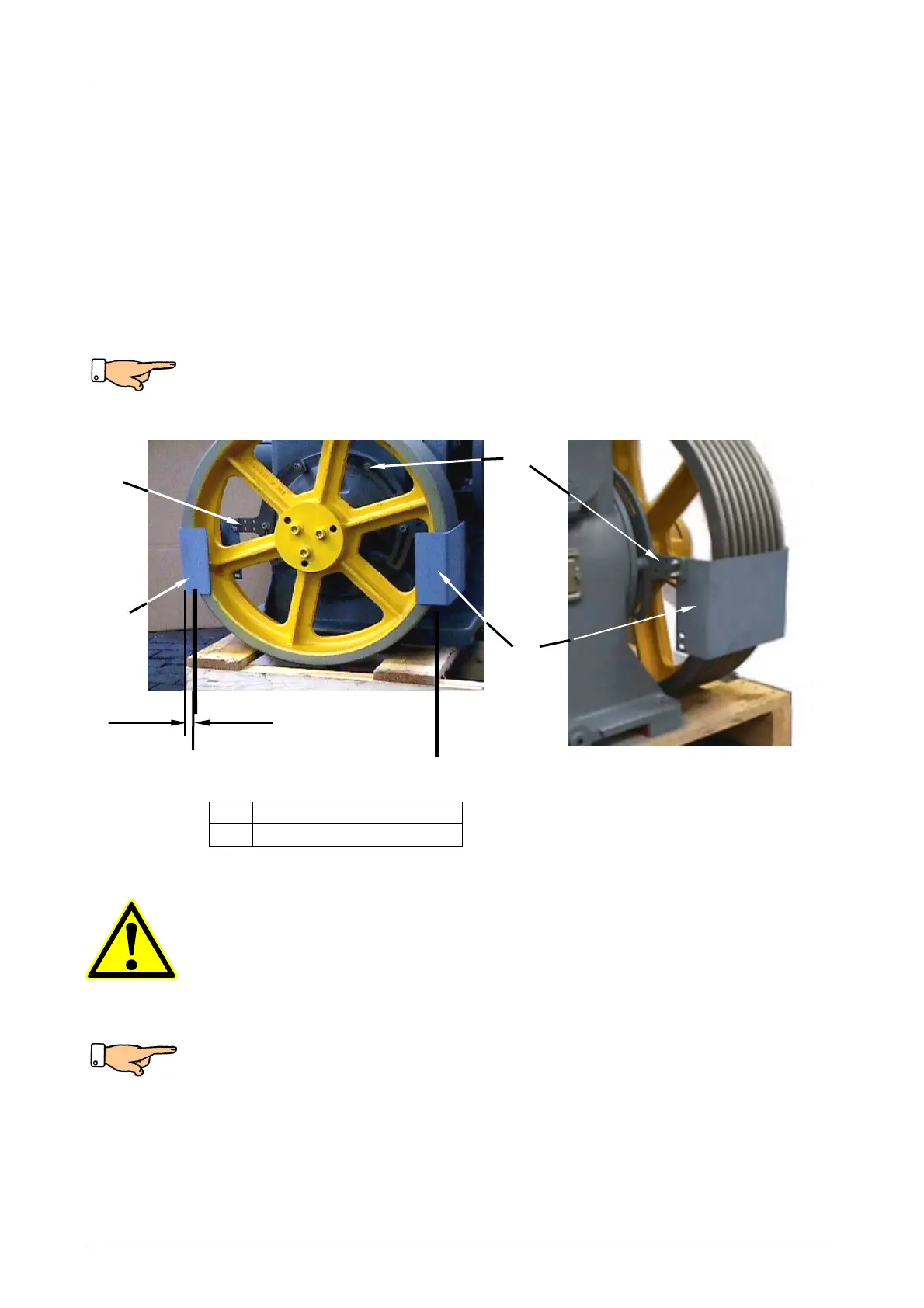

5.6 Fitting the rope guard for traction sheave
Use the enclosed screws to bolt the rope guard onto the rope guard carrier.
Pivot the rope guard carrier to set the guard is such a way that the gap
between the rope and guard on the rope run-in and run-out side of the
traction sheave is as small as possible (1 - 2 mm).
With inclined pulling, adapt the location of the rope guard carrier by
remounting the changed rope pull direction.
Note: Tighten the securing bolts of the rope guard carrier on the gear drive
after alignment with the prescribed torque.
Tightening torque, see table in the Appendix of the operating manual.
1 Rope guard carrier
2 Rope guard
Important:
For machines with rope run-in direction of 0 - 90° above the horizontal
(e.g.: machine arrangement up/down beside), an additional rope guard is
required to prevent the entry of foreign bodies between the rope and groove.
If the rope run-in zone is protected within the machine base frame, the
function "protection against injury" is not required.
Note: For SA9 traction sheave in the shaft, no rope guard is fitted at the
plant.
max. 1 - 2 mm
(Fig. W191)
Fig. 5.6.1
Fig. 5.6.2
