TW63
M
OUNTING TH
E MACHINE
Th
y
ssenKrupp
Aufzugs
werke Gm
bH
5.3

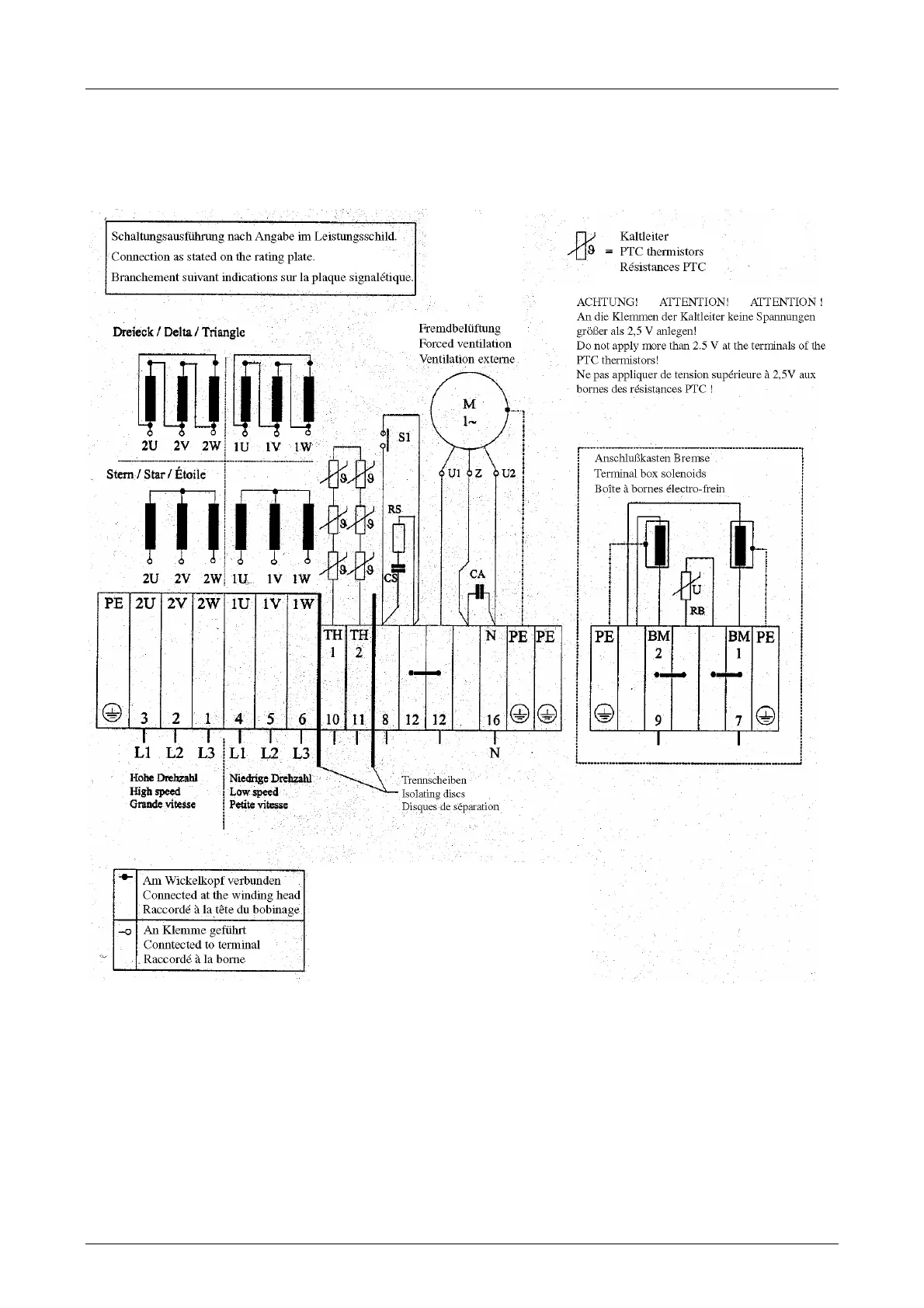

Terminal connecting information for motors compl
y
ing with BV 6531 –
21
for pole-changing three-phase motors, t
y
pe
A
4
S1
Normally open c
ontact in the
winding
RS
Min. 22
Ω
, ma
x. 47
Ω
CS
Min. 0.22 µ
F/250 V~, m
ax. 0.47 µ
F/250
V~
CA
Starting capacit
or for fan
RB
Varistor SIOV-S1
4K275
28
09-2012
27
29
