OPERATING MANUAL TW63 MAINTENANCE / SERVICE
ThyssenKrupp Aufzugswerke GmbH
7.4 Setting braking deceleration
The brake adjustment is to be carried out only with one effective brake
block with the elevator car loaded with the rated load on a descending
run (full down) or with an empty elevator car on an ascending run (empty
up) according to the deceleration values in the table below.
The braking torque must be set on uniformly on both brake blocks by
pretensioning the brake spring depending on the installation.
Machine with
flywheel mass
Machine with
handwinding wheel
V m/s
0.63 1.25 0.63 1.25 1.25
- a (full down)
m/s²
0.2 0.3 0.3 0.4 0.50
- a (empty up)
m/s²
0.4 0.5 0.5 0.6 0.75
Table: Brake deceleration values
1 Brake shoe pin 7 Washer
2 Locking screw with disc 8 Lock nuts
3 Oil ventilation 9 Armature screw
4 Control opening 10 Armature base plate
5 Brake shoes 11 Cover ring
6 Rubber disc 12 Magnetic clamp
12
1
11
10
8
9
8
7
6
5
2
3
4
2
1

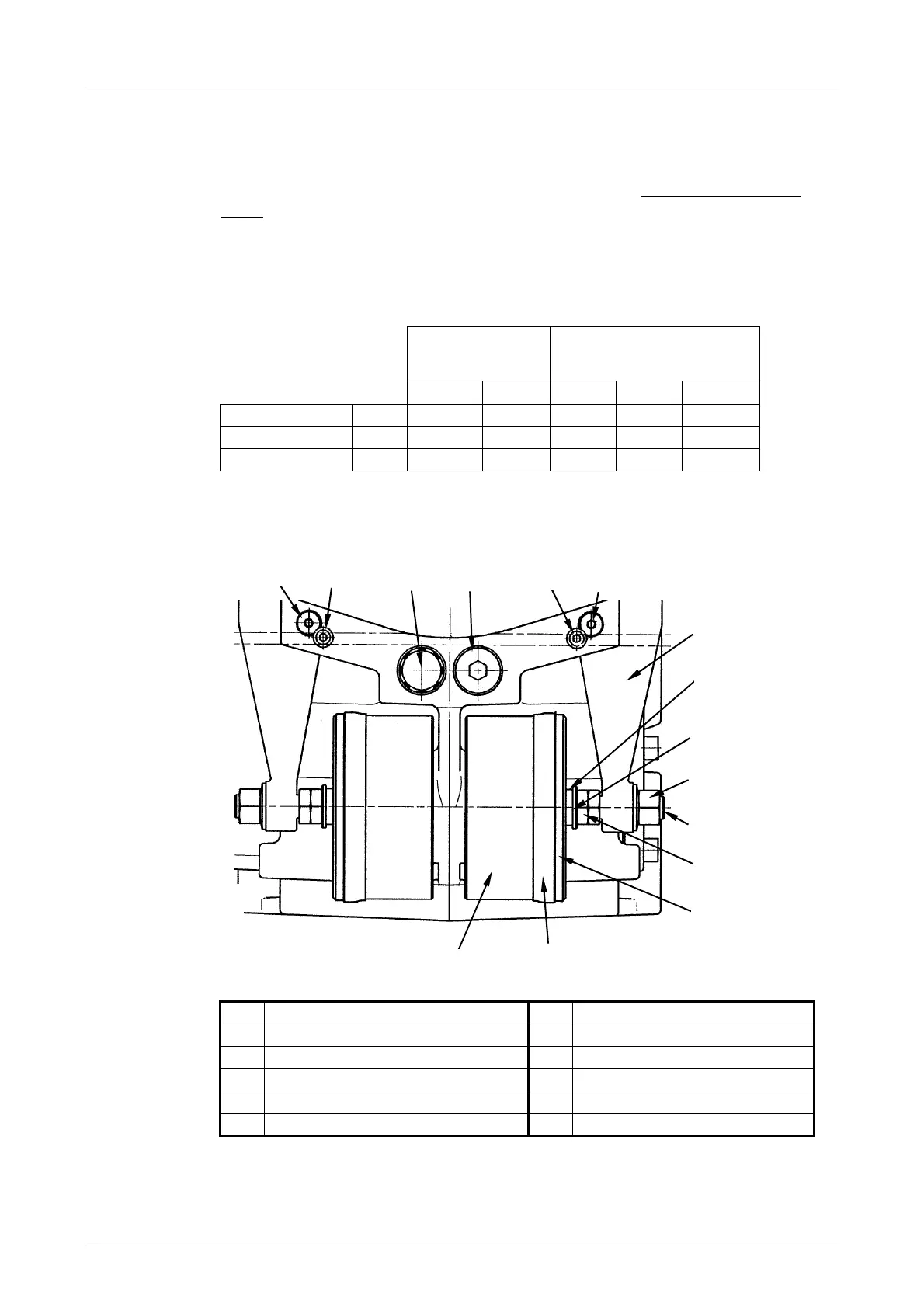

Fig. 7.4.1
Fig. TW63 V
09-2012
