OPERATING MANUAL TW63 MAINTENANCE / SERVICE
ThyssenKrupp Aufzugswerke GmbH
Version with horizontal motor position

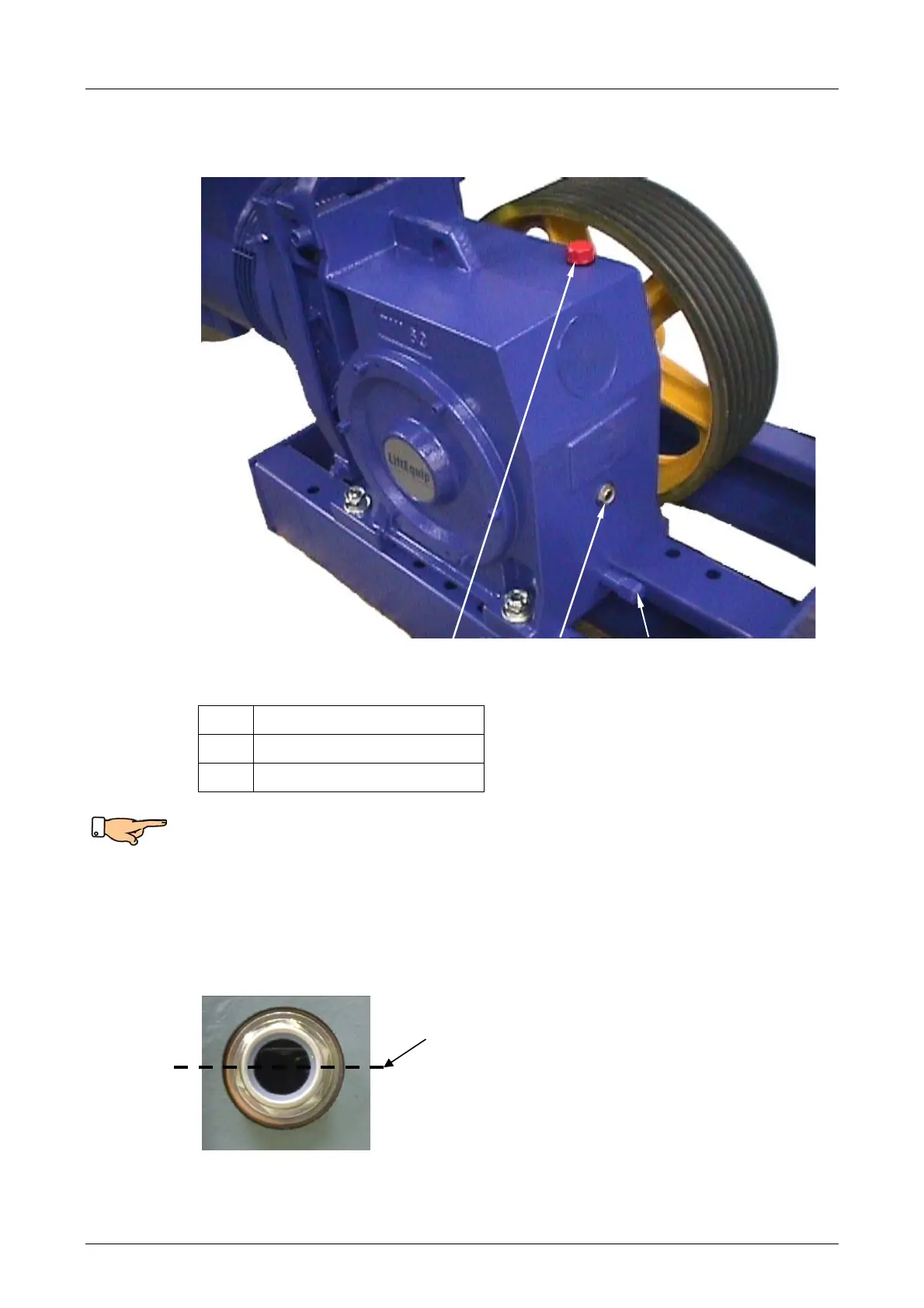

1 Oil filling hole
2 Oil gauge glass
3 Oil drain
Checking the oil level:
The oil level must be +/- 5 mm from the middles of the gauge glass.
When topping up, the machine should remain at a standstill for a certain
period ( out of service for approx. 5 minutes).
The drive is filled with oil at the plant.
1
2 3
Oil level at middle of gauge glass +/- 5 mm
Fig. 7.1.4
Fig. 7.1.3
