OPERATING MANUAL TW63 SPECIAL VERSIONS
ThyssenKrupp Aufzugswerke GmbH

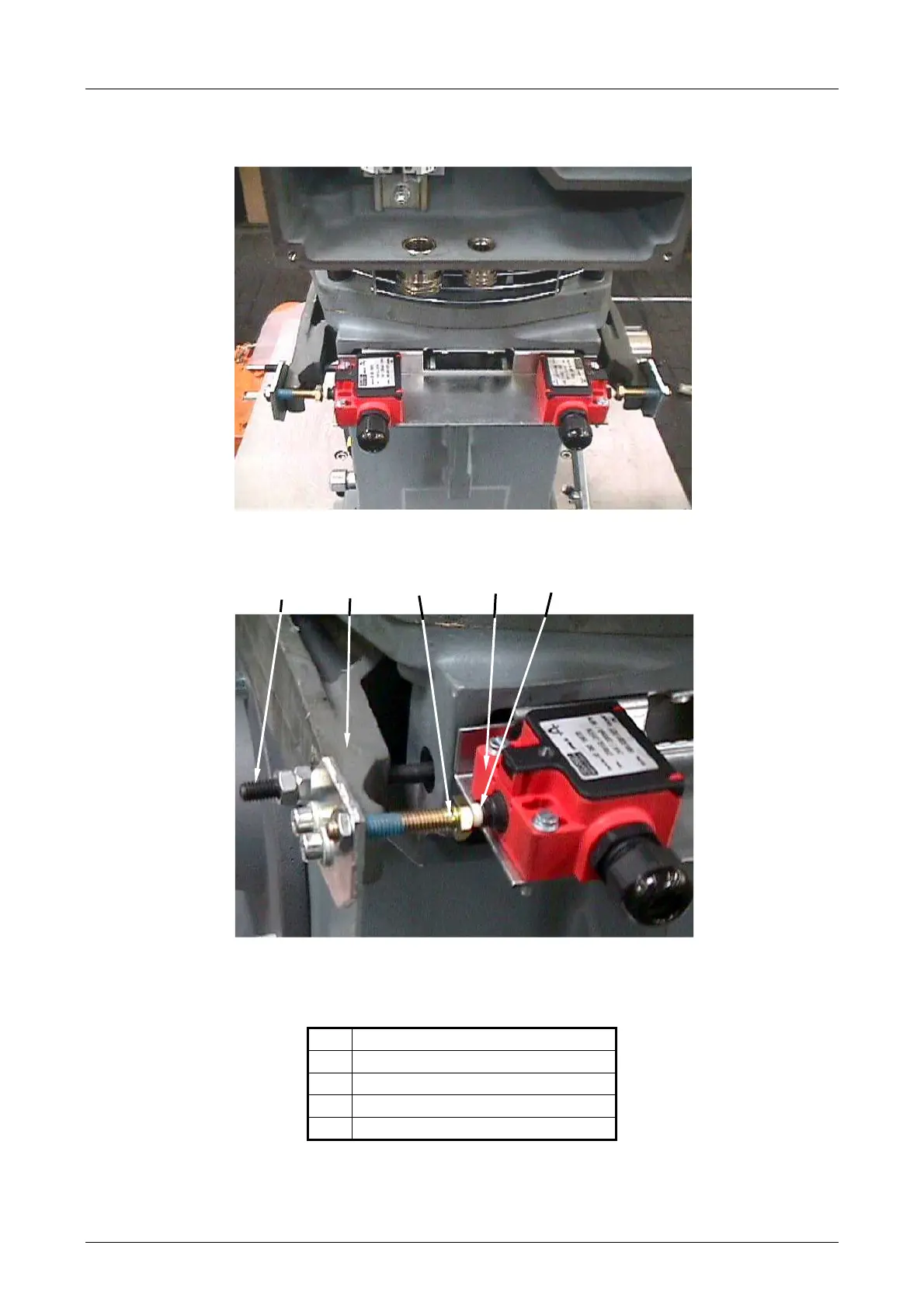

Fig. 8.1.1: Machine with fitted brake test switches (sensors)
Fig. 8.1.2: Adjusting the brake test switch (sensor) at the hexagon screw
1 Spring tension screw
2 Brake shoes
3 Setting screw
4 Brake test switch (sensor)
5 Switch tappet
1
2
3
4
5
09-2012
