Titan Performance Series User Manual

Performance Series 560e 5
GB
Description of unit
14
13
12
11
15
7
1
3
4
6
5
9
10
2
8

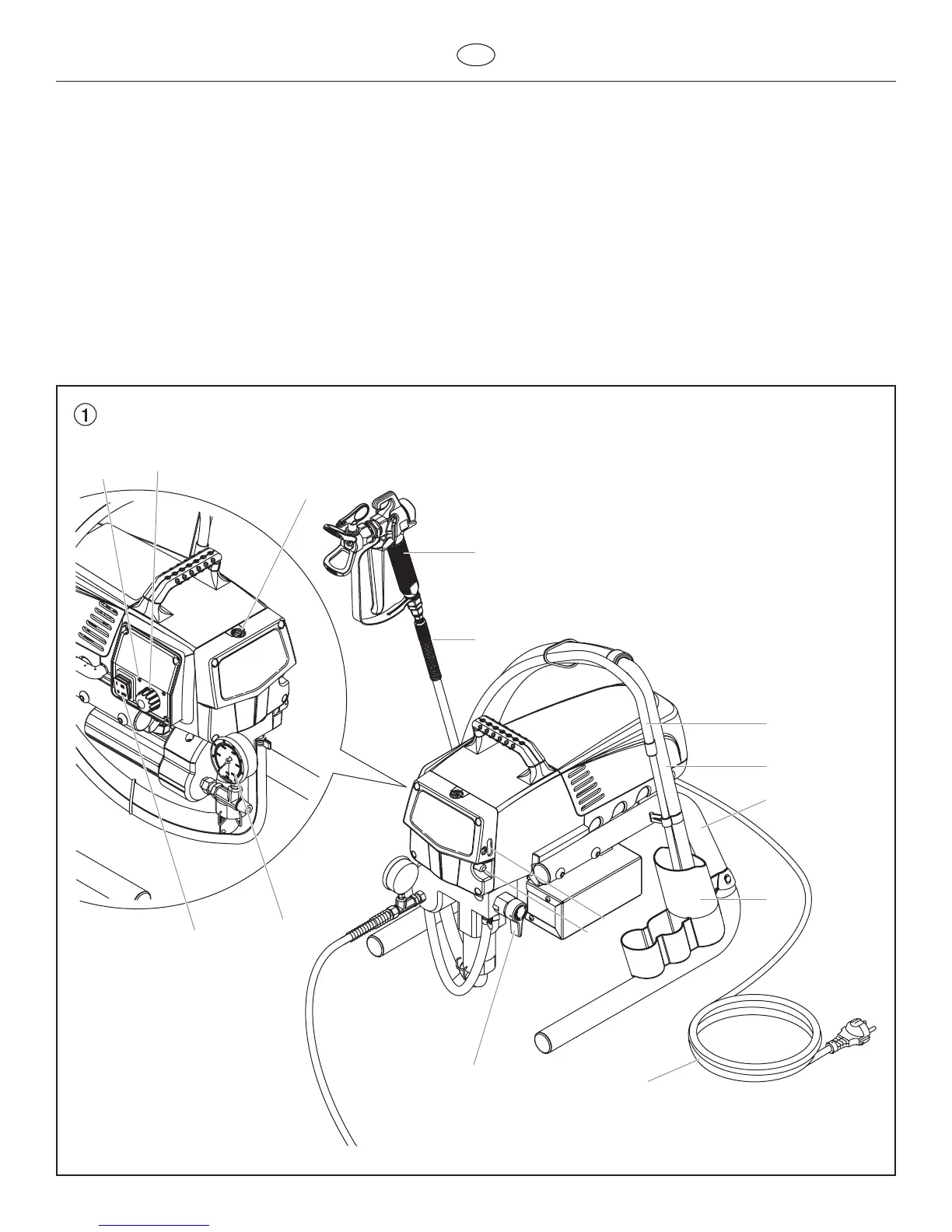

3.3 Legend for explanatory diagram Performance Series 560e
1 Spray gun
2 High-pressure hose
3 Return hose
4 Suction hose
5 Frame
6 Drip cup
7 Power cord
8 Relief valve
Lever position vertical – PRIME ( k circulation)
  Leverpositionhorizontal–SPRAY(p)
9 Oil button
10 Oil level gauge
 11 ON/OFFswitch
12 Control panel indicators
13 Pressure control knob
14 Oil cap for Piston Lube
(Piston Lube prevents increased wear of the packings)
15 Manometer
3.4 Explanatory diagram Performance Series 560e
