Titan Performance Series User Manual

6 Performance Series 560e
GB
Description of unit Starting operation
3.5 Technical data
Voltage
220~240VAC,50/60Hzor
100~120VAC,50/60Hz
Max. current consumption
220~240VAC 4.5 A
100~120VAC 12 A
Power Cord
See page 64
Acceptance capacity
1035 Watt
Max. operating pressure
221 bar (22.1 MPa, 3200 PSI)
Volume ow at 12 MPa (120 bar) with water
2.0 l/min
Max tip size
0.023 inch – 0.58 mm
Max. temperature of the coating material
43°C
Max viscosity
20.000 MPa·s
Weight
17.9 kg
Special high-pressure hose
DN6mm,15m,connectionthreadM16x1.5
Altitude
This equipment will operate correctly up to
2100 m above mean sea level
Dimensions (L X W X H)
437 x 363 x 416 mm
Vibration
Spray gun does not exceed 2.5m/s
2
Max sound pressure level
80 dB*
 * Placeofmeasuring:1mindistancefromtheunitand1.6
m above the oor, 12 MPa (120 bar) operating pressure,
reverberant oor.
3.6 Transportation in vehicle
Secure the unit with a suitable fastening.
4. Starting operation

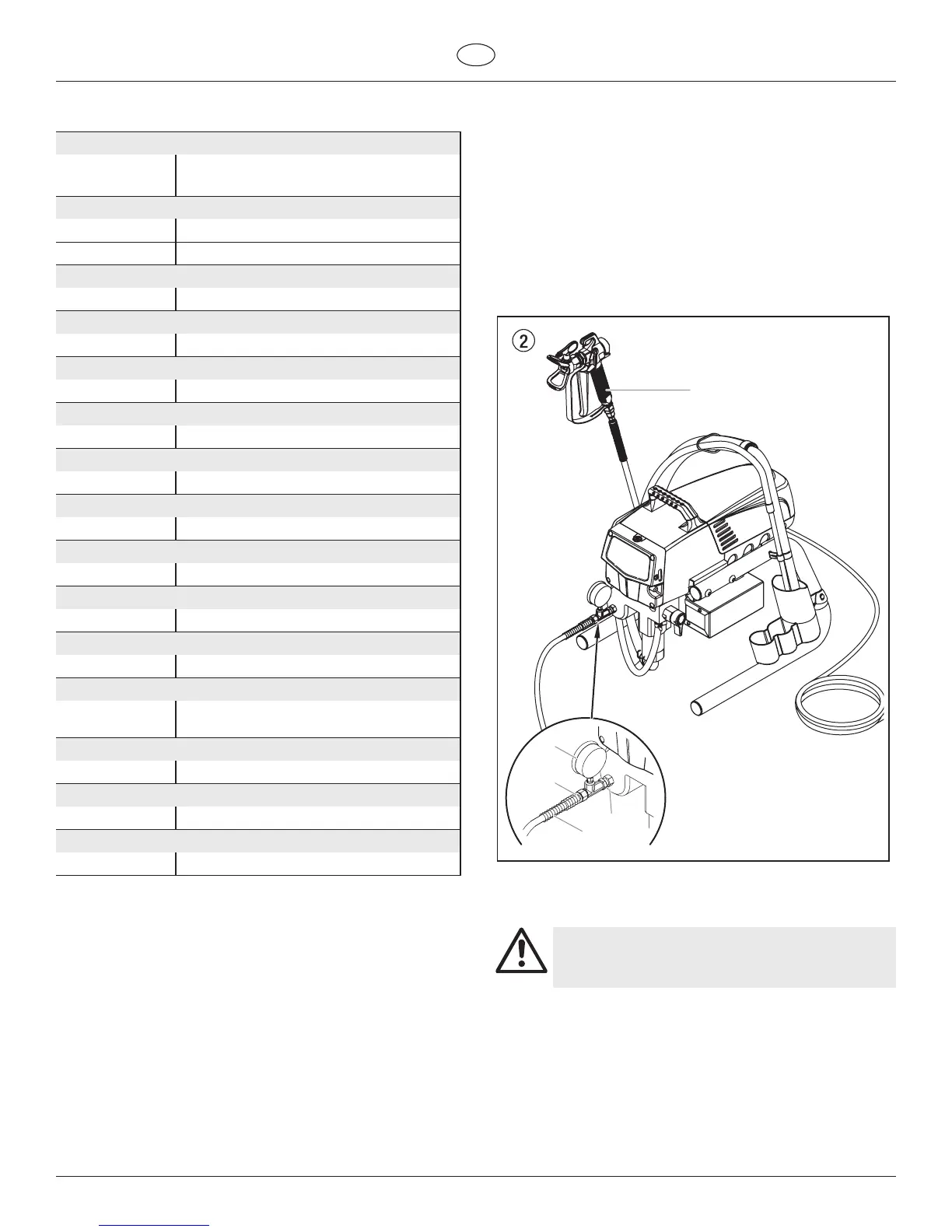

4.1 High-pressure hose, spray gun and separating
oil
1. Screw the pressure gauge (1) to the coating material outlet
(Fig. 2, Item 2).
2. Screw the high-pressure hose (3) to the coating material
outlet on the pressure gauge (Fig. 2, Item 4).
3. Screw the spray gun (5) with the selected tip onto the high-
pressure hose.
4. Tighten the union nuts at the high-pressure hoses rmly so
that coating material does not leak.
5
1
4
2
3
5. Remove the oil cup cap with a straight-slot screwdriver.
6. Fill the oil cup with Piston Lube (Fig. 3) until the oil gauge (6) is
showing that it is full.
Attention
Piston Lube prevents increased wear and tear to the
packings.
7. Replace oil cup cap.
8. Press oil button 2-5 times to prime the oiler. Press once for
every eight hours of usage to lubricate the uid section.
