3-63
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
5.1.3. Redundant configuration when no switching hubs are used

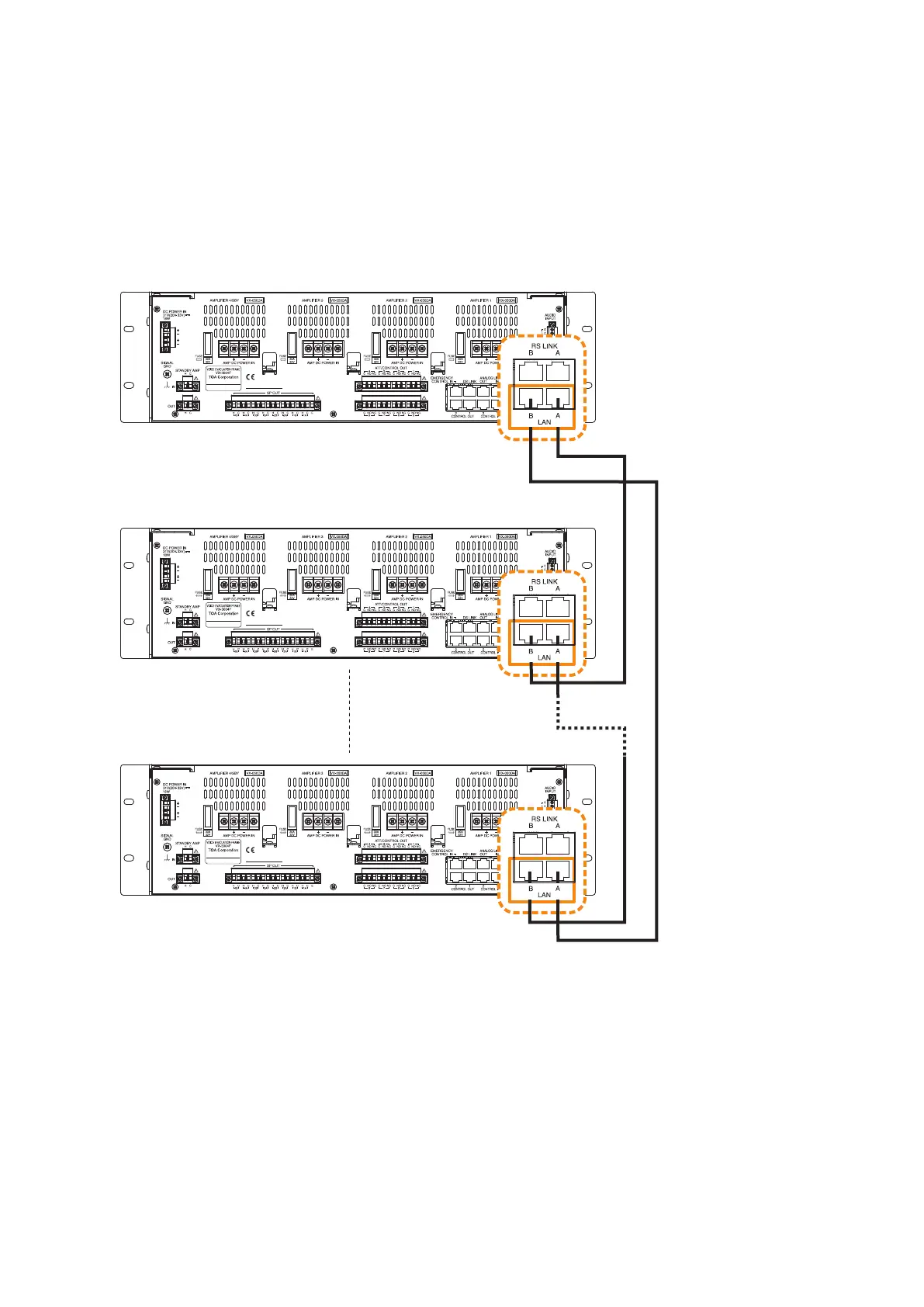

In the connection example below, both LAN link A and B terminals of each unit are connected to another VX-
3000F.
Notes
• Upto7-levelcascadeisallowedforswitchinghubconnections.
• Upto8VX-3000Fscanbeconnected.
• Afterconnectioncompletion,reactivatetheVX-3000FbypressingtheResetkeyonitsfrontpanel.
VX-3000F
VX-3000F
VX-3000F
VX-3000F
