TOHATSU MFS 4C Service Manual

5
5-39
4st 4/5/6 2011
60˚
b
b Width before correction
45˚
b
c
30˚
60˚
b
b
30˚
b Width before correction
c Specified width
b Width before correction
b Width before correction

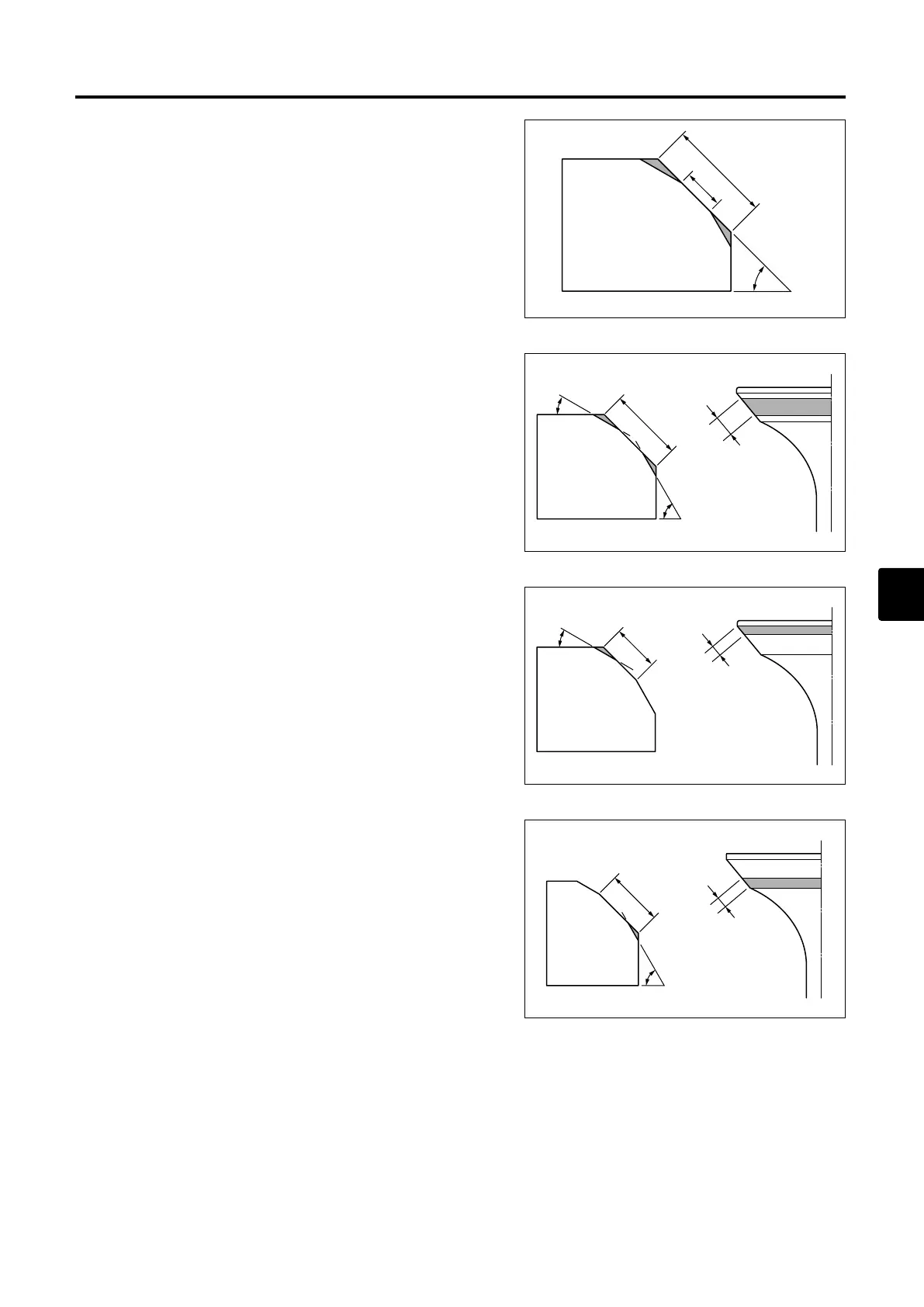

8. If valve seat contact area is narrow and is located nearer
to valve face lower end, use 60 degree seat cutter to cut
lower end. If necessary, use 45 degree cutter to adjust
contact width of valve seat to specified value.
5. Use 45 degree cutter to adjust contact width of valve seat
c to specified value.
6. Valve seat contact area is located on the center, which
should be adjusted to specified value by cutting upper and
lower ends by using 30 degree and 60 degree seat cutters
respectively if the area is too wide.
7. If valve seat contact area is narrow and is located nearer
to valve face upper end, use 30 degree seat cutter to cut
upper end. If necessary, use 45 degree cutter to adjust
contact width of valve seat to specified value.
MFS4-5-6Ech05110425.qxd11.4.2511:39AM  ページ39

TOHATSU MFS 4C Specifications

General

Brand	TOHATSU
Model	MFS 4C
Category	Outboard Motor
Language	English
