TOHATSU MFS 4C Service Manual

6
6-15
4st 4/5/6 2011

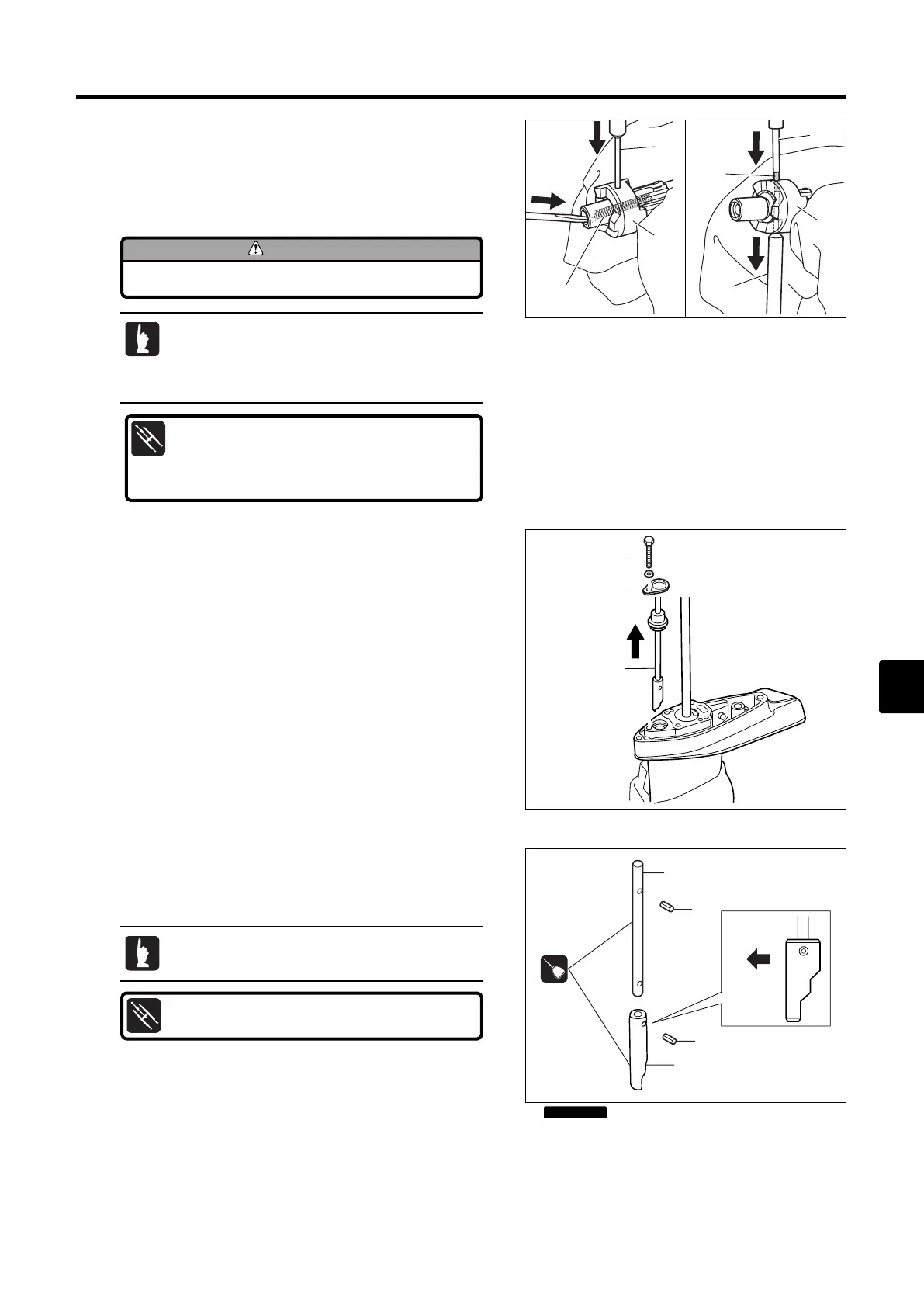

16) Inspection of Clutch Cam and Cam Rod
1. Check cam rod 1 and clutch cam 3 for crack and wear.
Replace if necessary.
15) Disassembly of Clutch Cam and
Cam Rod
1. Remove spring pins 2 and clutch cam 3 from cam rod 1.
OIL
GEARGEARGEAR
GEAR
1
3
2
2
Forward
direction
2
Do not reuse.
3
2
1
14) Removing Clutch Cam and Cam Rod
1. Remove bolt 1, stopper 2, and then pull cam rod ass'y
3 upward to remove.
2. Using bladed screw driver, shorten spring 1 by referring to
illustration, insert spring pin tool A 4 into hole of clutch 2 to
secure spring. Slowly press fit new spring pin 3 from the
other side, putting it on the spring pin tool A and by using
spring pin tool B 5.
Spring Pin Tool A :
P/N. 345-72227-0
Spring Pin Tool B :
P/N. 345-72228-0
3
6
5
7
6
4
4
· Drive spring pin into clutch hole to depth of
approximately 0.5mm from the surface.
· After setting spring pin, check operations of
clutch.
CAUTION
Do not reuse removed spring pin.
· Use spring pin tool A to remove spring pins.
· Do not reuse removed spring pins.
Spring Pin Tool A :
P/N. 345-72227-0
