TOHATSU MFS 4C Service Manual

5
5-11
4st 4/5/6 2011

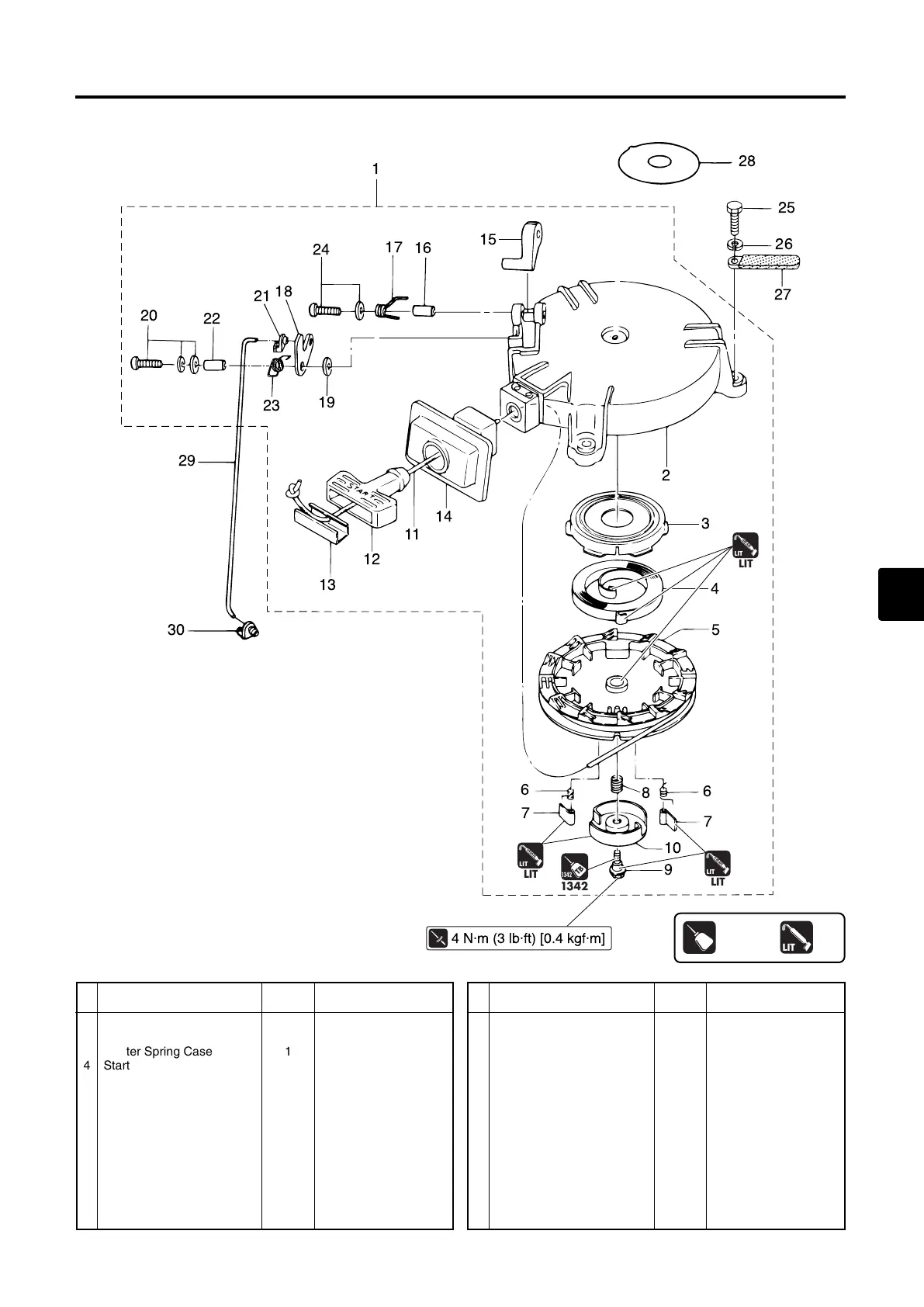

Recoil Starter P/L Fig. 5
































LIT
GREASE
LIT
LIT
GREASE
LIT
LIT
GREASE
LIT
TB
13421342
1342
     
LIT
GREASE
LIT
1 Recoil Starter Ass'y 1
2 Starter Case 1
3 Starter Spring Case 1
4 Starter Spring 1
5 Reel 1
6 Return Spring 2
7 Ratchet 2
8 Friction Spring 1
9 Bolt Starter Shaft 1
10 Friction Plate 1
11 Starter Rope 1
12 Starter Handle 1
13 Rope Anchor 1
14 Sealing Plate Starter 1
15 Starter Lock 1
Ref.
No.
Description Remarks
Q'ty
16 Collar 4-6-21 1
17 Starter Lock Spring 1
18 Starter Lock Cam 1
19 Washer 1
20 Screw 1 M6 L=16mm
21 Rod Snap 1
22 Collar 6.1-8-6.5 1
23 Starter Lock Cam Spring 1
24 Screw 1 M4 L=30mm
25 Bolt 3 M6 L=23mm
26 Spring Washer 3
27 Clamp 6.5-47.5P 1
28 Caution Decal (B) 1
29 Starter Lock Rod 1
30 Rod Snap 3.5-2 1
Ref.
No.
Description
Remarks
Q'ty
TB
13421342
1342
