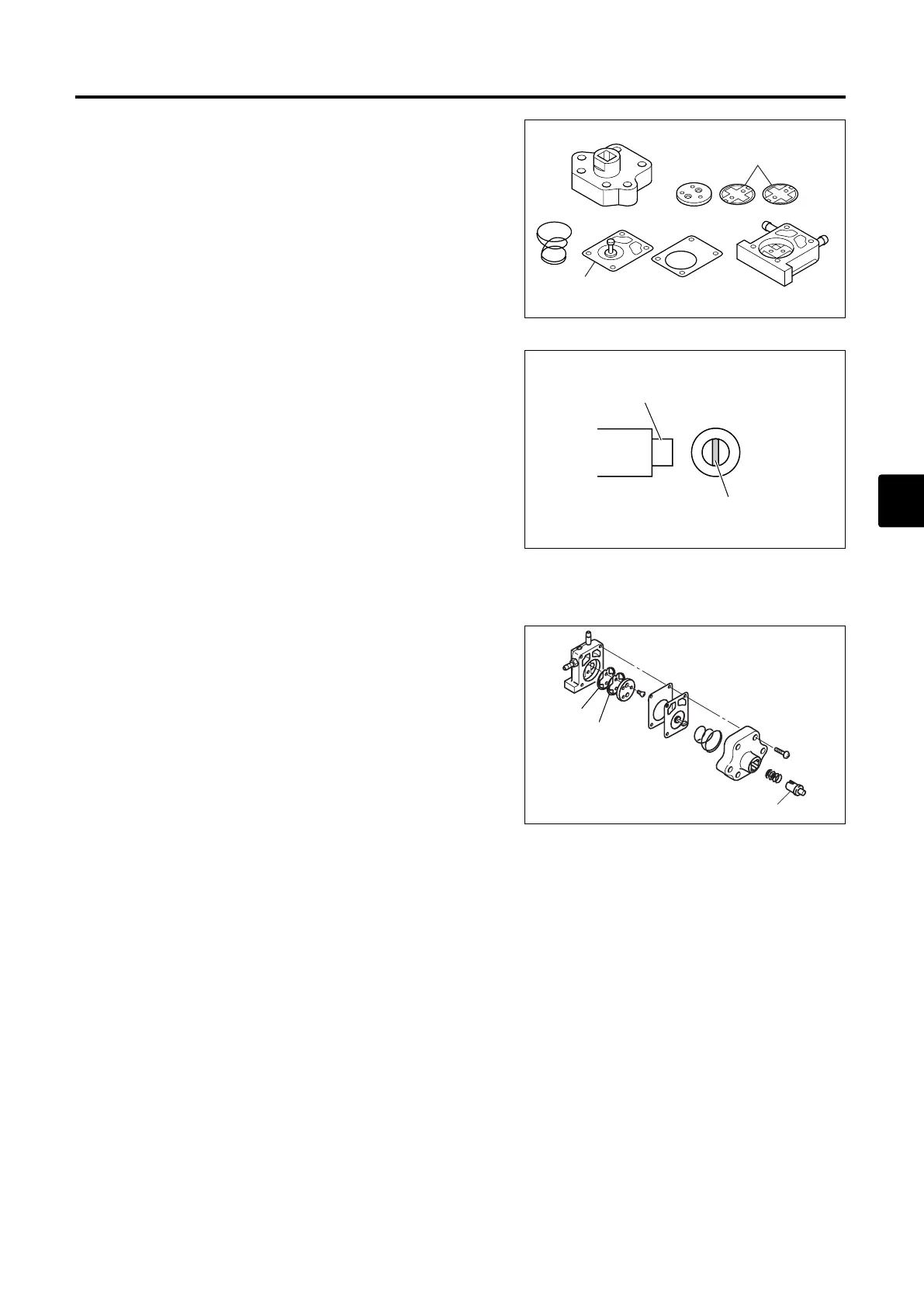

15) Assembly of Fuel Pump
1. Assemble parts by reversing disassembling steps.
After assembling, check movement of push rod 1 by
pushing it with a finger.
1
A
B
1
2
3. Check diaphragm 1 for break, crack and damage, and
replace if necessary.
4. Check check valve 2 for damage and deterioration, and
replace if necessary.
5. fuel pump body for crack and damage, and replace if
necessary.
3
a
6. Check push rod 3 for wear on the slipper surface a, and
replace if severely worn.
7. Clean fuel pump body.
A Plastic Sheet B Rubber
