Piston & Crank Shaft
4st
OIL
4st OIL

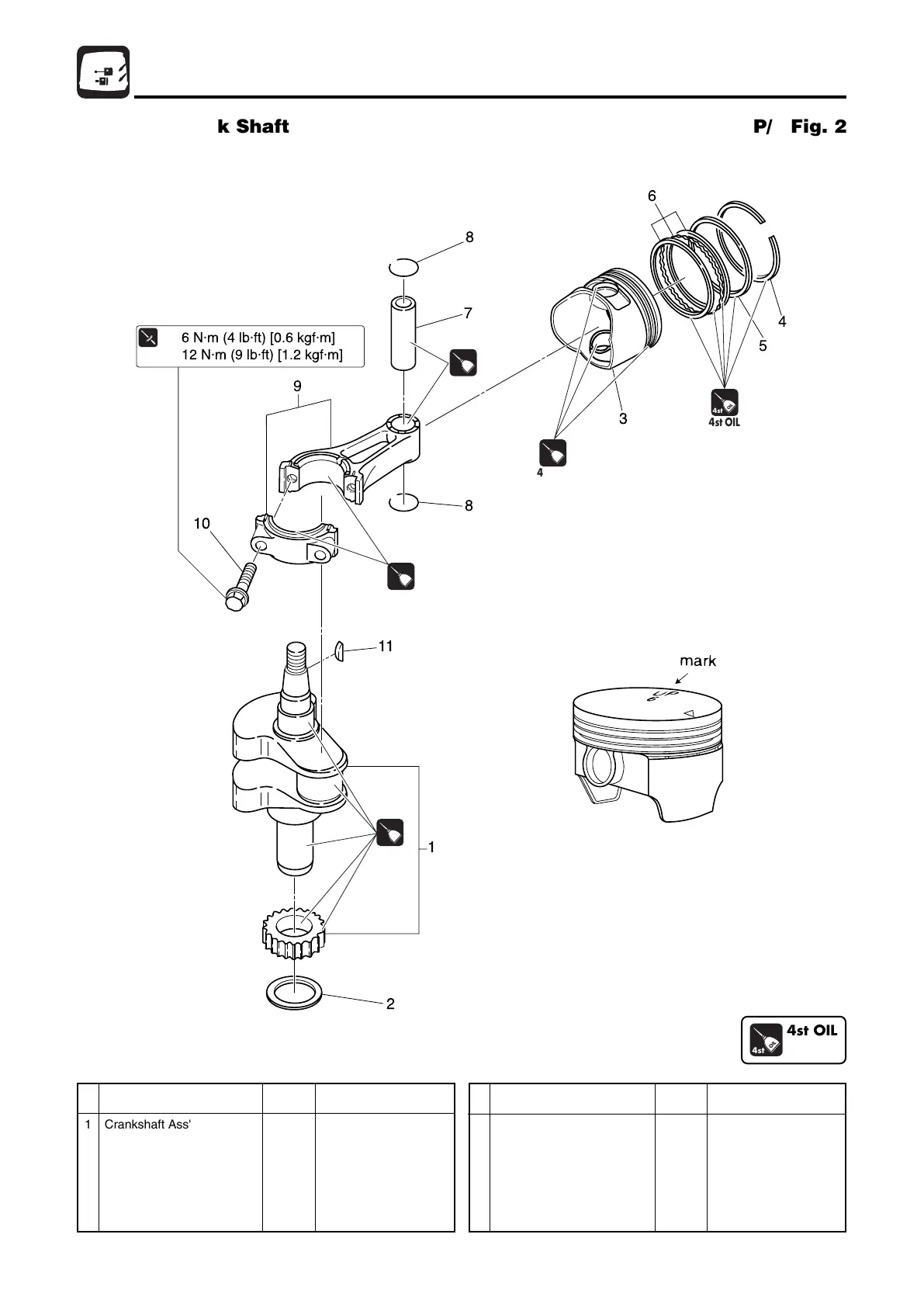

P/L Fig. 2
1 Crankshaft Ass'y 1
2 Thrust Plate 1
3-1 Piston 1
3-2 Piston (0.5 O/S) 1
4-1 Piston Ring (STD) 1st 1
4-2 Piston Ring (0.5O/S) 1st 1
5-1 Piston Ring (STD) 2nd 1
5-2 Piston Ring (0.5O/S) 2nd 1
Ref.
No.
Description Remarks
Q'ty
6-1 Piston Ring-Oil (STD) 1
6-2 Piston Ring-Oil (0.5 O/S) 1
7 Piston Pin 1
8Piston Pin Clip 2
9 Connecting Rod Ass'y 1
10 Connecting Rod Bolt 2
11 Key Magneto 1
Ref.
No.
Description Remarks
Q'ty
