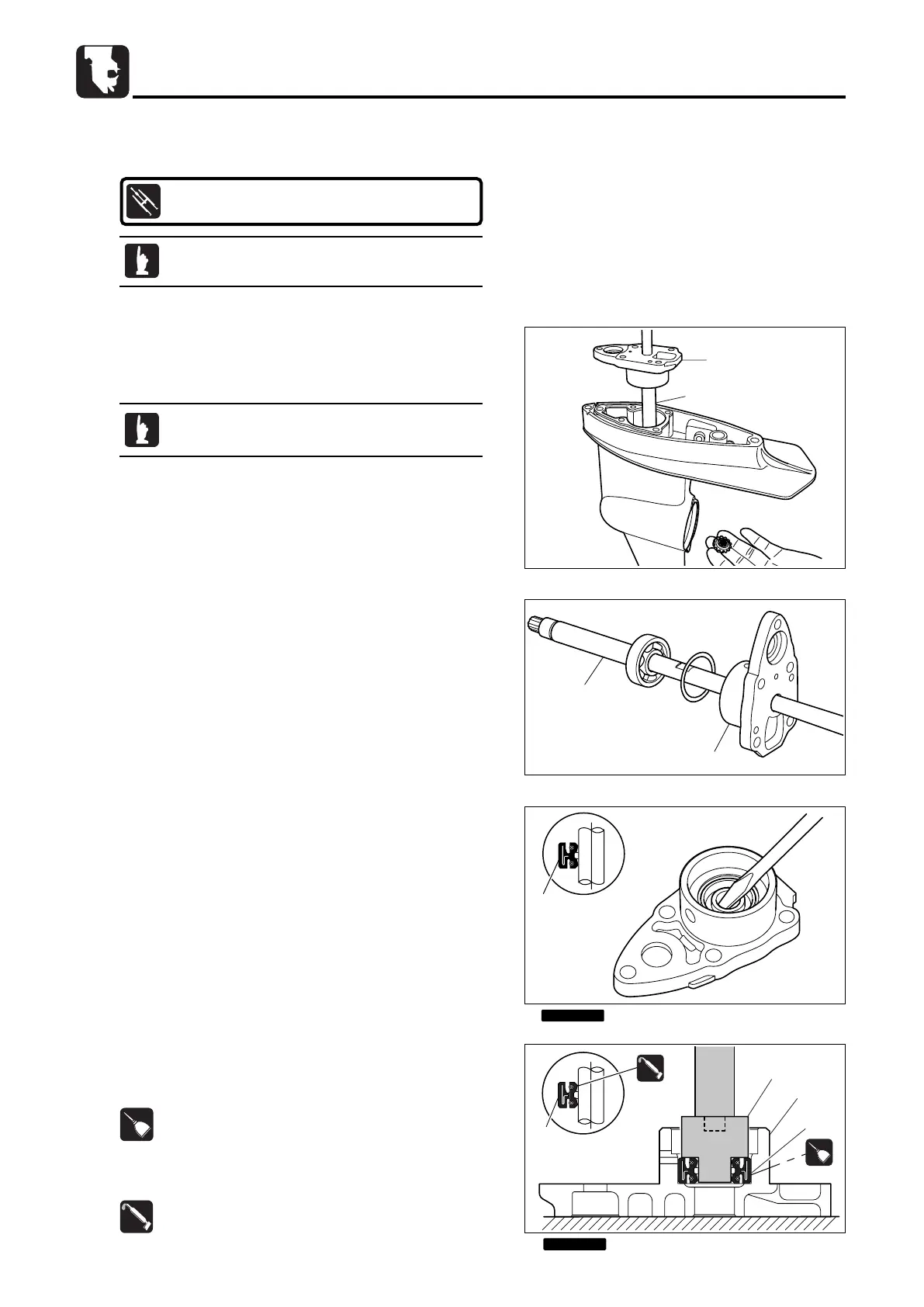

19) Disassembly of Pump Case (Lower)
1. Use bladed screw driver to remove oil seal 1.
1
Do not reuse.
2. Remove forward (A) gear from gear case.
3. Remove pump case (lower) 1 from drive shaft 2.
1
3
2
GREASE
OBMOBMOBM
OBM
1
OIL
GEARGEARGEAR
GEAR
20) Assembly of Pump Case (Lower)
1. Apply gear oil to outside of new oil seal 1, and attach it to
pump case (lower) 3 with numbered side down by using a
commercially available mandrel 2.
2. Apply OBM grease to lip of oil seal 1.
1
Do not reuse.
18) Removing Pump Case (Lower)
1. Remove pump case (lower) 1 and drive shaft 2 while
holding pinion (B) gear with hand.
Pinion gear (B) will drop into gear case when
drive shaft is removed.
2
1
17) Assembly of Clutch Cam and Cam Rod
1. Install clutch cam 3 and spring pin 2 to cam rod 1.
Spring Pin Tool B :
P/N. 345-72228-0
Be careful of direction of cam rod.
OIL
GEARGEARGEAR
GEAR
GREASE
OBMOBMOBM
OBM
