TOHATSU MFS 4C Service Manual

11-37
4st 4/5/6 2011
11
2. Install igniter so that specified clearance is achieved, and
connect plug cap to spark plug.
3. Connect stop switch lead and warning lamp lead to igniter.
11
LED teminal (small)
Stop switch terminal
(large)
GND (non painted)
Spark plug cap
  
  
 
  



 

 

  
!

"

  
!
"

  
!

"


!
"
!

"


  


!
"

 

  
#  $ $ %&'(')*&'
・    !+,-
・ !   $  .   ,  + $   $  $/ 

・ ! 0 1#2#'' 3 0 
・ $  , ++  $   . $    ,
+  ++ +  $ -
・ $ $ ,+ 4  .5 +   6  . . $-

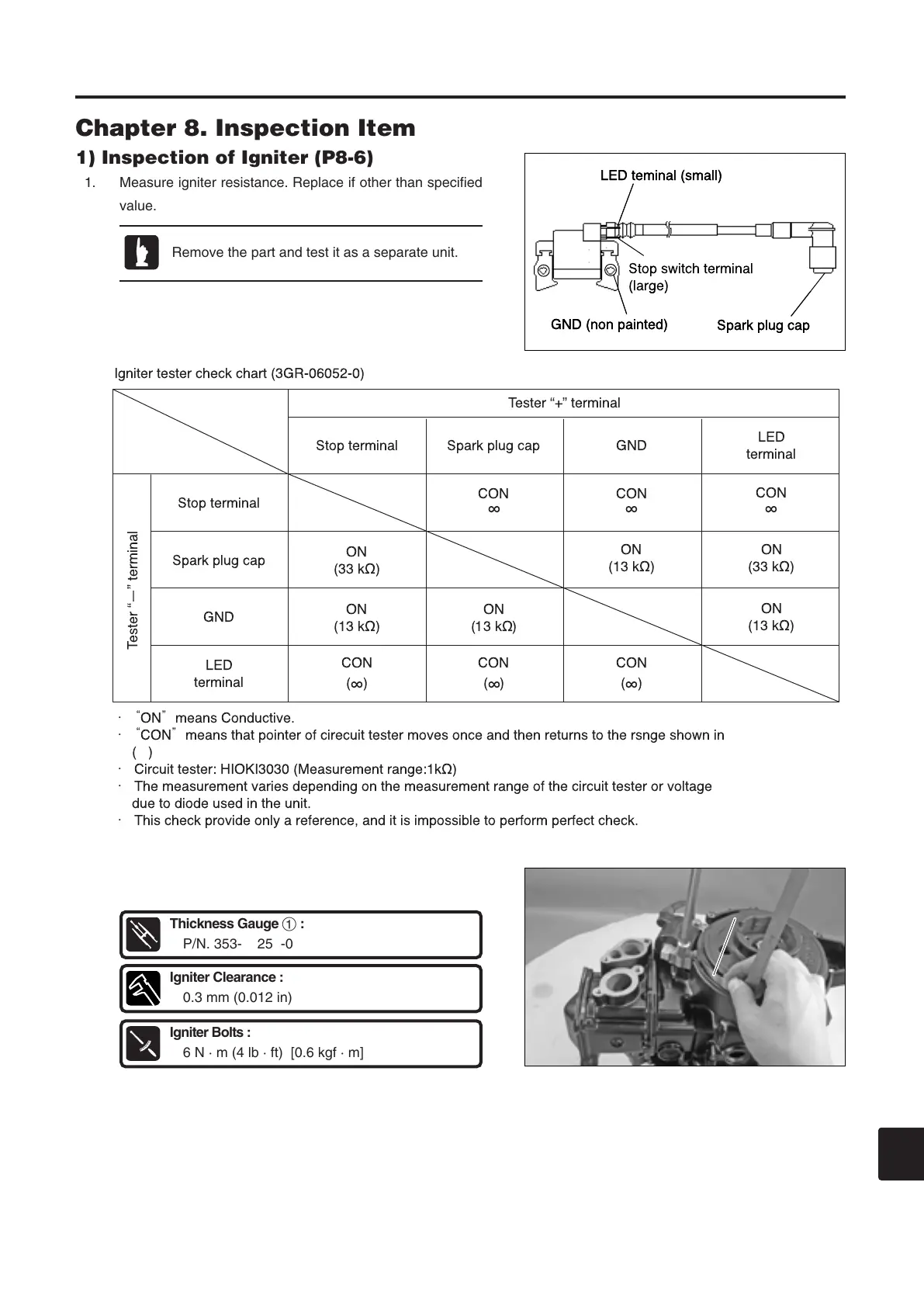

Chapter 8. Inspection Item
1) Inspection of Igniter (P8-6)
1. Measure igniter resistance. Replace if other than specified
value.
Remove the part and test it as a separate unit.
Igniter Clearance :
0.3 mm (0.012 in)
Igniter Bolts :
6 N · m (4 lb · ft) [0.6 kgf · m]
Thickness Gauge 1 :
P/N. 353-72251-0
MFS4-5-6Ech11110427.qxd11.4.279:12 AM  ページ37
LED teminal (small)
Stop switch terminal
(large)
GND (non painted)
Spark plug cap
