TOHATSU MFS 4C Service Manual

5-44
Power Unit
4st 4/5/6 2011
4
5
5
4
6
6
4st OIL
4st
OIL
4st OIL
4st
OIL
4st OIL
4st
OIL
4st OIL
4st
OIL

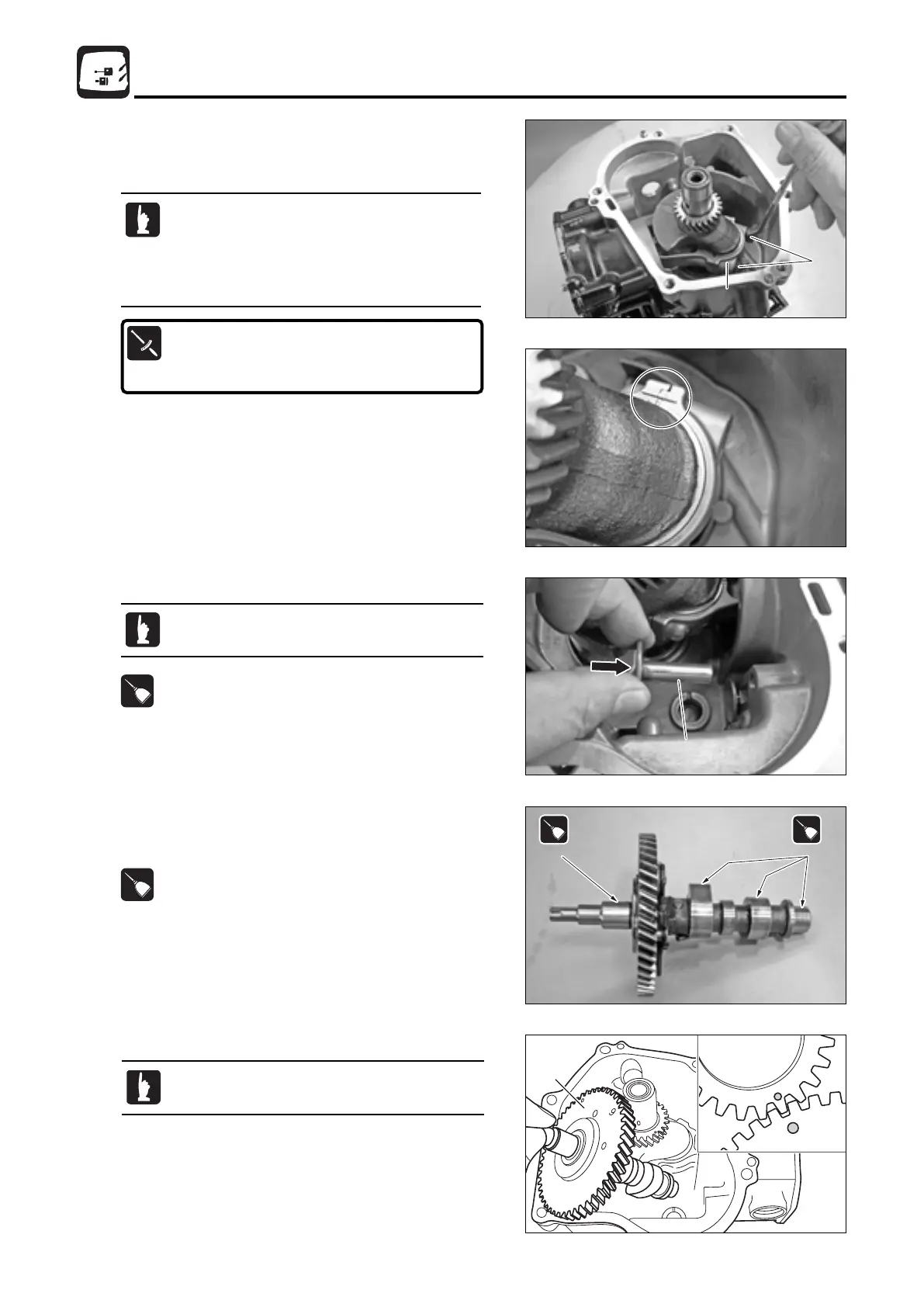

6. Install lifter 6 to cylinder block.
7. Apply much engine oil to faces of cam shaft that contacts
valve lifter and bearing.
8. Install cam shaft 7 to cylinder block as shown.
Apply much engine oil to face of valve lifter that
contacts cam shaft.
aa
cc
bb
57
Bring crank shaft mark d to cam shaft w mark
e.
4st
OIL
4st OIL
4st
OIL
4st OIL
5. Attach connecting rod cap 4 to connecting rod, and
tightening connecting rod bolts 5 in two steps to specified
torque.
Connecting Rod Bolts 5 :
1st
tightening torque : 6 N · m (4 lb · ft) [0.6 kgf · m]
2nd tightening torque : 12 N · m (9 lb · ft) [1.2 kgf · m]
· Install connecting rod cap 4 after applying
engine oil to inside of the part.
· Bring locating marks a of connecting rod cap
4 and connecting rod, and install in original
position (direction).
MFS4-5-6Ech05110425.qxd11.4.2511:39AM  ページ44
