Bracket
7-16
4st 4/5/6 2011

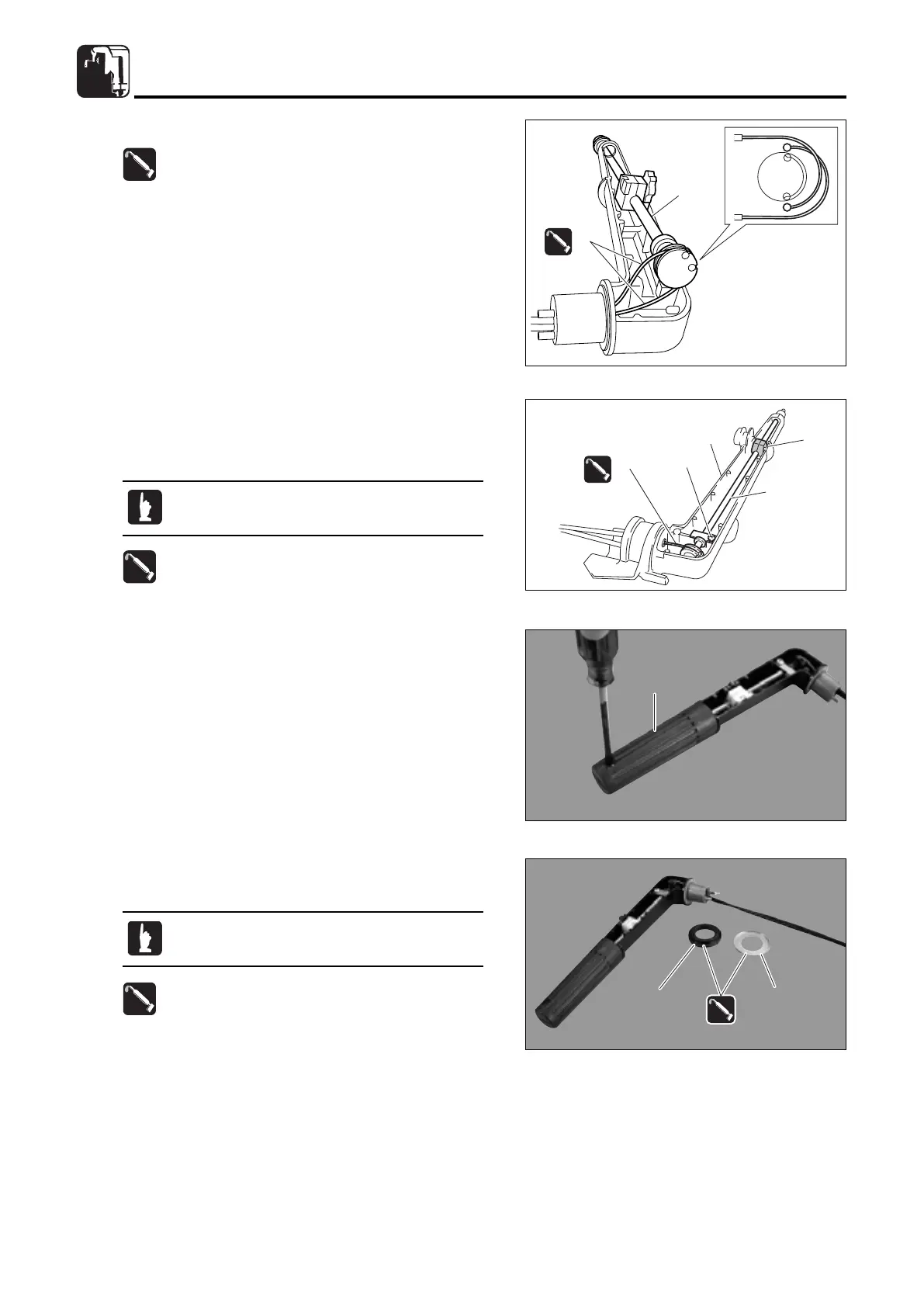

5. Attach throttle wire 9 to throttle shaft 0 as shown.
7. Install throttle grip r to tiller handle, and secure with
screw.
GREASE
OBMOBMOBM
OBM
9
0
e
0
q
w
GREASE
OBM
OBM
OBM
OBM
9
r
r
GREASE
GREASE
OBM
OBM
OBM
OBM
OBM
OBM
t
y
t
y
GREASE
OBM
OBM
OBM
OBM
6. Attach throttle shaft 0 with throttle wire 9 to tiller handle
q, and tighten adjusting screw w securely.
Tighten throttle supporter.
8. Install tiller handle bushing t and spacer y to tiller
handle.
Be careful of location of throttle friction e.
Apply grease to tiller handle bushing t and
spacer y.
GREASE
OBMOBMOBM
OBM
GREASE
OBMOBMOBM
OBM
GREASE
OBMOBMOBM
OBM
