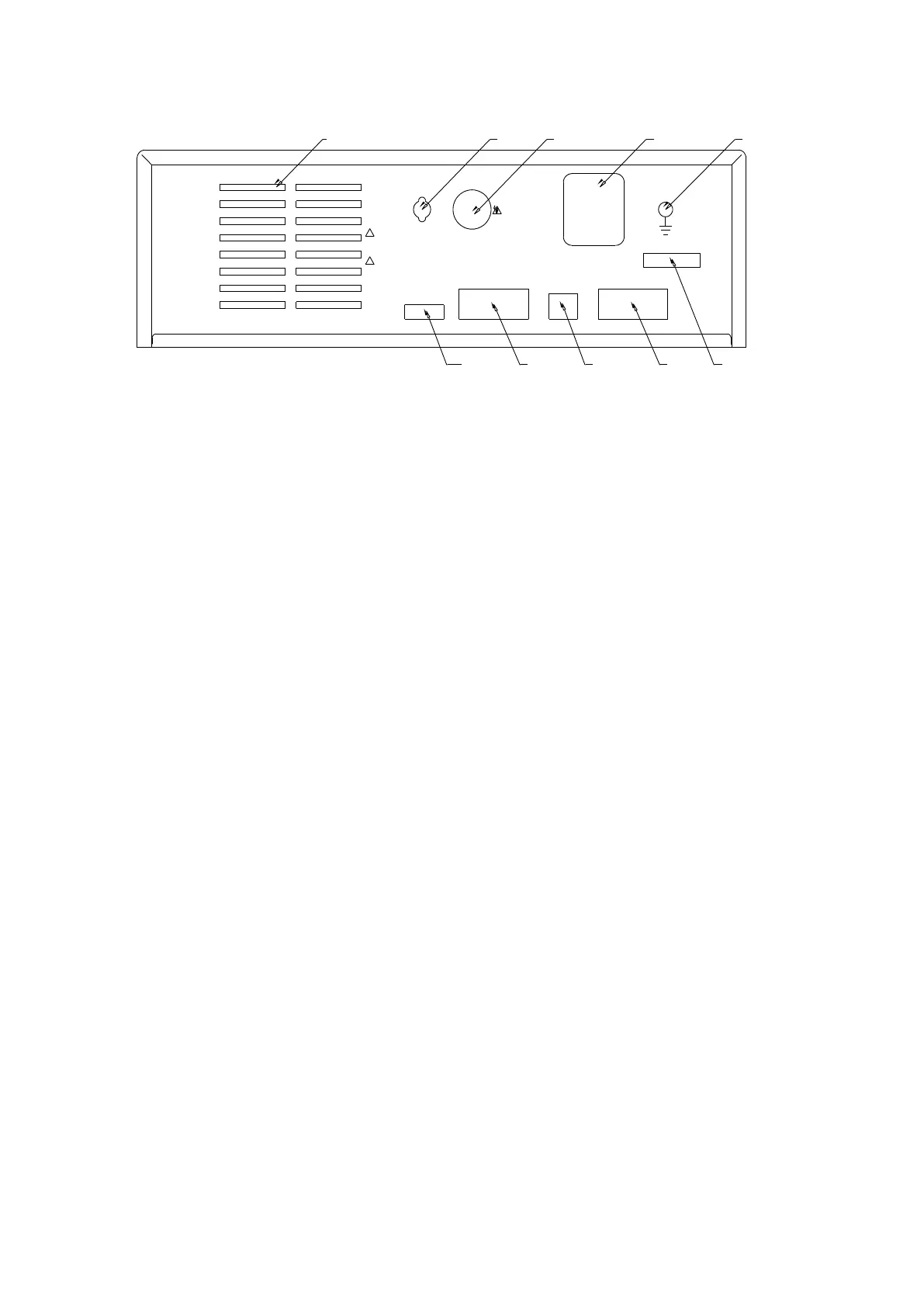

Figure 3-2
3.2.1 Fan
Power amplifier circuit radiator
3.2.2 Test low terminal, test current return terminal (optional)
Stand-by test low terminal of high voltage test interface
3.2.3 High voltage output terminal (optional)
Stand-by high voltage output terminal of high voltage test interface.
3.2.4 Power jack: with fuse holder, switchable line voltage mode
Be used to input AC power. Please use the voltage within the specified input voltage range and please
use the attached power line with fuse. Change the fuse according to input power.
Please choose different installation position according to different input power type. Please pay attention
to the visible identification on the outer shell of the fuse holder when installing.
NOTE: The instrument supports 110 and 220 line voltage modes only. Other modes are not
connected in the interior of the instrument.
3.2.5 Protective earth terminal
Be used to connect instrument to ground.
NOTE: The three-pin power jack of the instrument can not guarantee reliable connection to the
ground. The protective earth terminal must be used to connect the instrument to grounding bar.
3.2.6 Mark
This mark describes the serial number of the instrument.
