Topcon A3524 - Overview of Hiper-AG GPS Receiver; Layout of Hiper-AG Front Panel; Functions

4-1
A3525 Rev 1.1
Overview of Map-HP GPS Receiver
Overview of Hiper-AG
GPS receiver
Layout of Hiper-AG Front Panel
Functions
• Power ON/OFF button—To power the Hiper-AG ON or OFF
hold down the Power button for 2 seconds
• GPS Status LED—This light indicates what satellites are
available to the GPS at the current time
Each green ash represents a visible GPS satellite 1.

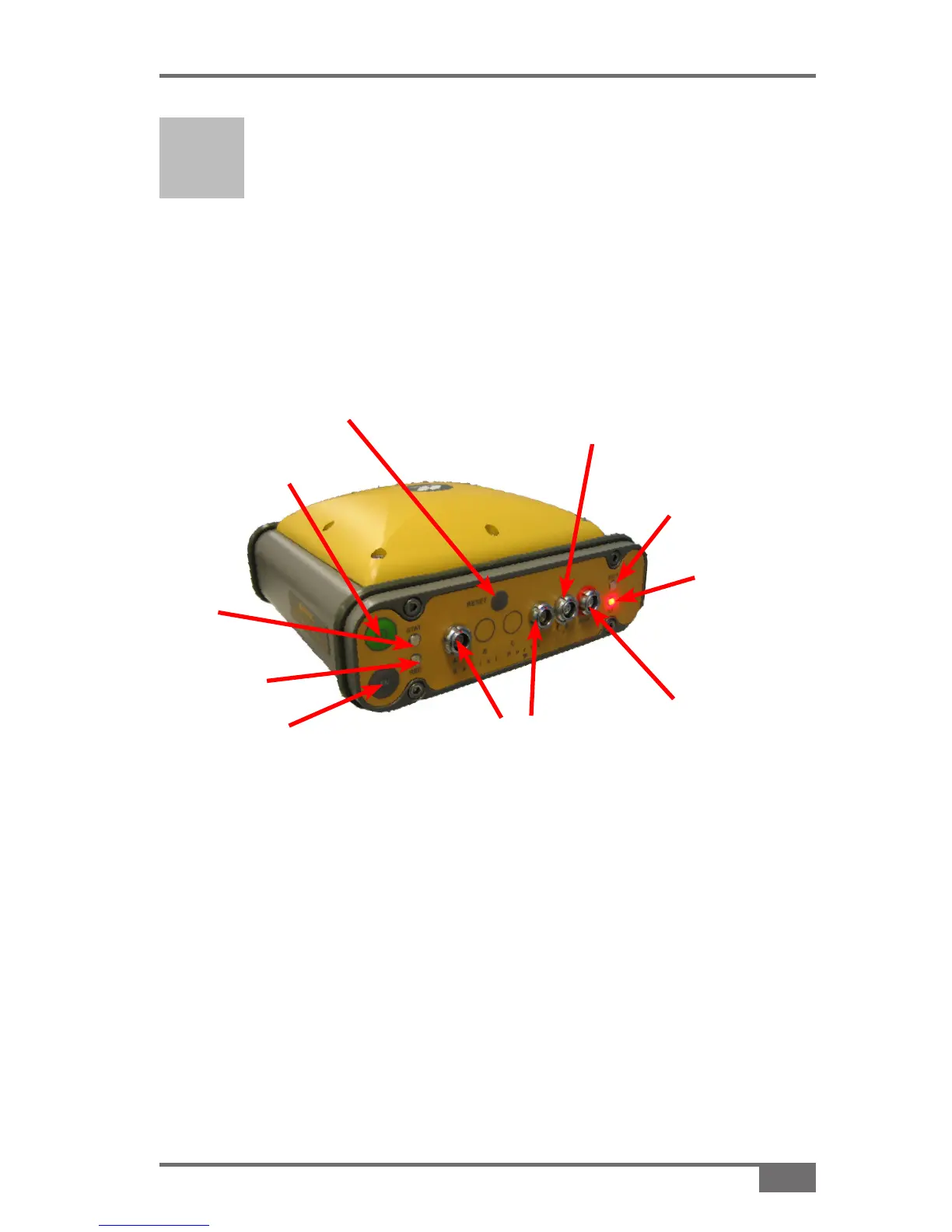

Figure 4-1. Topcon Hiper-AG Layout
Reset
button
Function
(FN) button
Power ON/
OFF button
Battery
(BATT)
Modem/
Receive or
Transmit
(RX)
Status
(STAT)
Data Record
(REC)
External
Power
(PWR) Port
Serial Ports
USB Port (not used)
