Installing Topcon Hiper-AG RTK Mobile Base Station
Connect UHF Antenna
On the back of your Hiper-AG nd the port labeled UHF Antenna.
Connect the UHF antenna onto the Hiper-AG unit (Figure 5-4).

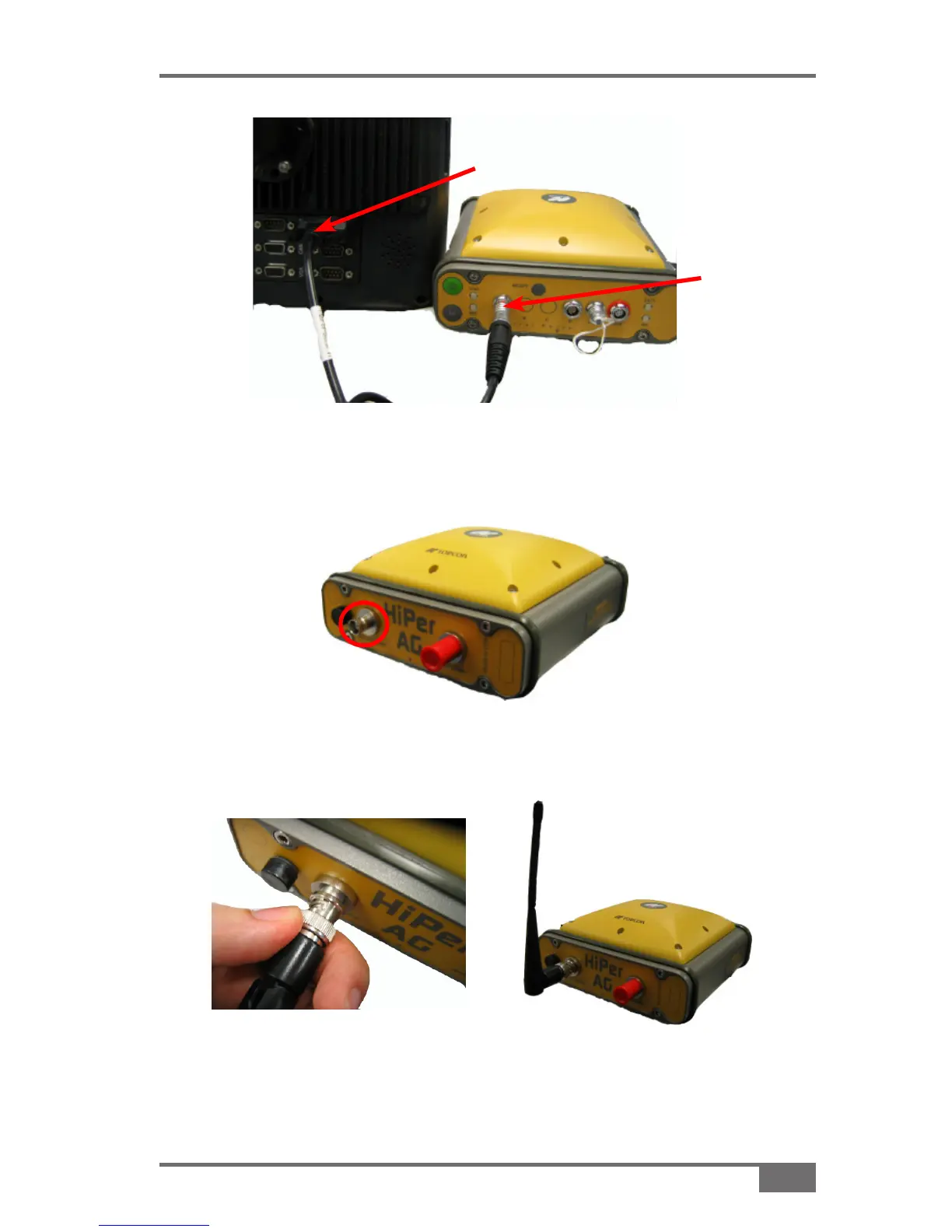

Figure 5-2. Connecting the Communication cable
Figure 5-3. UHF Port
Figure 5-4. Connect the UHF antenna
Communication
Cable:
Connects to
GPS Port
Communication Cable:
Connects to COM 1
