PG-A1 RTK GPS Antenna with Ground Plane
The PG-A1 RTK GPS Antenna (Figure 6-4) is connected to the GPS t-
ting of the Hiper-AG Base (Figure 6-3 on page 6-3) via a 5m cable with
threaded TNC connectors at each end.
Screw the male TNC connector of the cable to the female TNC 1.
connector of the PG-A1
Screw the TNC connector on the other end of the adaptor cable to 2.
the Hiper-AG’s GPS tting (Figure 6-3)

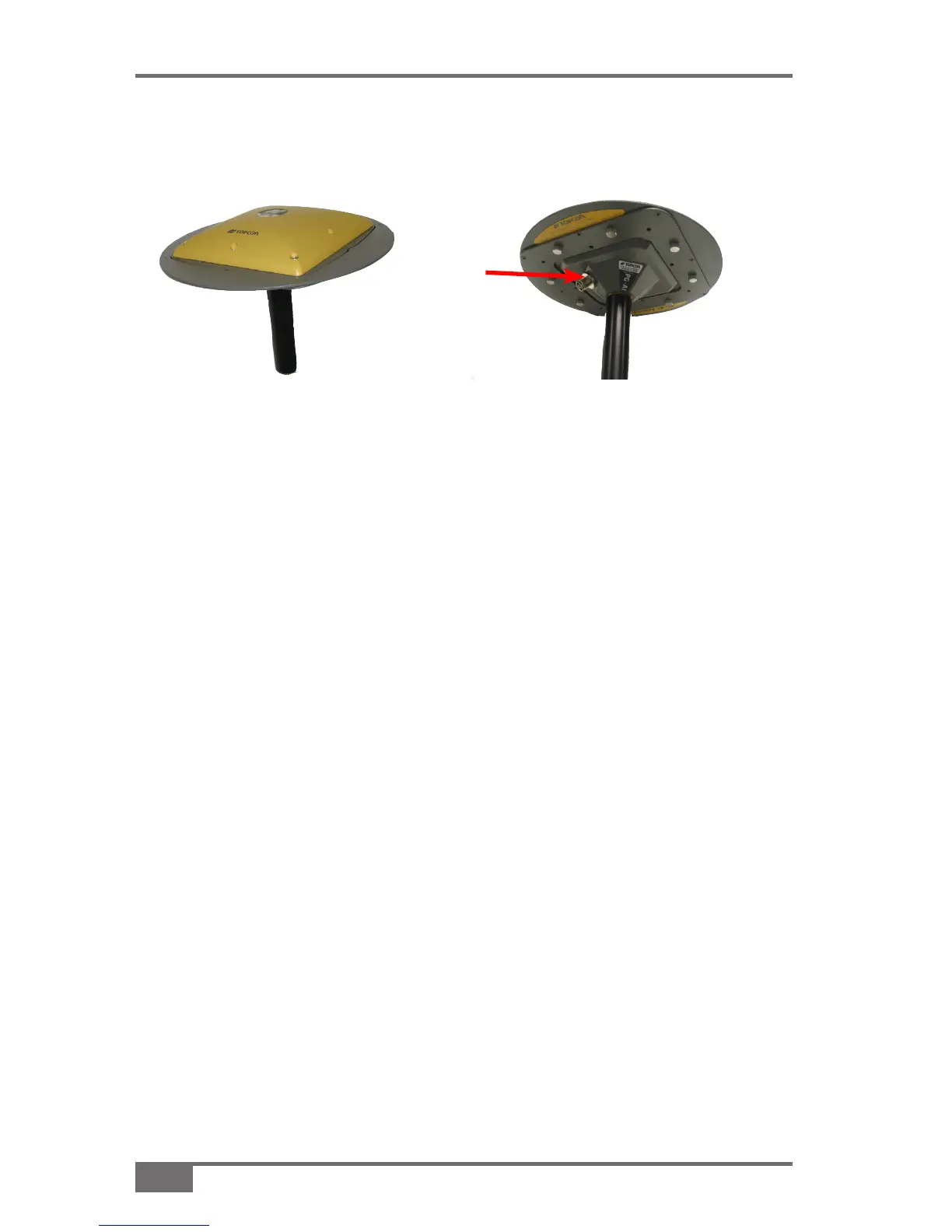

Figure 6-4. PG-A1 RTK GPS Antenna
TNC
Connector
