Topcon A3524 - Add Position to List

7-9
A3524 Rev 1.1
Conguring Topcon Hiper-AG RTK Base Station (Mobile and Fixed)
Add Position to List
Select 1. Add Position to List (Figure 7-12) to
save the current position to the list
The onscreen keyboard (Figure 7-12) will appear.
Give the position a name by typing it into the keyboard (Figure 2.
7-12)
Press 3. OK when you have nished to save the name in the
position list (Figure 7-12).
Once the Base Station position has been saved to the list, it can be

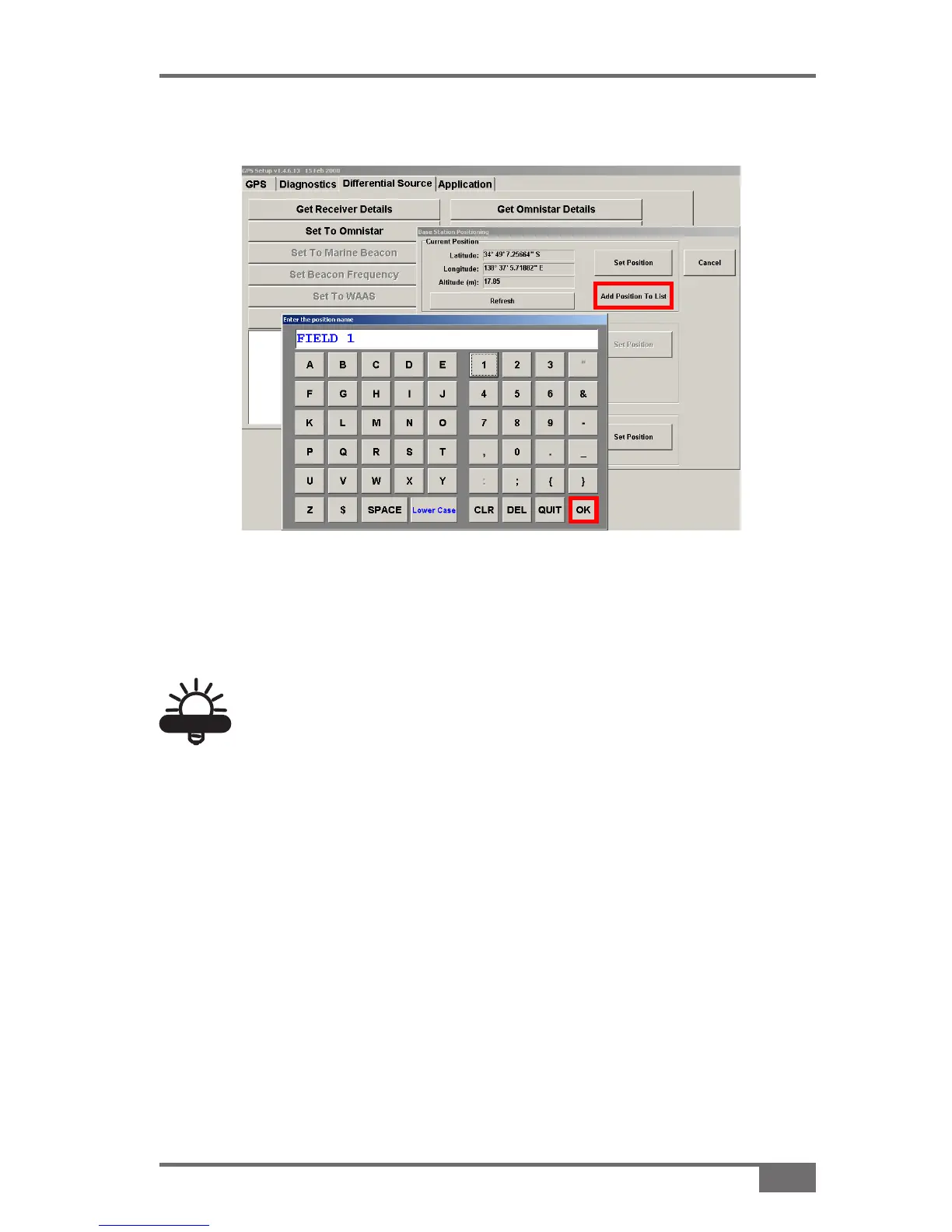

Figure 7-12. Save Current Position to List
TIP
It is advisable to use this option to backup Base
Station location data.
TIP
