Conguration
This conguration is designed to be mounted semi-permanently in a
weather and vermin-proof structure with an external power supply
capable of supplying regulated voltage at maximum power drain.
Mounting Location
The Hiper-AG should be mounted where there is good air circulation
and no chance of moisture ingress.
Using the Hiper-AG as a Mobile Base Station
To use the Hiper-AG as a mobile Base Station remove the UHF Radio
Antenna, and the power source (see “Installing Topcon Hiper-AG RTK
Mobile Base Station”, Chapter 5).

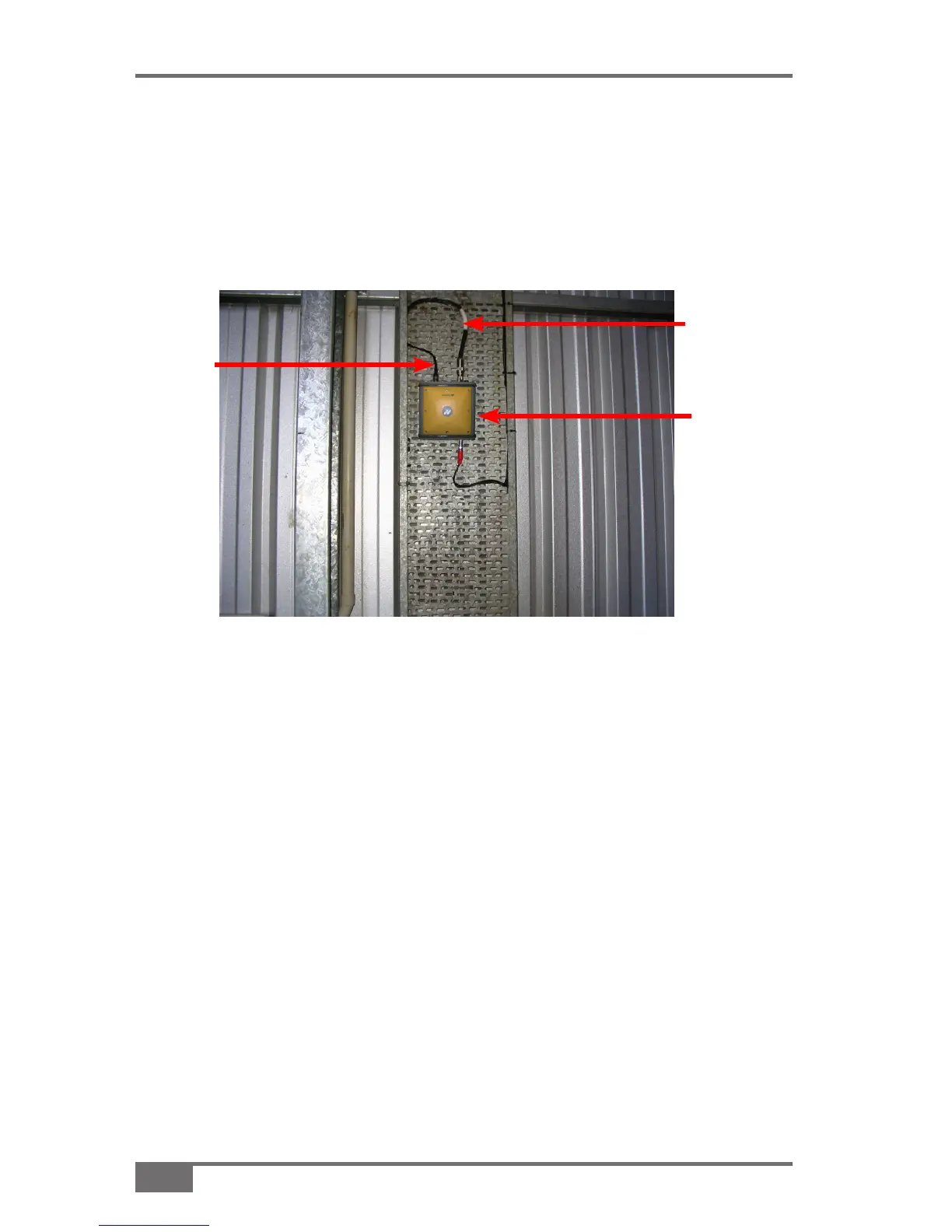

Figure 6-2. Conguration and Mounting
Hiper-AG
unit
To UHF
Antenna
To GPS
Receiver
To Next Page
