Installing Topcon Hiper-AG RTK Fixed Base Station
Lightning Arrestor
The N-350NB Lightning Arrestor safeguards expensive electronic
equipment from damage caused by static electricity and lightning
induced surges, at a budget price.
The ultra-fast gas discharge tube safely shunts up to 5000 amps of
peak impulse current to an independent ground connection.
The N-350NB Lightning Arrestor is for use with externally
mounted antennas and comes with a female to male connector.
This device is inserted inline, to reduce the likelihood of a lightning
strike destroying your GPS equipment.

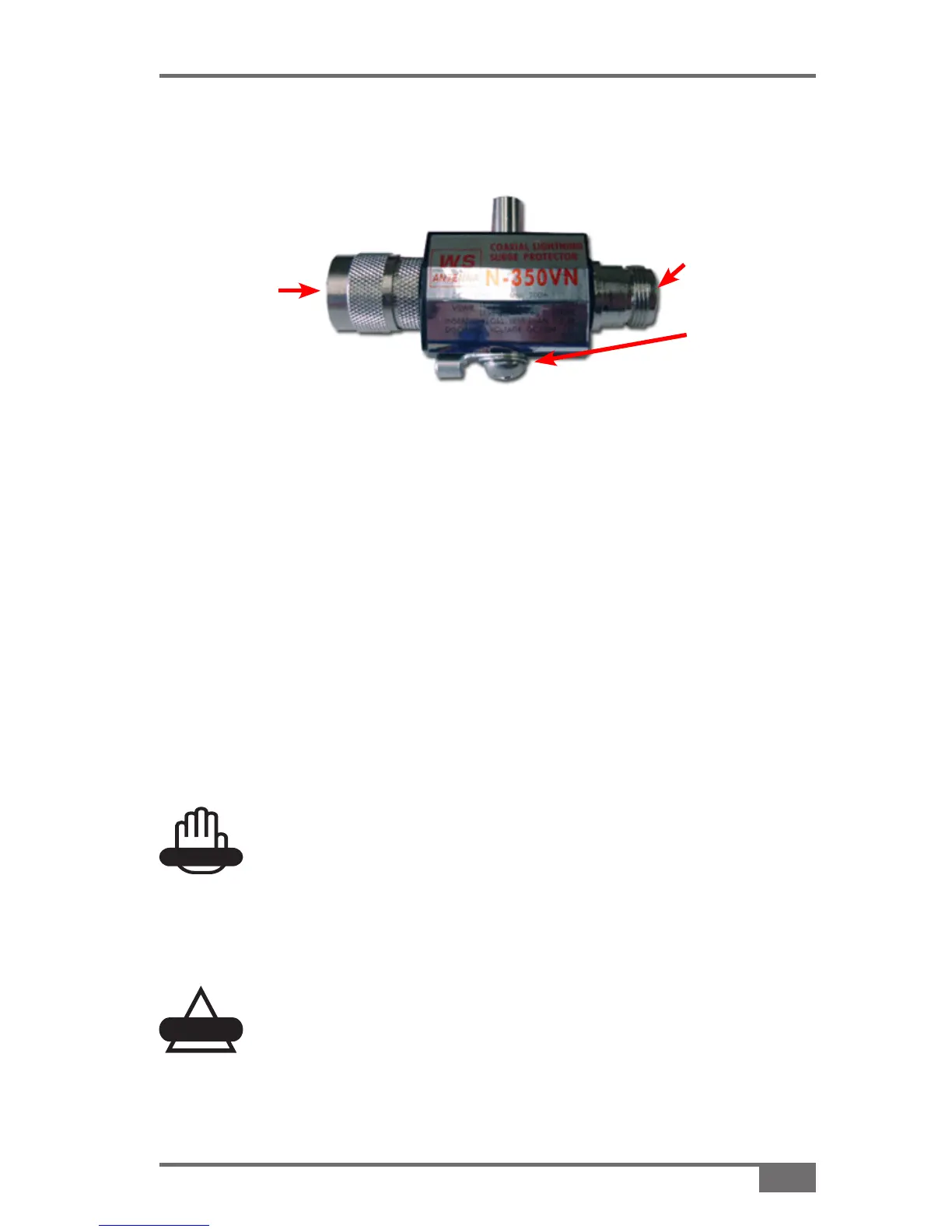

Figure 6-6. N-350NB Lightning Arrestor
Connects to
independent
ground
connection
Connects to
the bottom
of the UHF
Collinear
Antenna
Connects
to RG213
antenna cable
from PA-6
amplifier
WARNING
Failure to connect the Lightning Arrestor will result
in component failure and damage. This will not be
covered by manufacture warranty.
WARNING
CAUTION
Failure to fit the Lightning Arrestor could result in
electrical shock to humans and animals.
CAUTION
