Topcon A3524 User Manual

6-9
A3524 Rev 1.1
Installing Topcon Hiper-AG RTK Fixed Base Station
WARNING
Ensure the GPS Antenna Plate does not sit over
the structure’s roof. This may cause “multi-pathing
of the signal”, which will render the system
unusable.
WARNING

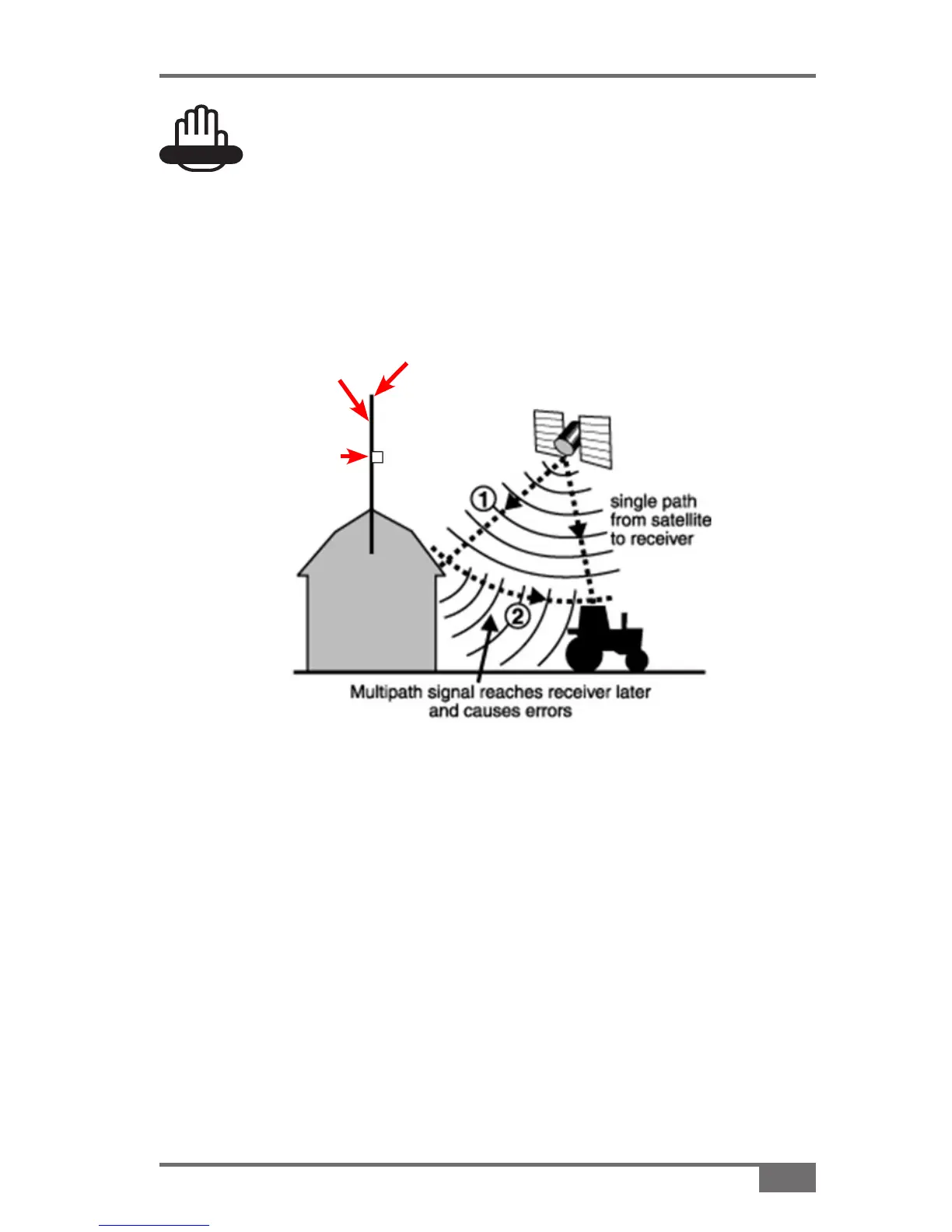

Figure 6-8. Setup of the GPS Antenna
Antenna mast (secured to
one end of the building)
UHF Antenna
RTK GPS Antenna
Figure 6-8 demonstrates the correct setup of the GPS Antenna.
This setup prevents “multi-pathing”. Figure 6-8 shows the:
• RTK GPS antenna mounted above and to the outside of the
building
• UHF Collinear Antenna mounted as high as possible, to gain
range advantage.
