103

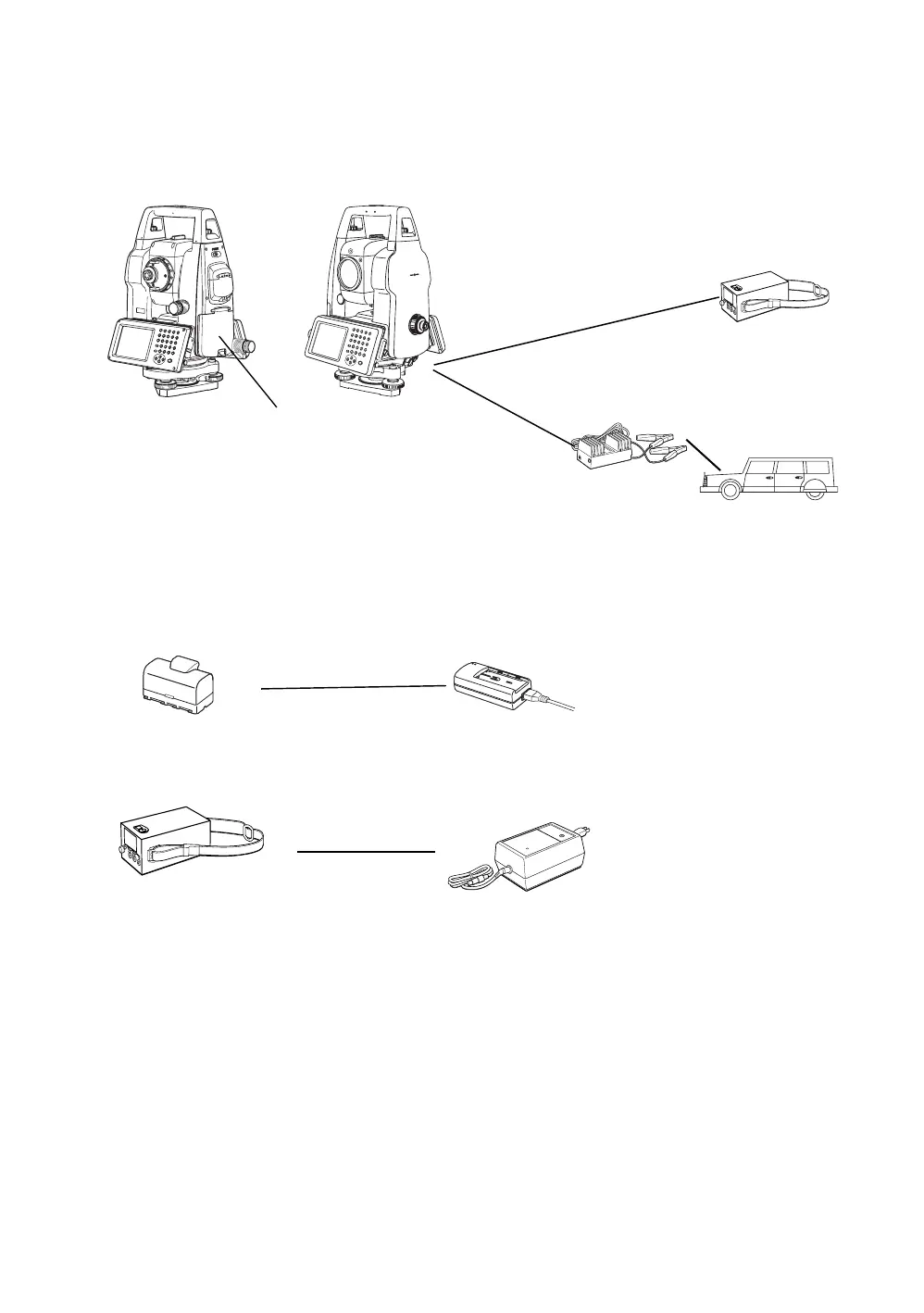

12 BATTERY SYSTEM

In case of On-board battery

In case of External battery

BT-3L

AC-6

Car battery

BT-61Q

GPT-7000i series

BT-3L

BC-6

Normal

for AC 100V / 120V / 220V

/ 240V use

Approx.15h

Charging

BT-61Q

Charging time

BC-30

Quick

For AC100V~240V use

Approx. 4h

PC-5

PC-6

GPT-7000i series

PC-6
