3 STANDARD MEASUREMENT MODE
3 STANDARD MEASUREMENT MODE
3.1 Screen Displays
In the standard measurement mode, the collimation screen is displayed on the display device except
during collimation with the telescope.
The images include a telescopic image and a wide-angle image.
● Telescopic image : An image similar to that obtained by collimation with the telescope is displayed.
● Wide-angle image : An image with a wide-angle is displayed.
3.1.1 Switching between Telescopic Image and Wide-Angle Image
When numeric key [1] is pressed, a telescopic
image appears.
When numeric key [2] is pressed, a wide-angle
image appears.
See section 1.8.1“Operating Key”.
It is also possible to switch between a
telescopic image and a wide-angle image by
tapping the screen.
* The focus of telescopic images is adjusted
with the telescope focusing knob.
STANDARD MEASUREMENT MODE
Angle measurement, Distance measurement, Coordinate measurement .

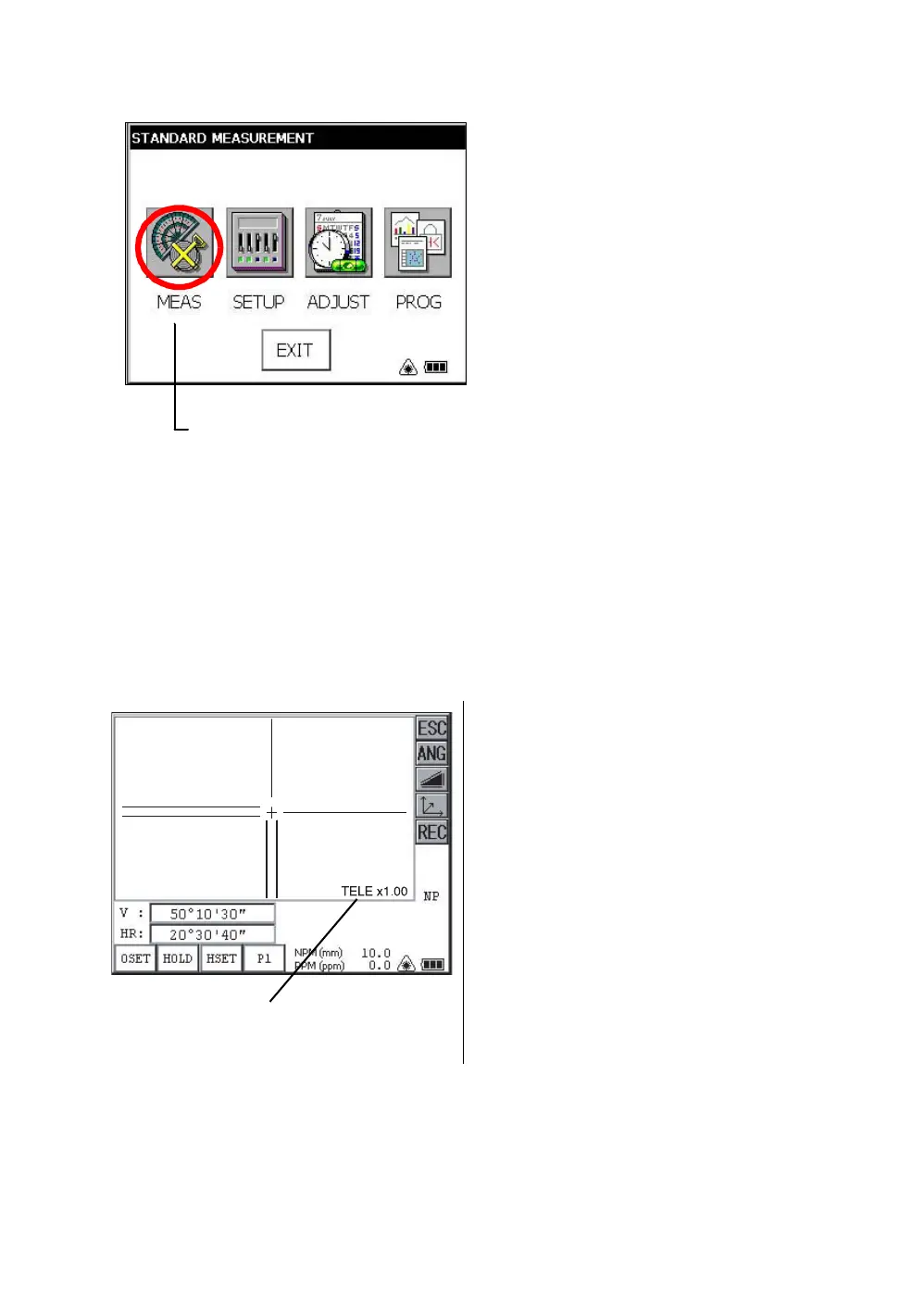

Press the [MEAS] icon.
Displays the current mode.
TELE: Telescopic image
WIDE: Wide-angle image
To Next Page
