1 NOMENCLATURE AND FUNCTIONS
1.2 Display
1.2.1 Main Menu Contains
The main menu contains as following items.
Select the menu by pressing icons.
PROGRAM MODE ( APPLICATION MEASUREMENT)
(see the instruction manual of [PROGRAM MODE])
ADJUSTMENT MODE
This mode is used for checking and adjustment.
● Error of vertical angle 0 datum
● Setting instrument constant value
● Compensation systematic error of Instrument
● Checking the Optical Axis
● Adjustment of cross-hairs on telescopic image
(see Chapter 5 “CHECK AND ADJUSTMENT” )
PARAMETERS SETTING MODE
This mode is used for follows
● Setting measurement
● Setting communication
● Value input
● Setting unit
The PARAMETERS SETTING MODE settled is
memorized even power is off.
(see Chapter 4 “PARAMETERS SETTING MODE” )
STANDARD MEASUREMENT MODE
This mode is used for follows
● Angle measurement
● Distance measurement
● Coordinate measurement
(see Chapter 3 “STANDARD MEASUREMENT MODE” )

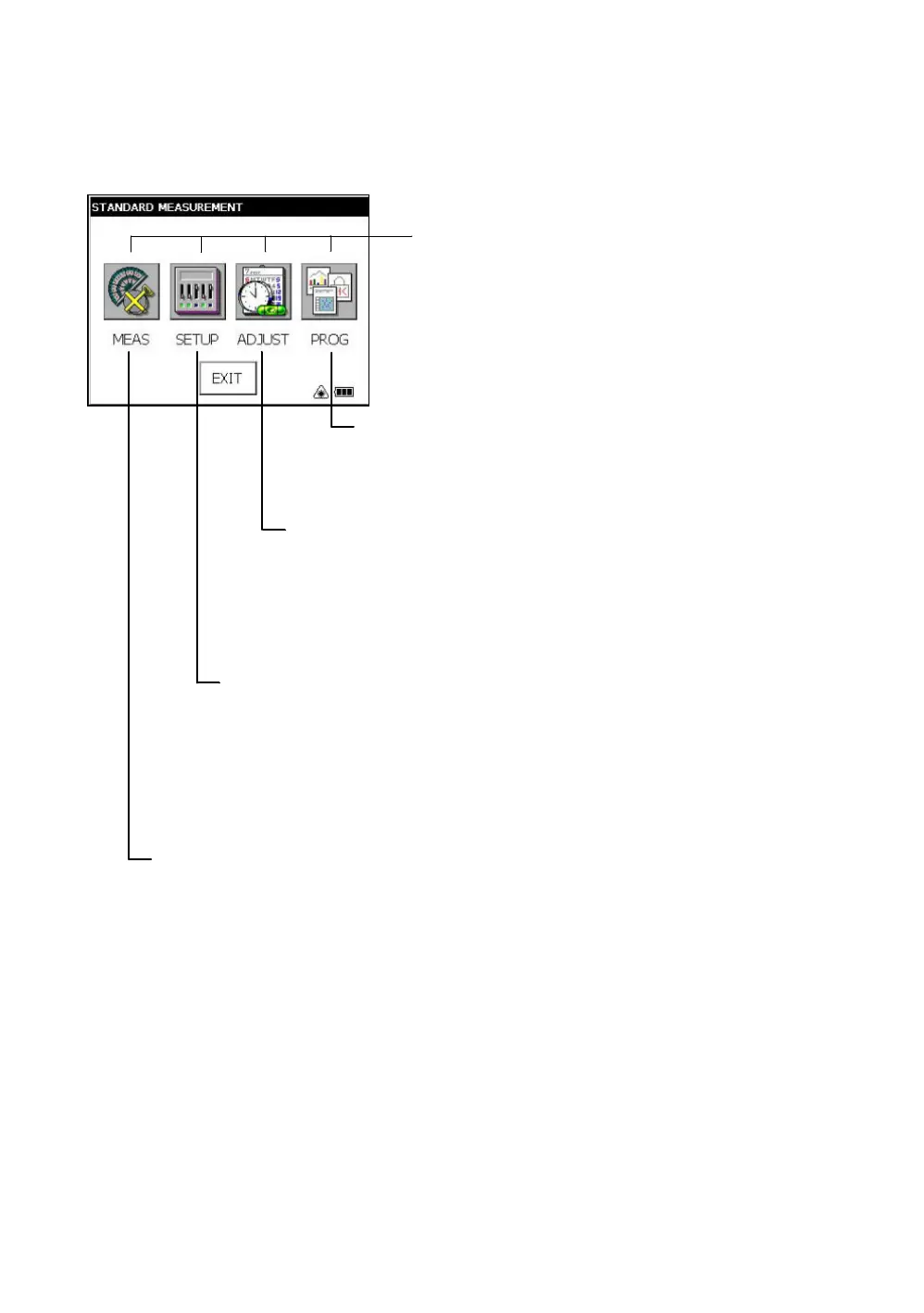

Display icon
