9.1 On-board Battery BT-61Q
● To r em ove
1 Pull the battery cover lever and open the cover.
2 Remove the battery.
● To charge
1 Connect the AC-Cable to the charger.
2 Plug the AC-Plug into the outlet. (The POWER LED will light.)
3 Attach the battery in the charger. Charging will start. (The CHARGE LED will light.)
Charging will take approximately 4 hours. (The CHARGE LED will go out.)
4 After charging, remove the battery from the charger.
Remove the charger from the outlet.
The POWER LED
Red ON : Power is on.
The CHARGE LED will indicate charging status;
On Solid : Wait for charging.
Red ON : Charging.
On Solid : Charging completed.
Red Flashing : Charging error.
CHARGE LED will flash when the battery life is over or the battery is
broken down. Replace the battery to new one.
● To install
1 Place the battery to the instrument.
2 Shut the battery cover until click sound can be heard.

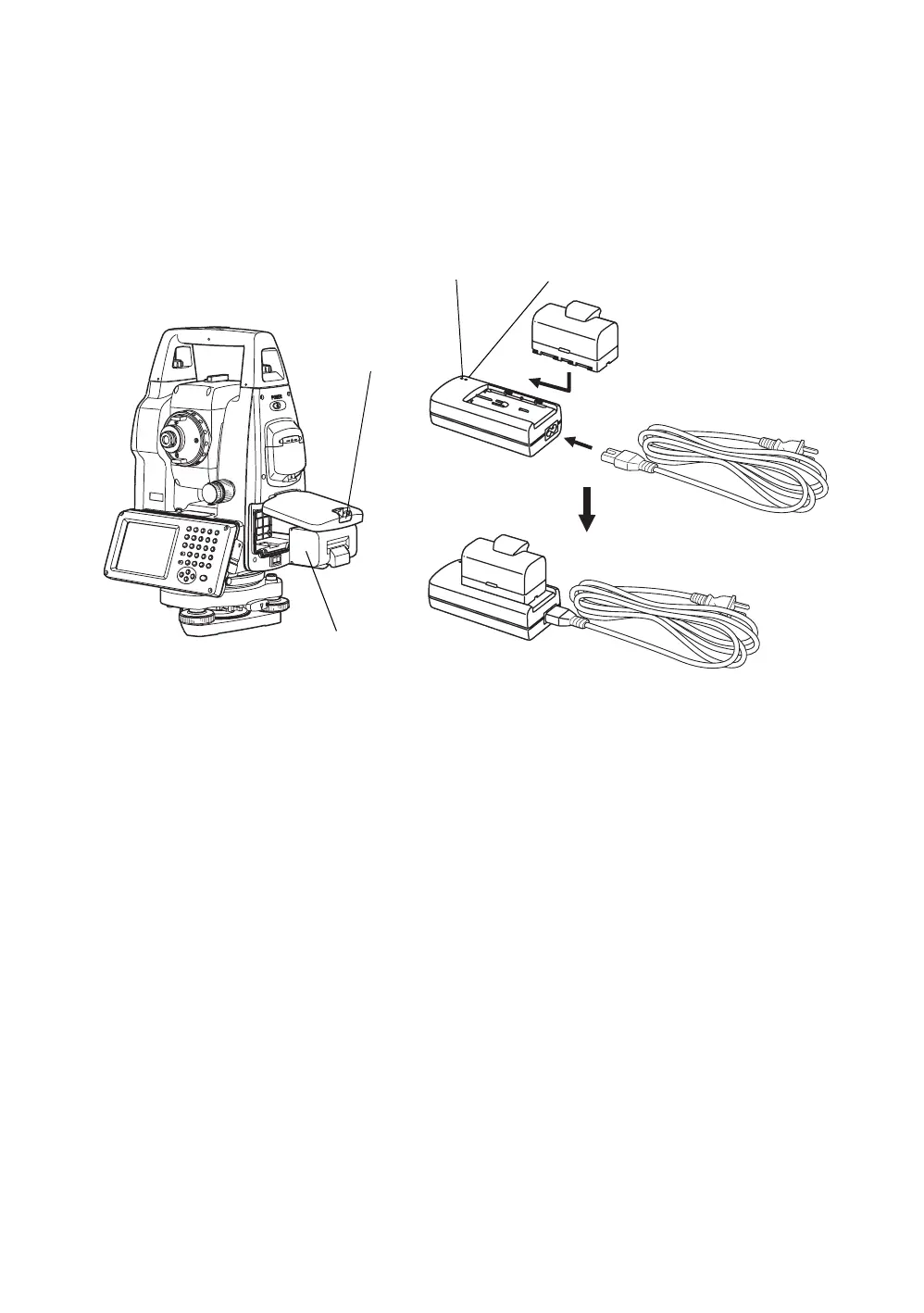

BT-61Q
BC-30
AC-cable
Battery cover lever
Battery
POWER LED
CHARGE LED
