7. APPLIED OPERATIONON
9. Press key to adjust the grade of the laser beam and
align with the datum position for the LS-80X.
The length of time the arrow key is pressed will change the speed
at which the laser beam grades. (The speed will change from low to
high speed.) For Y-axis grading, follow steps 7 to 9 using
keys.

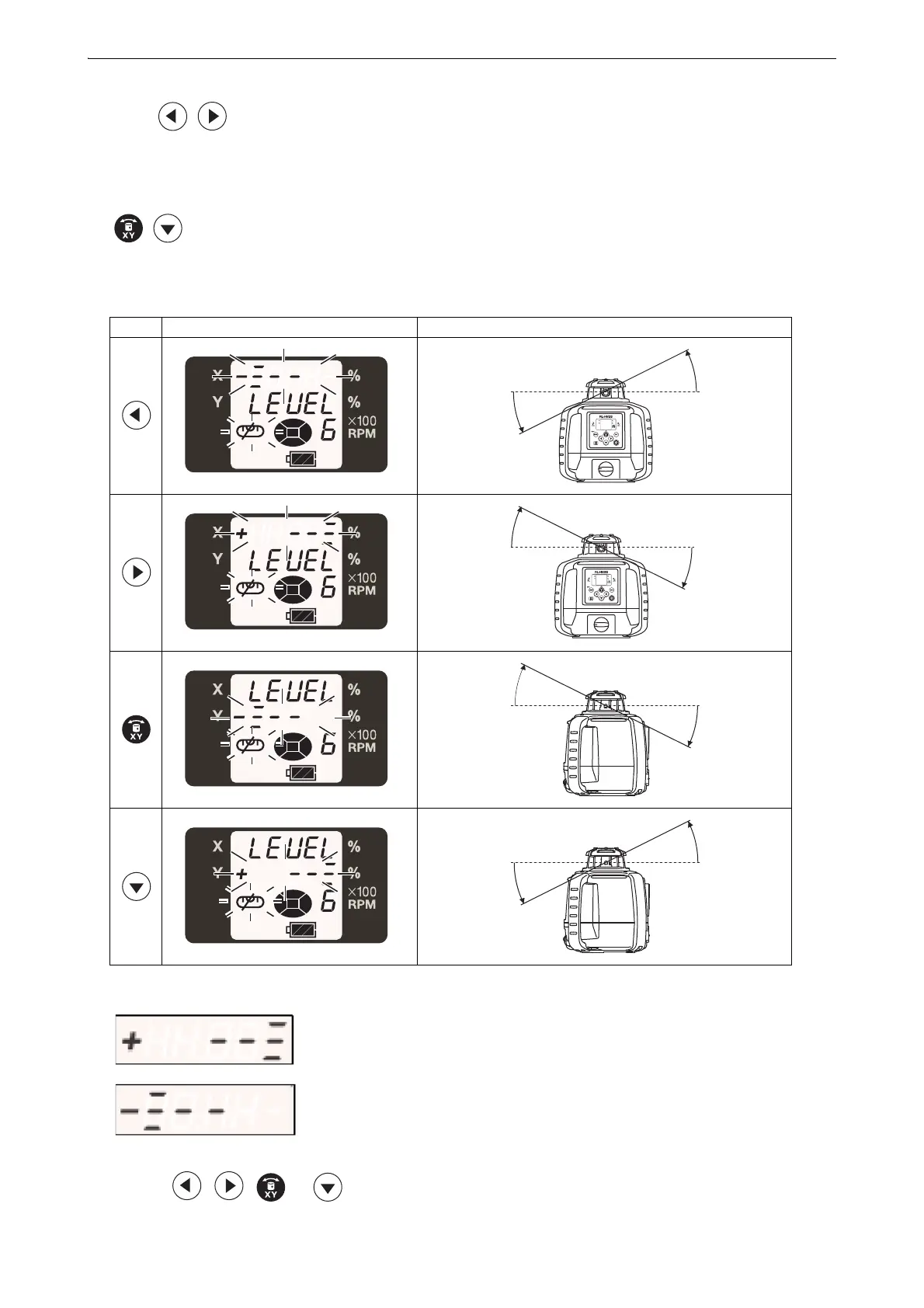

Grading direction of the laser beam during arrow key operation
*Display during arrow key operation

• When the , , or key is pressed, the laser beam will emit even if self-leveling starts.
• This mode can be used with "Laser Manager".
Key Display* Grading direction of the laser beam
X-
X-
X+
X+
Y-
Y-
Y+
Y+
The laser beam is moving in the X (Y) + direction.
The laser beam is moving in the X (Y) - direction.
