Part 2 Wiring Installation Instruction
2.1 System Wiring Diagram
PC
U-DISK
EX5V
EX5V
XGND
IN-5
XGND
OUT6 OUT5
OUT2 OUT1 EX5V
IN-2 IN-3 IN-4
XGND
EX5V
EX5V
PWM4
DIR4
XGND
IN 6
GND
+5V
EX5V
PWM3
DIR3
XGND
IN 1
LASER-2 LASER-1
EX5V
XGND
IN10
IN-7 IN-8 IN-9
EX5V
XGND
IN11 IN12 IN13
EXV+
EXV-
OUT7 OUT8 EX5V
XGND
PWM6 DIR6 EX5V
XGND
PWM5 DIR5 EX5V
XGND
PWM2 DIR2 EX5V
XGND
PWM1 DIR1
X-DRIVERY-DRIVERZ-DRIVERV-DRIVER
DIR PUL EX5V
TL-403C
HANDSET
NETWORK
Air Control
Pen Control
5V Relay
5V Relay
EX5V
DIR PWM DIR PWM
- - + +
DIR PWM DIR PWM
- - + +
DIR PWM DIR PWM
- - + +
DIR PWM DIR PWM
- - + +
Axis V Driver
(Laser head2 motor)
Axis Z Driver
(Feeding motor)
Axis Y Driver
(Y motor)
Axis X Driver
(X motor)
U-DRIVER
V Origin Limit Z Origin Limit U Origin Limit
Cover Protect
Foot Switch
X Origin Limit Y Origin Limit
PWM DIR PWM DIR
- - + +
Mechanical
Switch
DC 5V/3A
DC 5V/3A
Water Protect
Water Protect
TH
TL
WP
G
IN
5V
Two way
switch
RP100R
CO2
Laser
power
1
TL
G
IN
CO2
Laser
power
2
Axis U Driver
(Lifting motor)
Control
damper
Control
damper
Auto
Manual
Y Up Limit X Up Limit
5V
o
0V
Optoelectronic
Switch

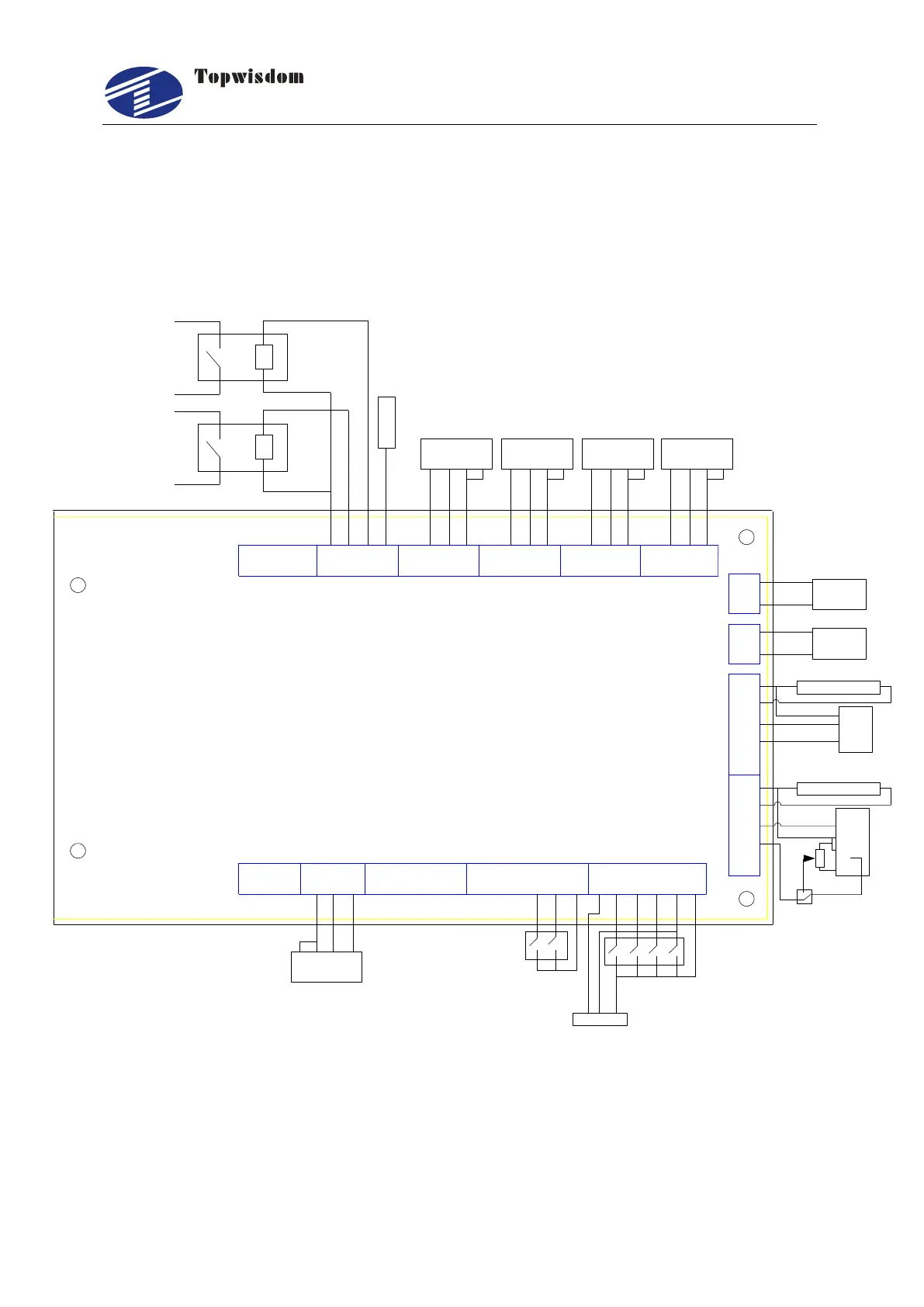

Fig. 2-1
