Topwisdom TL-403 - 2.4 Interface Instruction; 2.4.1 Power Signal

泰智科技
Shenzhen Topwisdom Technology Co., Ltd
13
XGND
IN-5
IN-4
IN-3
IN-2
EX5V
0V
OUT
5V
J3

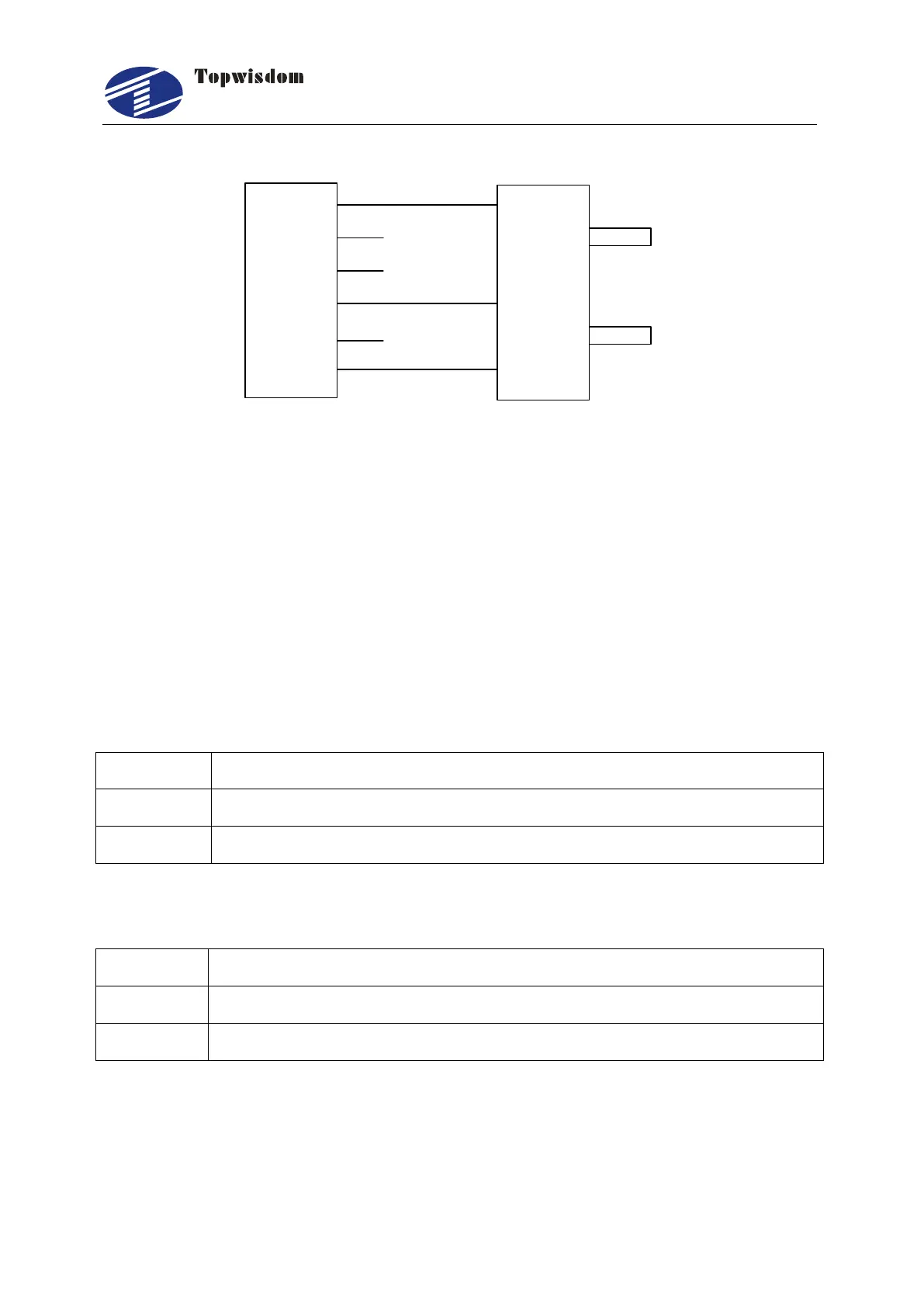

Photoelectric limit switch
X Origin limit switch
Fig. 2-13
Other limit switch wirings are similar.
2.4 Interface Instruction
2.4.1 Power Signal
 The system is dual 5V power supply
 The system internal 5V power interface J24 (switching power interface)
Pin
Definition
1
+5V Internal 5V power source positive (input)
2
GND Internal 5V power source grounding (input)
 The system external power interface J23 (switching power interface)
Pin
Definition
1
EX5V External 5V power source positive (output)
2
XGND External 5V power source grounding (output)
