12
The wiring of laser 2 is similar.
Note：When “RF1 or RF2” is selected, please set the PWM Frequency according
to the data sheet of the laser. Generally, PWM Frequency is 5000Hz. And set the
Laser Max parameter not larger than 95%, especially not to set as 100%,
otherwise it works improperly.

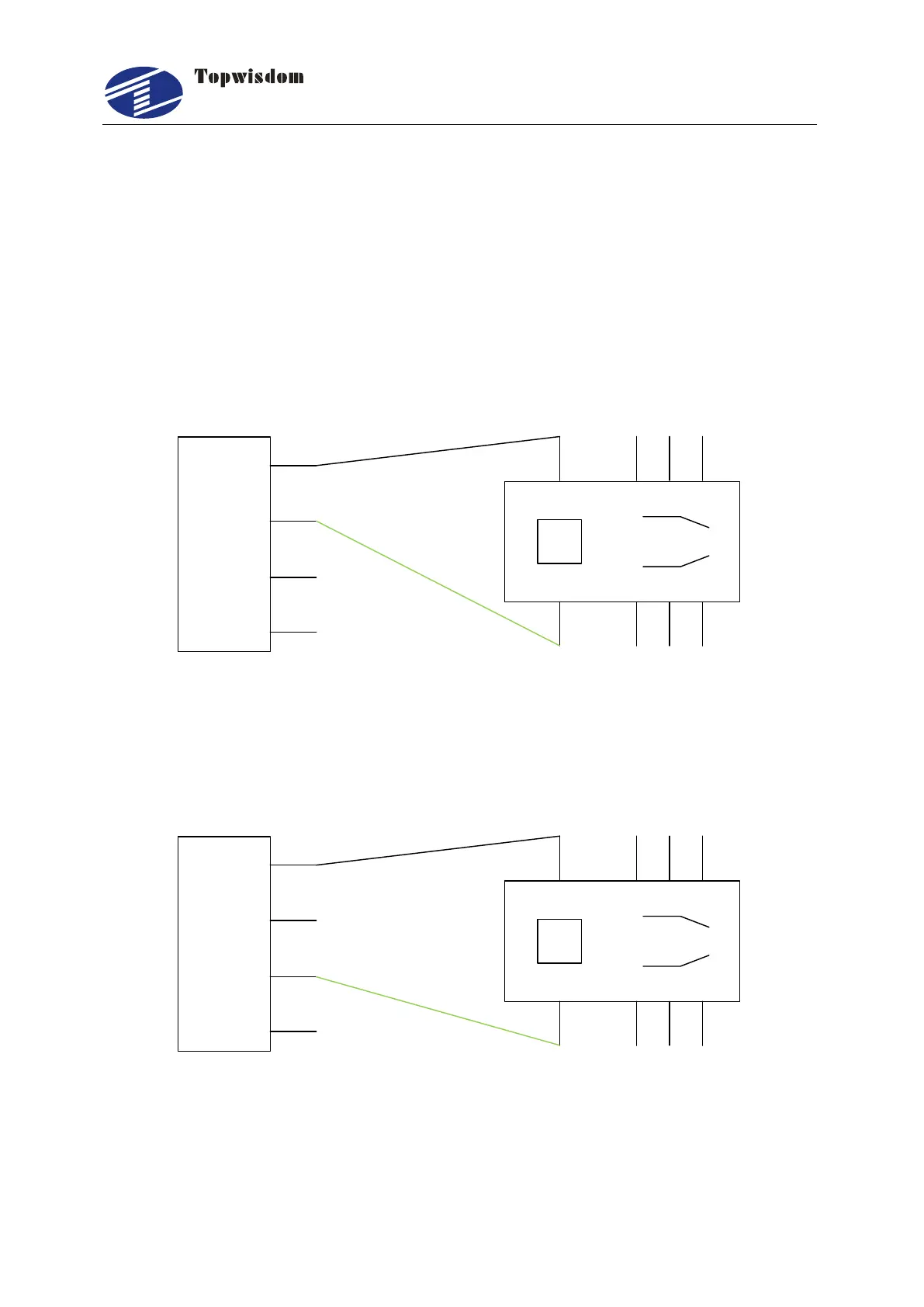

2.3.2.3 Blowing Air Signal Wiring
EXV-
OUT8
OUT7
EXV+
J9
5V/24V Relay
5V+/24V+
Fig. 2-11
2.3.2.4 Pen UP/Down Signal Wiring
EXV-
OUT8
OUT7
EXV+
J9
5V/24V Relay
5V+/24V+
Fig. 2-12
2.3.2.5 Limit Switch Signal Wiring
