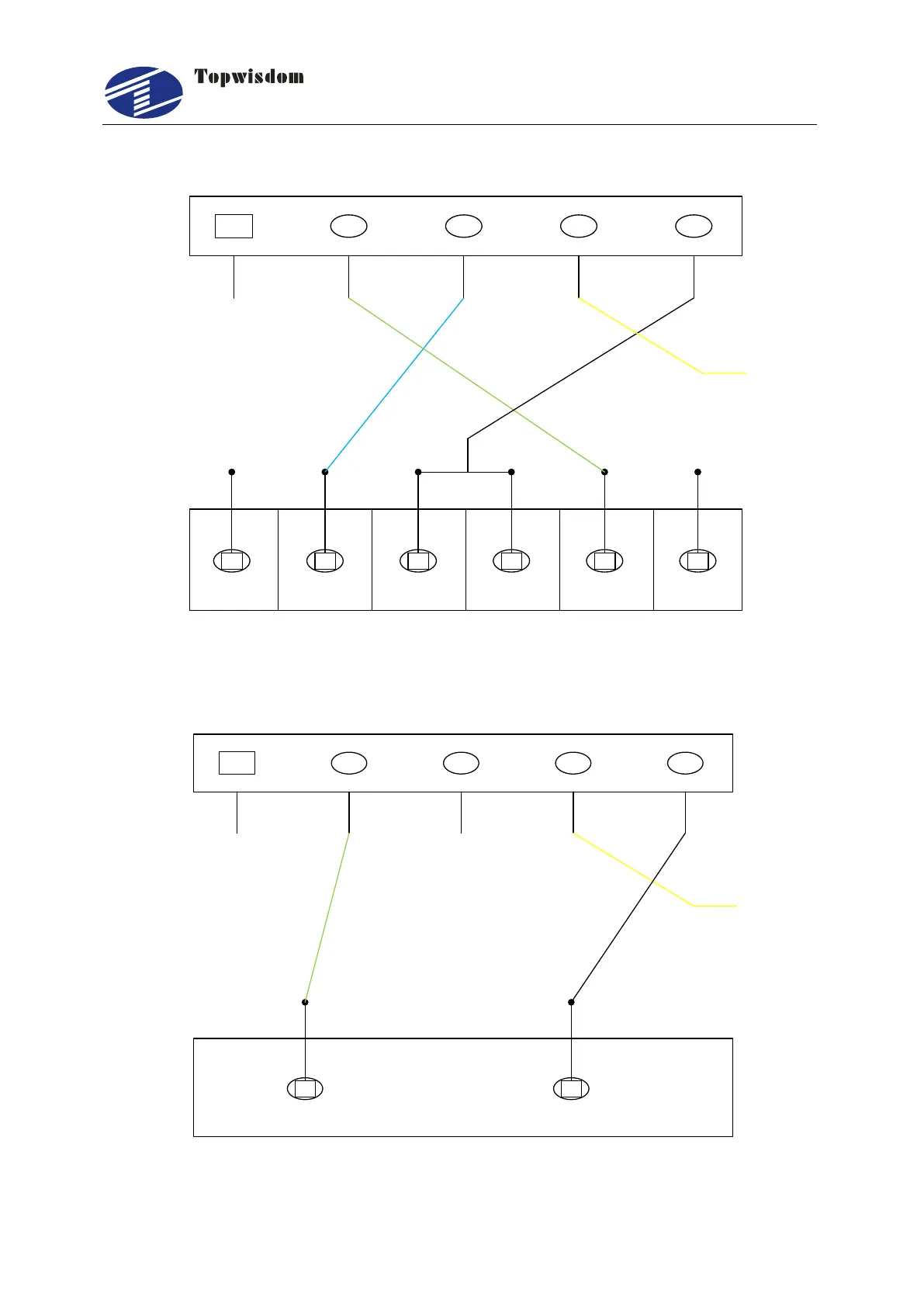

1. CO2 Laser Power Supply Wiring
TTL-H TTL-L WP GND
DAC
1 3 4 5 62
Water Potect
EX5V PWM3 DIR3 IN-1 XGND
J2
Laser
Power
Supply
Active low
Fig. 2-9
2.RF Laser Wiring
Power
Water Protect
EX5V PWM3 DIR3 IN-1 XGND
J2
Laser
Power
Supply
GND
Fig. 2-10
