泰智科技
Shenzhen Topwisdom Technology Co., Ltd
6
2.2 Installation Dimension
2.2.1 Panel

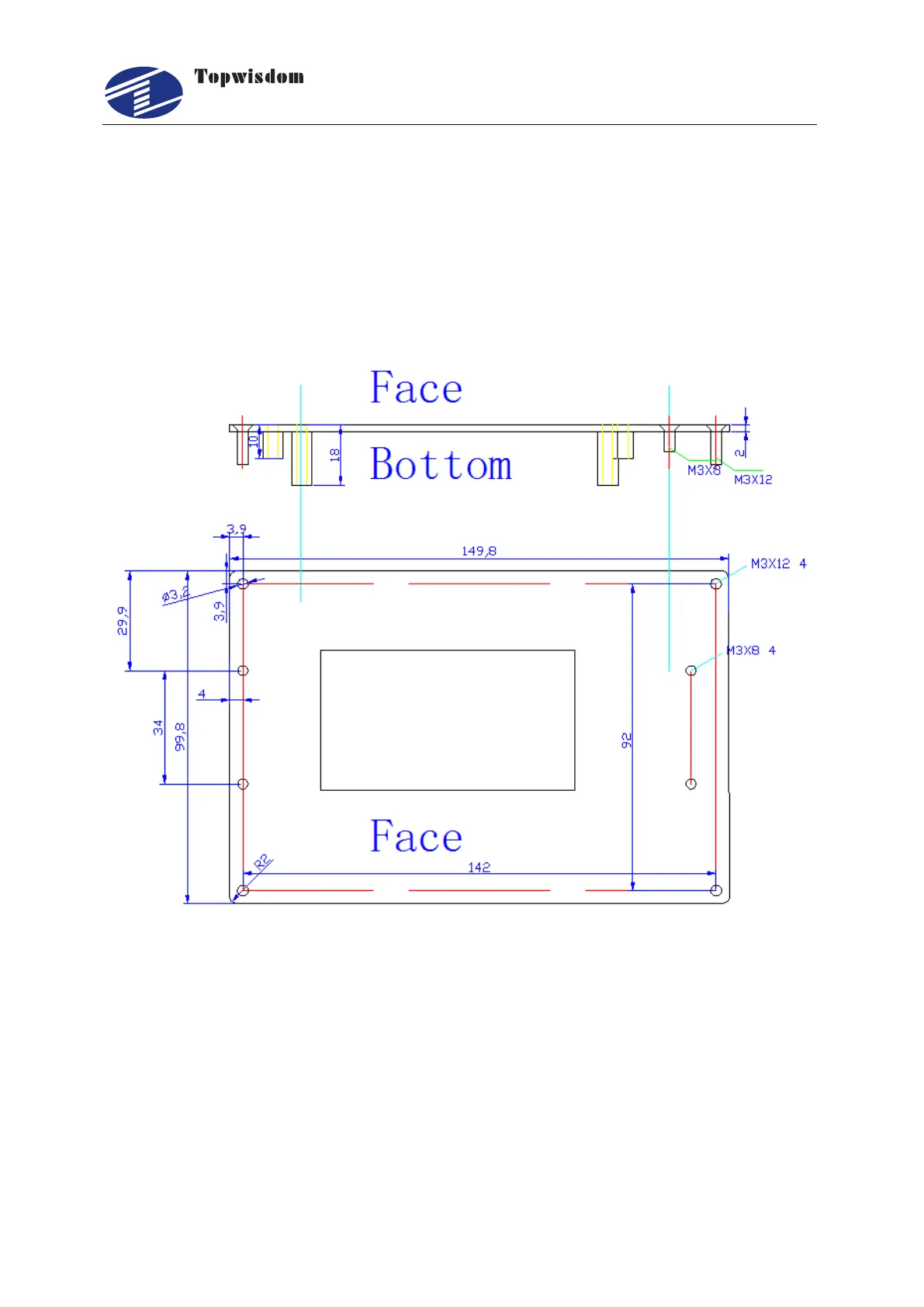

The installation dimension of operation panel (the unit is MM):
Face:
Fig. 2-2
Bottom:
