12. T orque the pump bolts to 68 N∙m (50 ft-lb).
13. Install the bottom shield.
Controls System
Maintenance
Adjusting the
T raction-Control Alignment
The factory adjusts the traction controls before
shipping the machine. However , after many hours
of use, you may need to adjust the traction-control
alignment, the neutral position of the traction control,
and the tracking of the traction control in the full
forward position.
Important: T o adjust the controls properly ,
complete each procedure in the order listed.
Adjusting the T raction-Control
Reverse Position
If the traction control bar does not rest ush and
square with the reference bar when in the full
reverse position, immediately complete the following
procedure:
1. Park the machine on a level surface, engage
the parking brake (if applicable), and lower the
grinder .
2. Shut of f the engine and remove the key .
3. Pull back the traction control so that the front of
the control contacts the reference bar ( Figure
48 ).

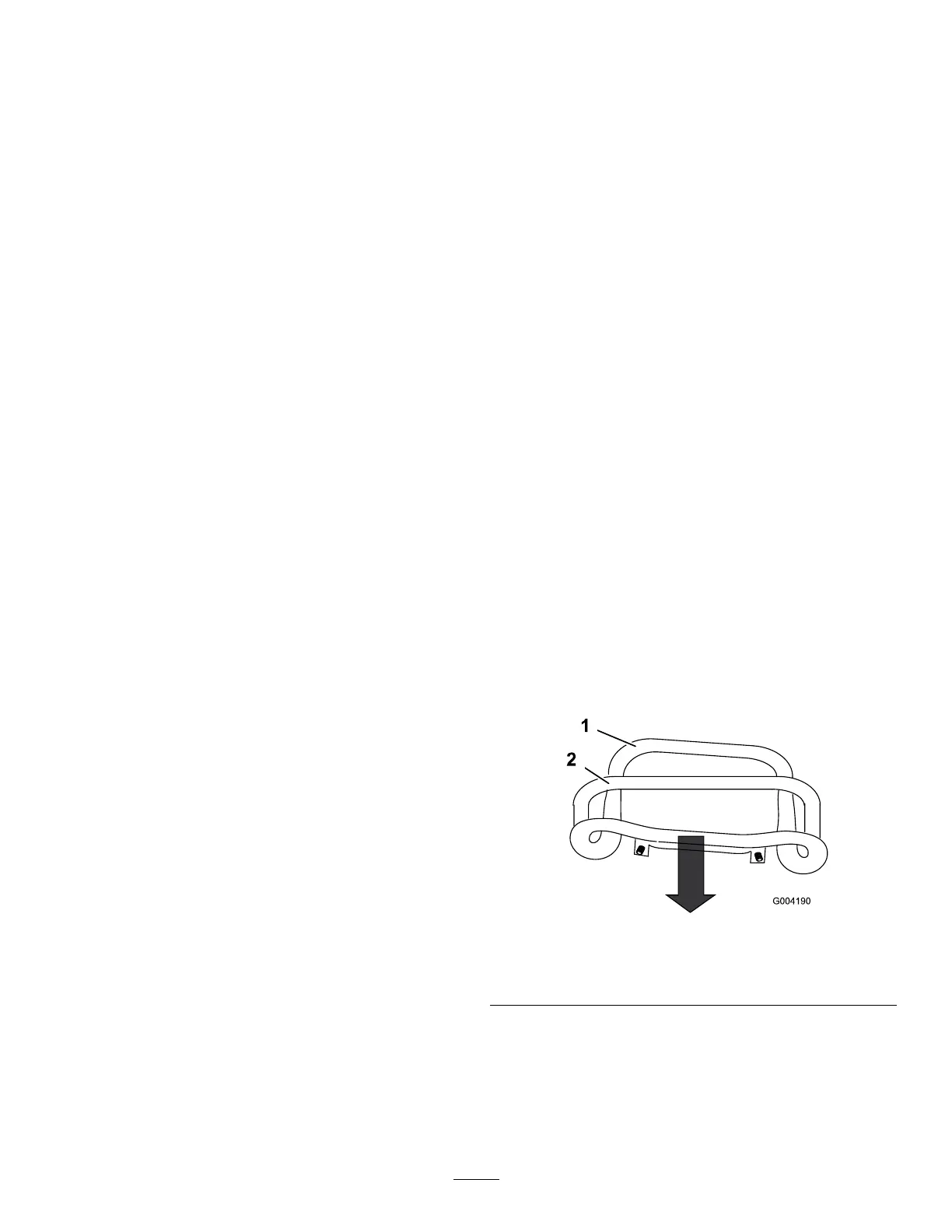

g004190
Figure 48
1. Front of the control (out of
alignment)
2. Reference bar
4. If the front of the traction control does not rest
square and ush with the reference bar , loosen
the nut and bolt in the stem of the traction control
( Figure 49 ).
