ProductOverview

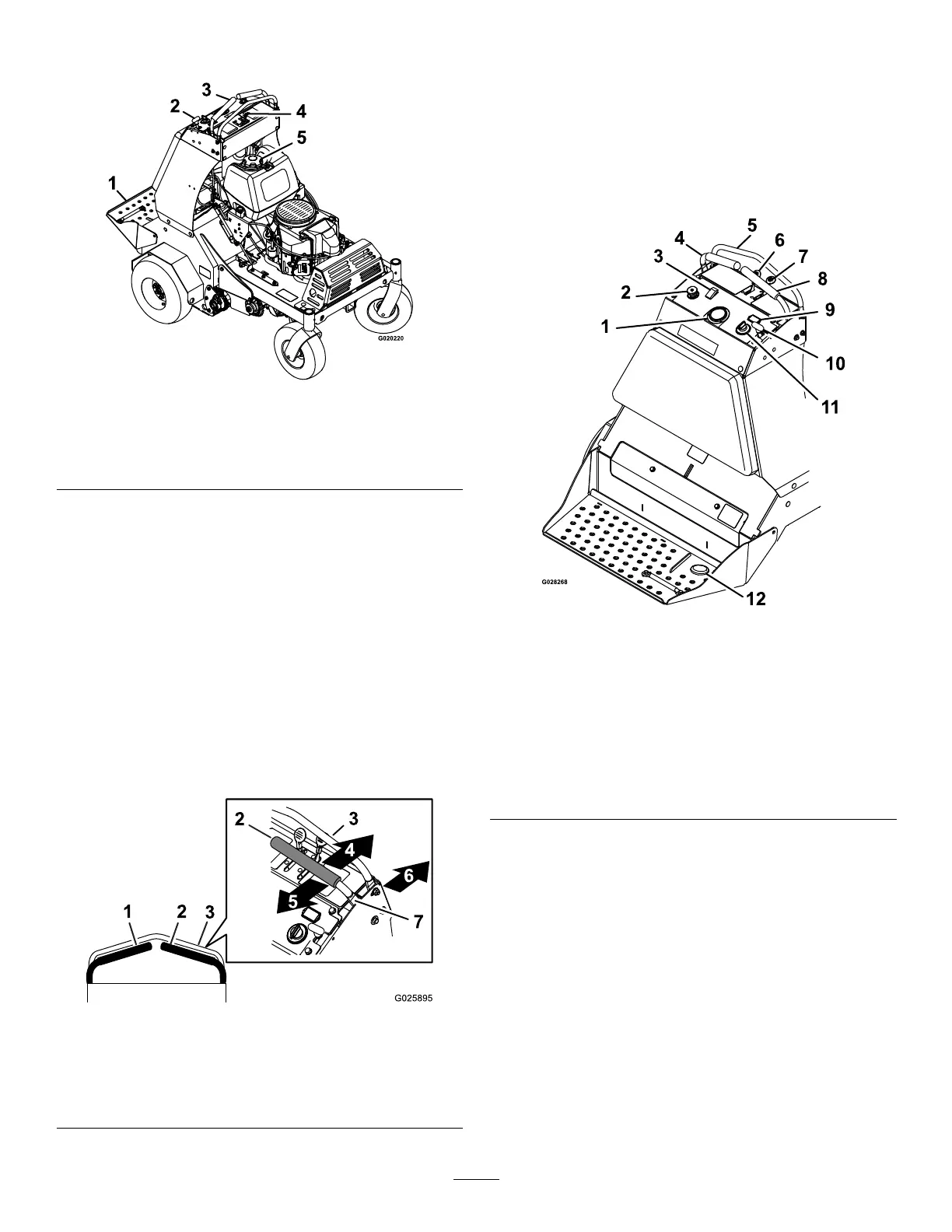

Figure6
1.Platform
4.Enginecontrols
2.Parking-brakeknob5.Fuelcap
3.Traction-controllevers
Controls
Traction-ControlLevers
Thetraction-controlleversarelocatedoneachsideofthe
topconsole,andcontroltheforwardandreversemotionof
themachine.
Movetheleversforwardorbackwardtocontrolthedrive
wheelonthesamesideforwardorreverserespectively.The
wheelspeedisproportionaltotheamounttheleverismoved.
Important:Thetinesrotatewhenthetraction-control
leversaremovedoutoftheNeutralposition.
Figure7
1.Lefttraction-controllever
5.Reverse
2.Righttraction-controllever
6.Frontofthemachine
3.Frontreferencebar
7.Neutral
4.Forward
Tine-PressureControl
Thetine-pressurecontrolislocatedontheleftsideofthe
controlconsole(Figure8).
Usethetine-pressurecontroltoadjustthedownward
pressureonthetinesandcoredepth.Rotatethecontrol
counterclockwisetodecreasethepressureandthelengthof
theaerationplug;rotateclockwisetoincreasepressureand
increasethelengthoftheaerationplug.
Figure8
1.Tinedownpressuregauge
7.Choke
2.Tinedownpressure
control
8.RHMotioncontrollever
3.On/Off-Tineground
engagementfootswitch
9.Hourmeter
4.LHMotioncontrollever10.Parkbrake
5.Frontreferencebar
11.Ignitionswitch
6.Throttle12.Tinegroundengagement
footswitch
ThrottleLever
Thethrottlelever(Figure8)islocatedonthecontrolconsole
(redlever).
Toincreaseenginespeed,movethethrottleleverforward.To
decreaseenginespeed,movethethrottleleverbackward.
Note:Movethethrottleleverforwardintothedetentfor
fullthrottle.
ChokeLever
Thechokelever(Figure8)islocatedonthecontrolconsole
(blacklever).
Usethechokeleverisusedtoaidinstartingacoldengine.
TosetthechoketotheONposition,movethechoke
14
