Toro 30280 - Adjusting the Anti-Scalp; Rollers; Adjusting the Handle Height

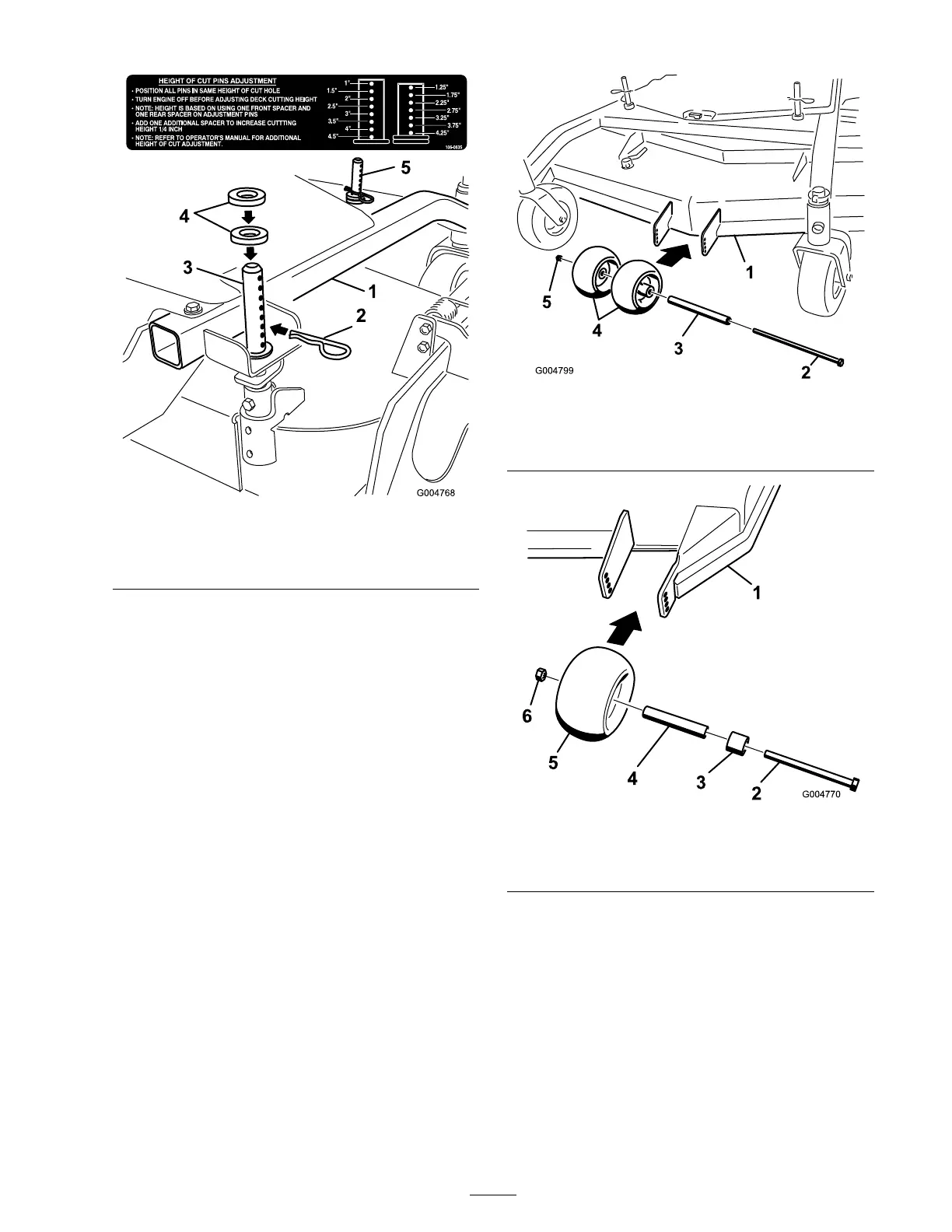

Figure 13
1. Carrier Frame
4. Spacers
2. Hairpin Cotter
5. Front height-of-cut post
3. Back height-of-cut post
Adjusting the Anti-Scalp
Rollers
T he anti-scalp rollers need to be adjusted in
the proper hole location for eac h height-of-cut
position. T here needs to be 3/8 inc h (10 mm)
minim um clearance abo v e the g round.
Note: If the anit-scalp rollers are adjusted too
lo w it can cause ex cess w ear of the rollers .
1. After adjusting height-of-cut, c hec k the
anti-scalp rollers so that there is a minim um of
3/8 inc h (10 mm) clearance abo v e the g round
( Figure 14 , Figure 15 ).
2. If adjustment is needed, remo v e the bolt,
w ashers and n ut ( Figure 14 , Figure 15 ).
3. Select a hole position so the anti-scalp rollers
are a minim um of 3/8 inc h (10 mm) off the
g round ( Figure 14 , Figure 15 ).
4. Install the bolt and n ut ( Figure 14 , Figure 15 ).
Figure 14
1. Mower deck 4. Anti-Scalp Rollers
2. Bolt
5. Nut
3. Spacer
Figure 15
1. Mower deck 4. Bushing
2. Bolt 5. Anti-Scalp Rollers
3. Spacer 6. Nut
5. In cer tain mo wing conditions and ter rain,
a mismatc h of cutting height ma y be seen.
Adjusting the outside anti-scalp rollers to the
minim um setting of 3/8 inc h (10 mm) will help
prev ent the mo w er dec k cutting too lo w on the
outside and minimize the mismatc h.
Adjusting the Handle Height
T he handle position can be adjusted to matc h the
operator’ s height preference .
