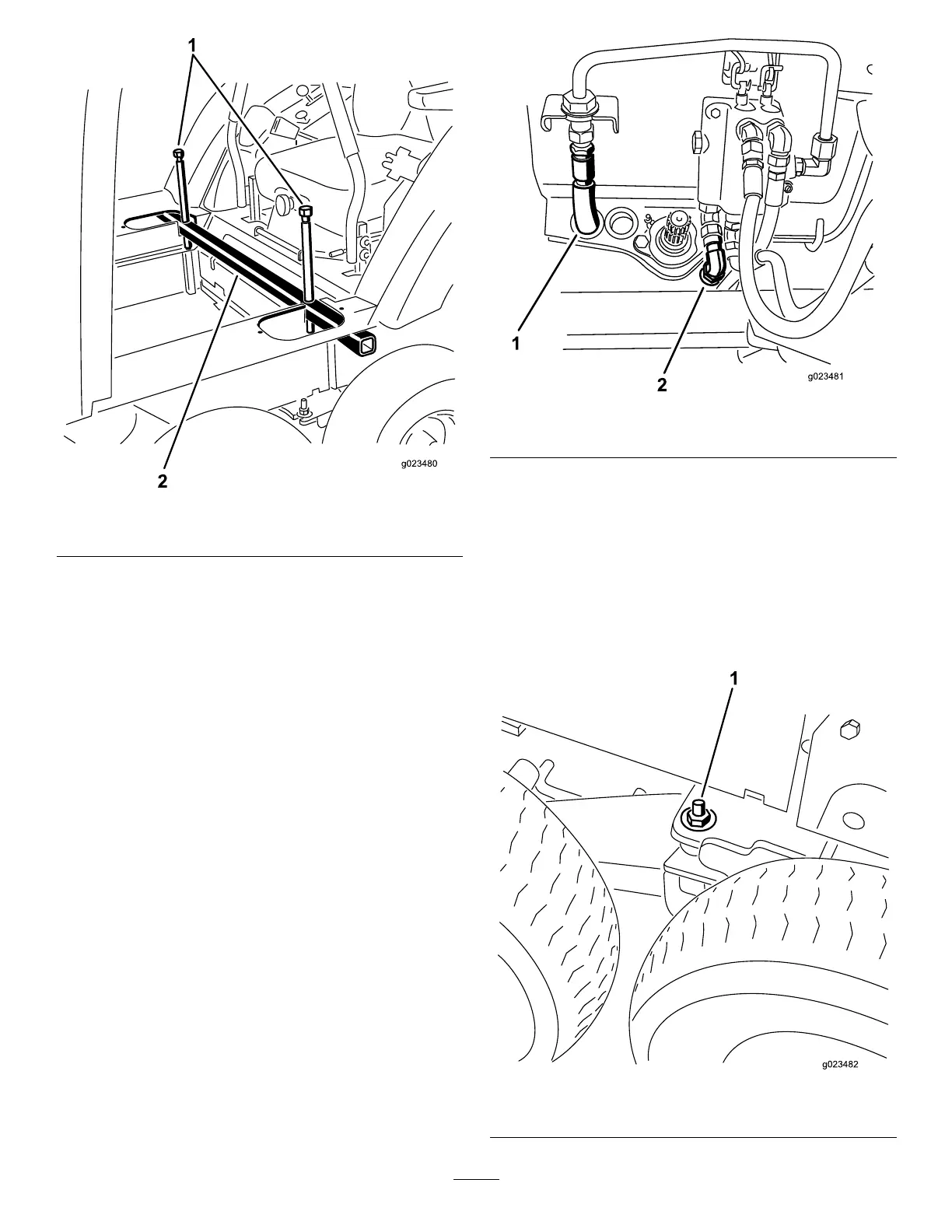

Figure27
1.Jackingbolts
2.Cab-jacktube
17.Connectthehydraulic-pressurehosetothevalvehard
lineandthetankhosetothevalve(Figure28).
Retainthehoseplugsforthesummerchangeover.
Note:Makesurethehosesarenotekinkedorare
rubbingagainstanymovingparts.
Note:Adjusttheangleofthettingstoaccommodate
theroutingofthehoses.
Figure28
1.Pressurehose2.Tankhose
18.Raisetherearofthemachineuntil2jackstandscanbe
positionedunderthereartubeataheightthatsupports
thereartires25to76mm(1to3inches)offofthe
ground.
19.Lowertheoorjacksotherearframerestsonthejack
stands.Positiontheoorjackunderthecenterofthe
frontliftarmpivottube.
20.Removethe1/2inchatwasherandthe1/2inchnut
installedonthestudonthebogiepivot(Figure29).
Figure29
1.1/2inchnutandatwasheronthebogie-pivotstud
