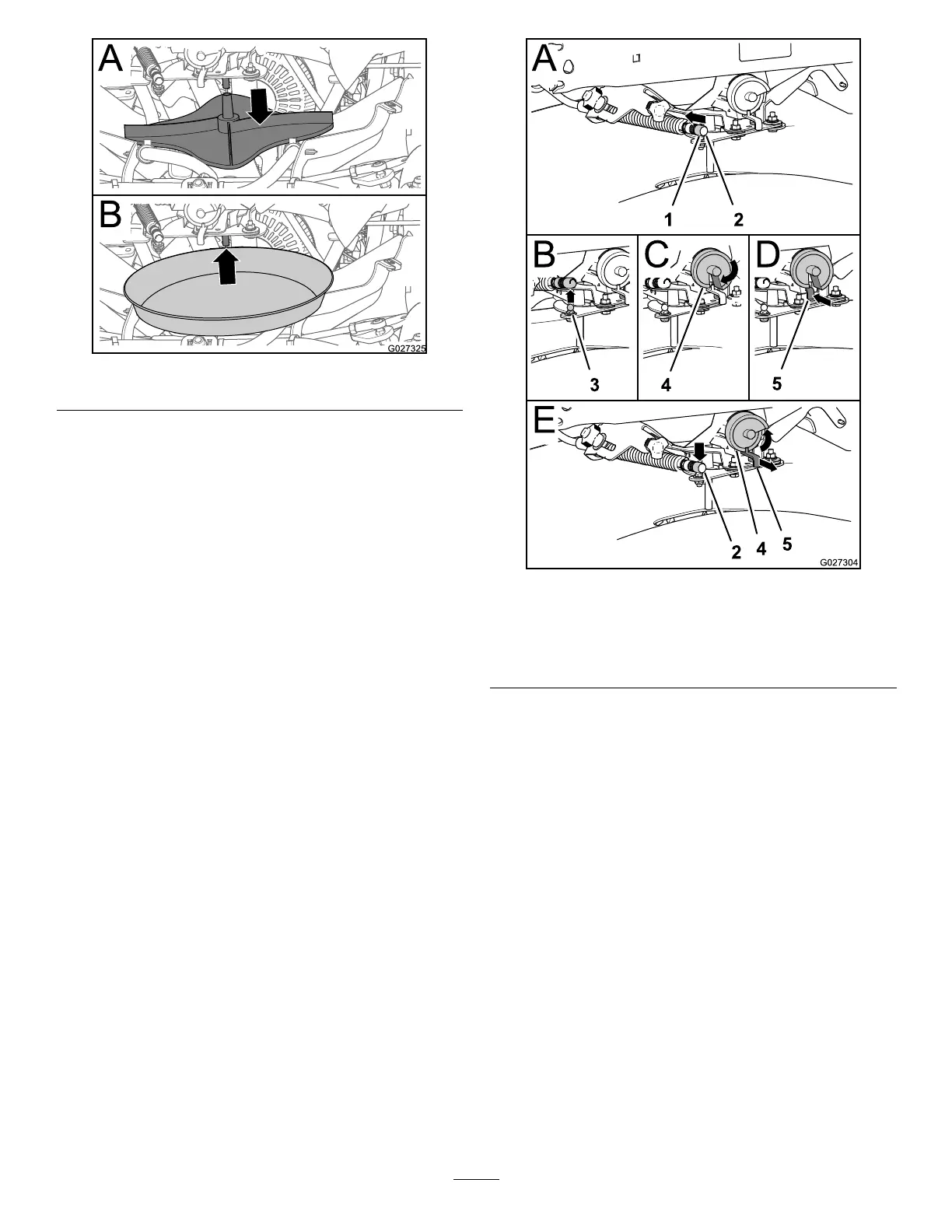

g027325
Figure29
5.Placeashallowpanundertheshaftofthe
impellermotor(Figure29).
DisconnectingtheRate-GateLinkage
1.Pushthelockingsleeveforthegatecable
rearwardandliftthecableupfromtheballstud
oftherate-gatelinkage(Figure30).
g027304
Figure30
1.Lockingsleeve4.Drop-ratecam
2.Gatecable
5.Rate-gatelinkage
3.Ballstud
2.Pullthecableofftheballstud(Figure30).
3.Rotatethedrop-ratecampastposition-9so
thattheslotinthecamalignswiththelinkage
(Figure30).
4.Fullypushtherate-gatelinkagerearward(Figure
30).
5.Ifthereismaterialinthehopperallowthe
materialtopourintoashallowpan;whenthe
hopperisempty,removethepan.
