CleaningtheStrainer
ServiceInterval:Aftereachuse
Important:Ifyouusedwettable-powder
chemicals,cleanthestraineraftereachtimethat
yourinsethesprayertank.
1.Emptythesprayertank;refertoEmptyingthe
SprayerT ank(page40).
2.Rotatethehandleofthepump-shutoffvalve90°
counterclockwisetotheCLOSEposition(Figure
53).

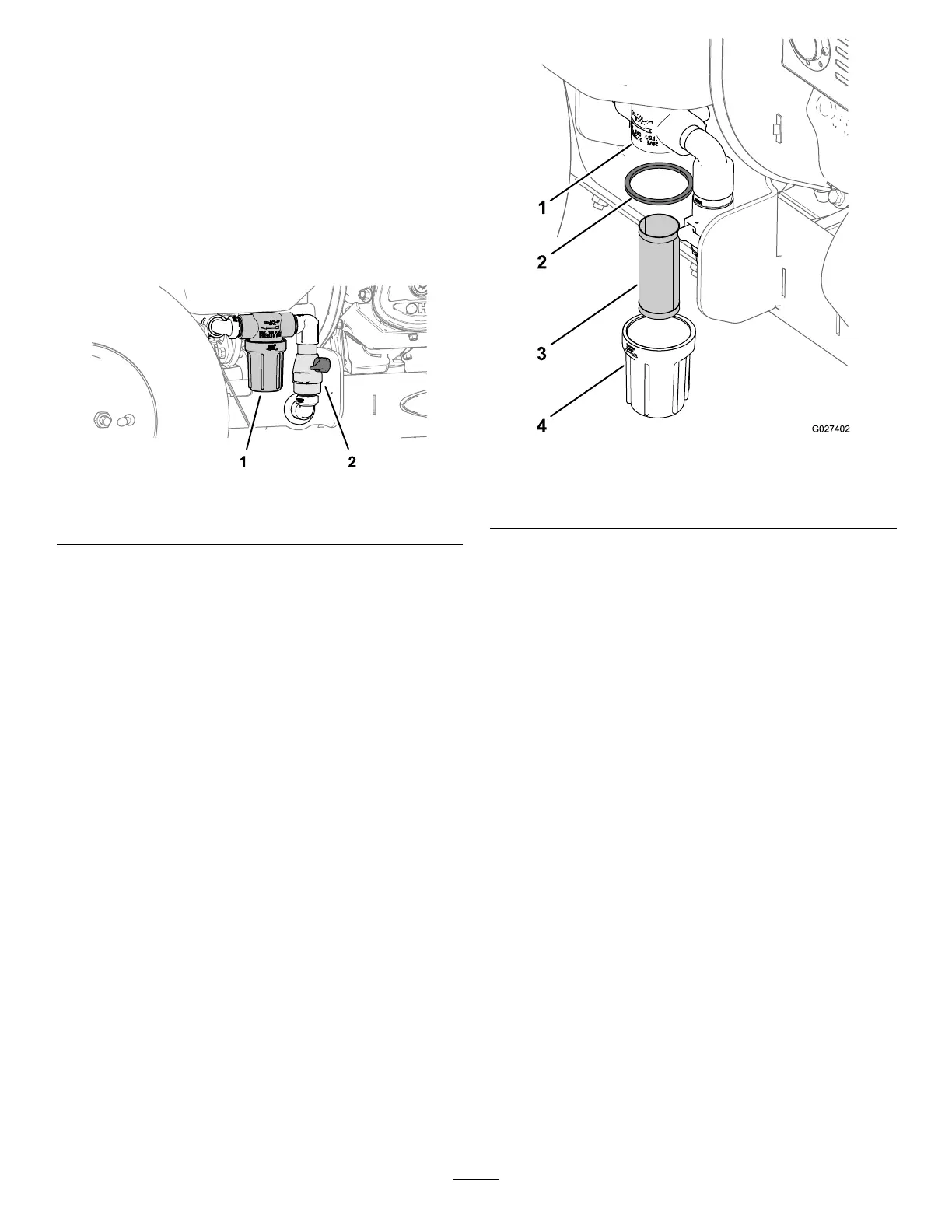

g249175
Figure53
1.Strainer2.Pump-shutoffvalve
3.Alignadrainpanunderthestrainer(Figure53).
4.Rotatethestrainerbowlcounterclockwiseand
removethebowlandscreenfromthebodyof
thestrainer(Figure54).
Note:Removethestrainerbowlbyhand.
Note:Replacethegasketorscreenorbothif
thesepartsarewornordamaged
g027402
Figure54
1.Strainerbody3.Screen
2.Gasket
4.strainerbowl
5.Allowanyresidualchemicalsolutiontodrain
fromthestrainerbody.
Note:Disposeofthewastesolutionaccording
tolocalcodesandthechemicalmanufacturer's
instructions.
6.Useasoft-bristlebrushandcleanwatertoclean
thescreenandbowl
7.Installthescreenintothestrainerbody(.Figure
54).
8.Installthegasketandstrainerbowlontothe
strainerbody,andhandtightenthebowl(Figure
54).
9.Rotatethehandleofthepump-shutoffvalve90°
clockwisetotheOPENposition(Figure53).
