Toro 39678 - Cooling System Maintenance; Cleaning the Air-Intake Screen; Cleaning the Cooling System

CoolingSystem
Maintenance
CleaningtheAir-Intake
Screen
Removeanybuildupofgrass,dirt,orotherdebris
fromthecylinderandcylinderheadcoolingns,
theair-intakescreenontheywheelend,andthe
carburetor-governorleversandlinkage.Thishelps
ensureadequatecoolingandcorrectenginespeedto
reducethepossibilityofoverheatingormechanical
damagetotheengine.
CleaningtheCooling
System
ServiceInterval:Beforeeachuseordaily
Every100hours/Yearly(whichevercomesrst)
1.Parkthemachineonalevelsurface,disengage
thePTO,andengagetheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removetheair-intakescreen,recoilstarter,and
fanhousing(Figure34).
4.Cleanthedebrisandgrassfromtheengine
parts.
5.Installtheair-intakescreen,recoilstarter,and
fanhousing(Figure34).

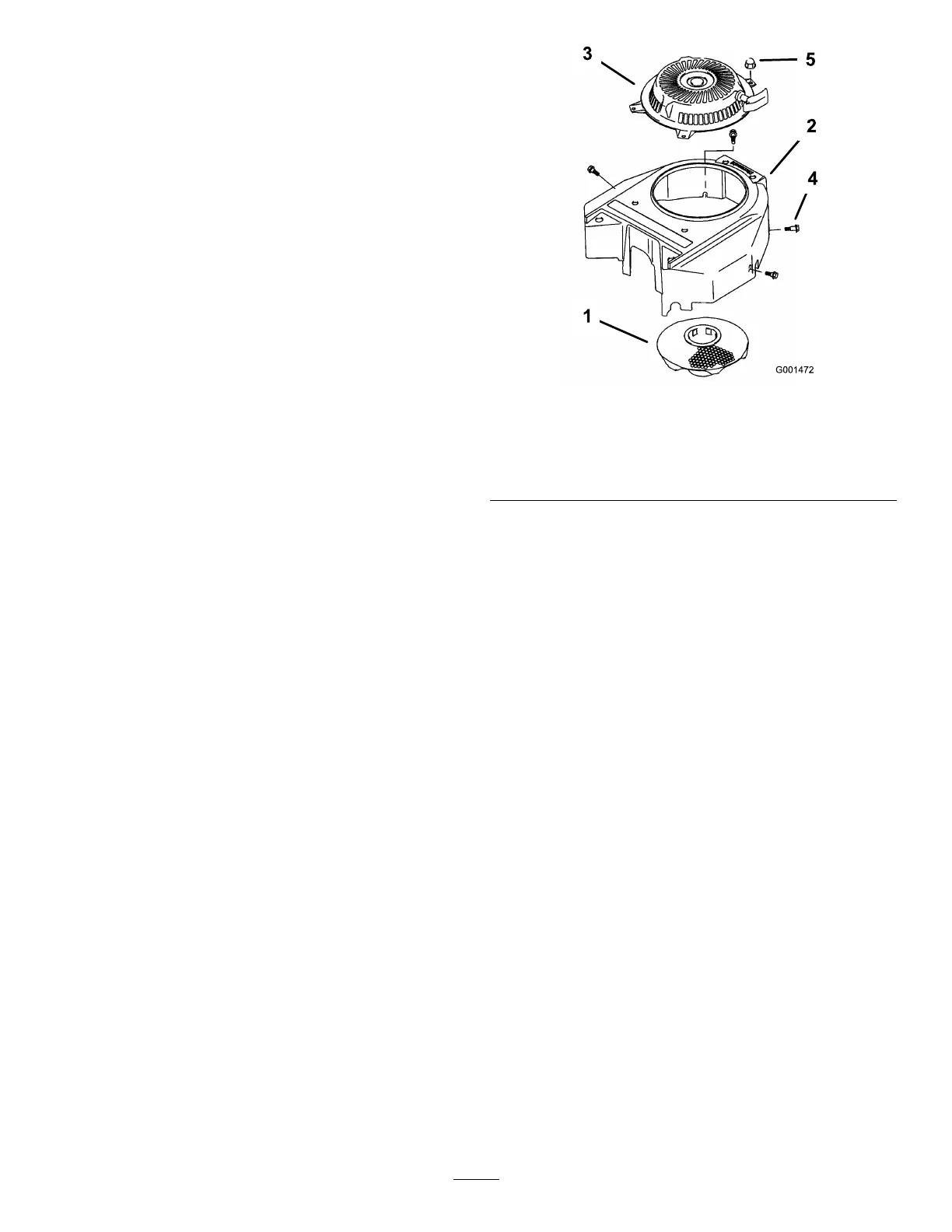

g001472
Figure34
1.Air-intakescreen4.Bolt
2.Fanhousing5.Nut
3.Recoilstarter
