Toro 39678 - Controls; Control Panel Layout

ProductOverview

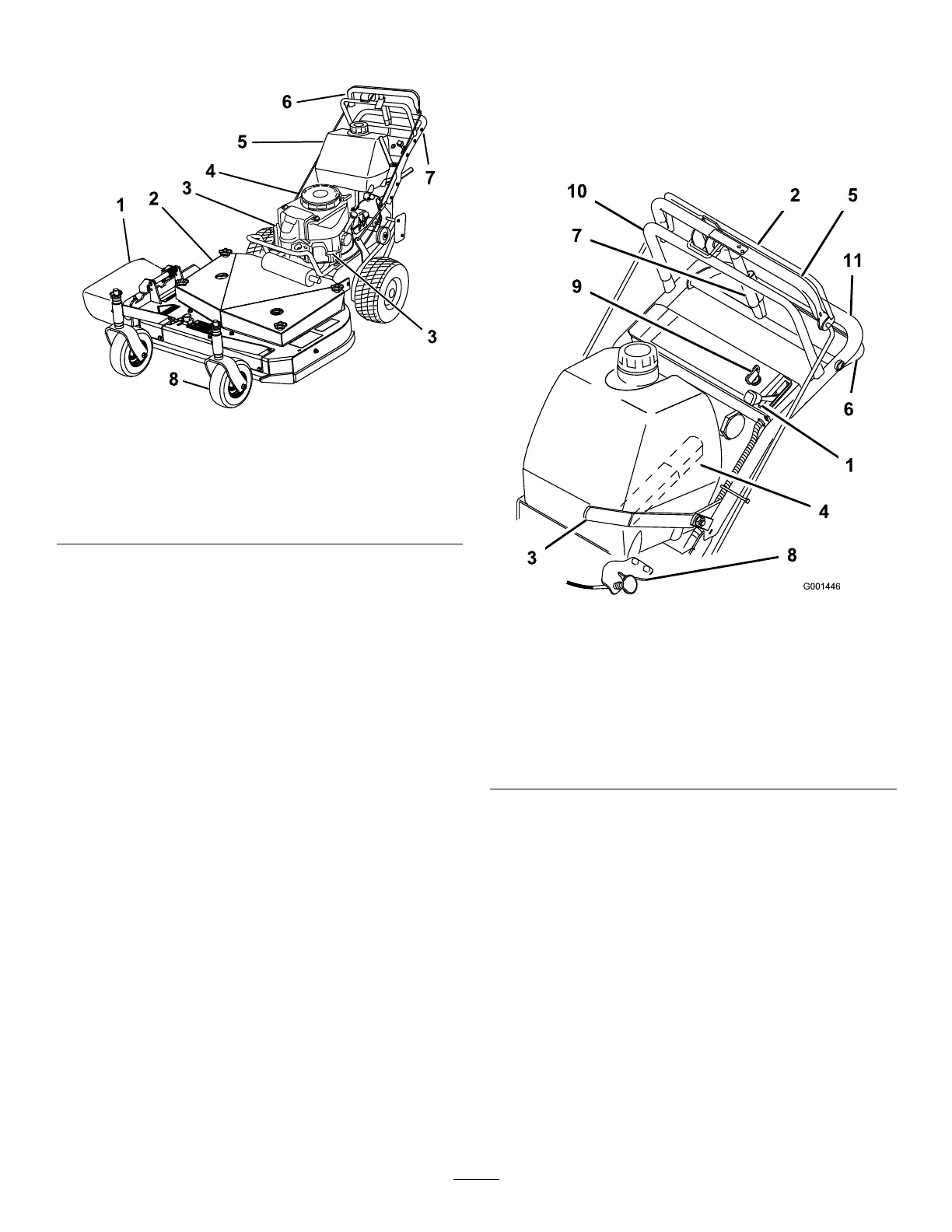

g213356
Figure3
1.Side-dischargedeector
5.Fueltank
2.Mowerdeck6.T-barcontrol
3.Sparkplug
7.Handle
4.Recoil-starthandle8.Frontcasterwheel
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
ControlPanel
g001446
Figure4
1.Throttlecontrol7.Parking-brakelever
2.Blade-controlbail
8.Choke
3.Blade-controllever(power
takeoff)
9.Keyswitch
4.Gear-shiftlever
10.Upperhandle
5.Uppercontrolbar11.Lowerhandle
6.Lowercontrolbar
ThrottleControl
Thethrottlecontrolhas2positions:FASTandSLOW
(Figure4).
Gear-ShiftLever
Thegear-shiftlevelsallowsyoutoshiftto5FORWARD
positions,NEUTRALposition,andREVERSEposition
(Figure4).
Note:Ithasanin-lineshiftpattern.
Important:Donotshiftwhilethemachineis
moving,asyoumaydamagethetransmission.
9
