Toro 39678 - Adjusting the Control Rods

AdjustingtheControlRods
1.Withthewheeldrivefullyengaged,checkthe
gapbetweentheuppercontrolbarandthexed
bar.Thegapneedstobeapproximately25to32
mm(1to1-1/4inches)asshowninFigure18.
Note:Theuppercontrolbarandthexedbar
mustbeparallelintheengaged,relaxed,and
brakepositions.

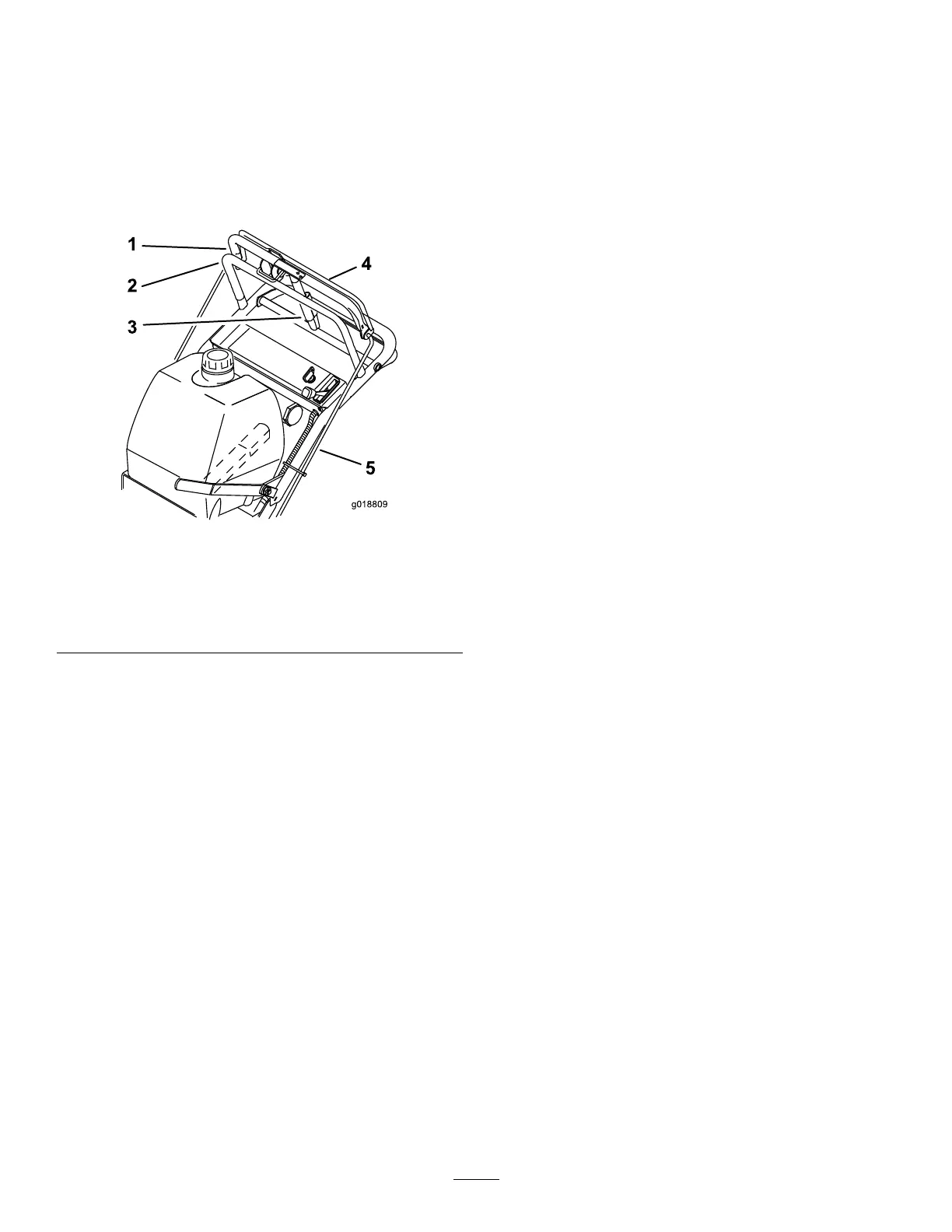

g018809
Figure18
1.25to32mm(1to1-1/4
inches)gap
4.Uppercontrolbar
2.Fixedcontrolbar
5.Controlrod
3.Parking-brakelever
2.Checktheoperation.Ifadjustmentisrequired,
removethehairpincottersecuringtherodtothe
uppercontrolbar.Threadtherodinoroutofthe
controlrodttingforproperpositionandinstall
thecontrolrodintotheuppercontrolbarwith
thehairpincotter.
3.Afteradjustingthecontrolrods,checkthe
parkingbrakeadjustment;refertoBrake
Maintenance(page34).
