Adjusting the Height-of-Cut Pin
The height-of-cut is adjusted from 25 to 140 mm (1
to 5-1/2 inches) in 6 mm (1/4 inch) increments by
relocating the clevis pin into dif ferent hole locations.
1. Move the transport lock to the lock position.
2. Push on the deck-lift pedal with your foot, and
raise the mower deck to the transport position
(also the 140 mm (5-1/2 inch) cutting height
position) as shown in Figure 31 .
3. T o adjust, rotate the pin 90 degrees and remove
the pin from the height-of-cut bracket ( Figure
31 ).
4. Select a hole in the height-of-cut bracket
corresponding to the height-of-cut desired, and
insert the pin ( Figure 31 ).
5. Push on the deck lift, pull back on the transport
lock, and slowly lower the mower deck.

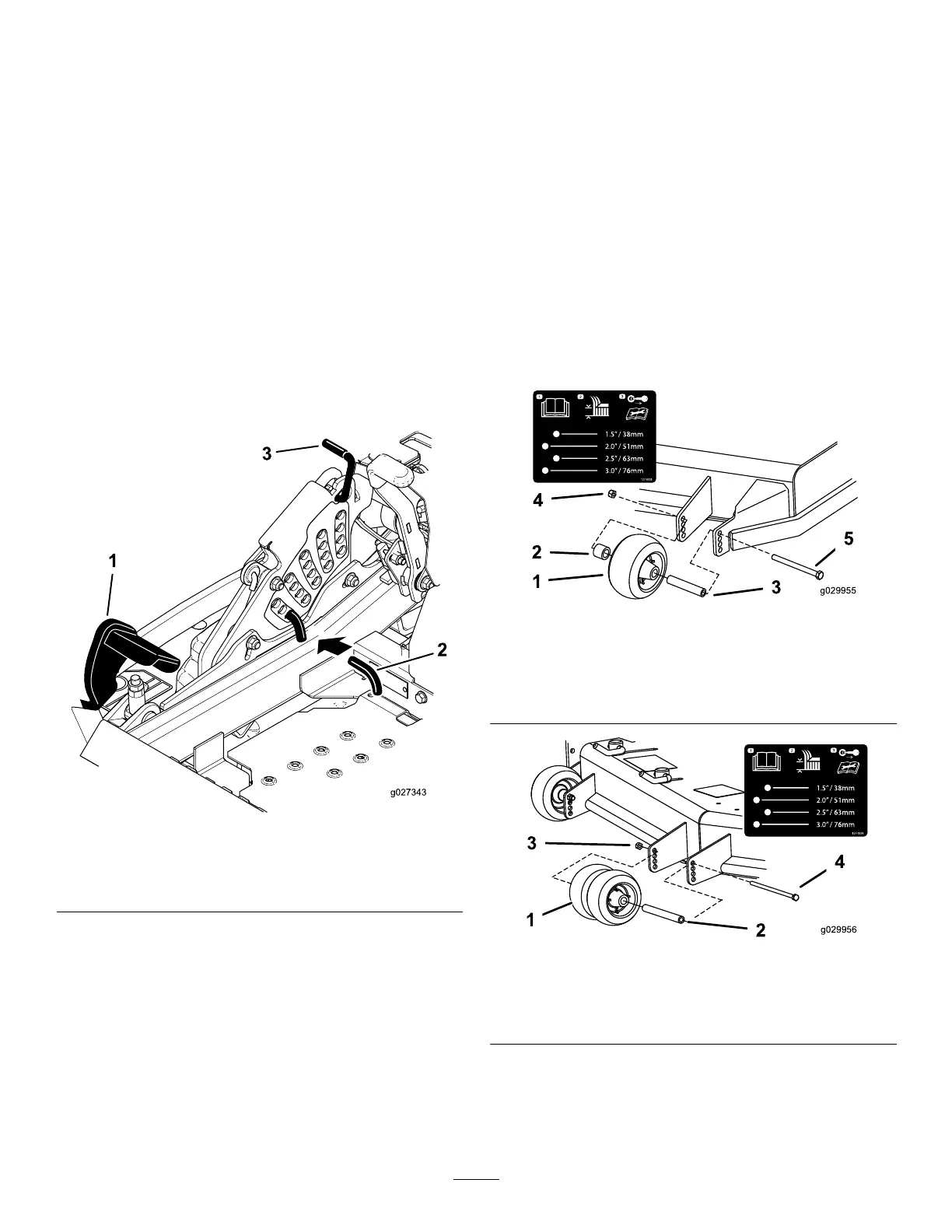

g027343
Figure 31
1. Deck-lift pedal
3. T ransport lock
2. Cut-of-height pin
Adjusting the Anti-Scalp
Rollers
Machines with Side Discharge
Whenever you change the height-of-cut, adjust the
height of the anti-scalp rollers.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Adjust the anti-scalp rollers as shown in Figure
32 , Figure 33 , and Figure 34 .
g029955
Figure 32
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
g029956
Figure 33
1. Anti-scalp roller 3. Flange nut
2. Bushing 4. Bolt
32
