Drive System
Maintenance
Checking the Seat Belt
Service Interval : Before each use or daily
Inspect the seat belt for wear , cuts, and proper
operation of the retractor and buckle. Replace the
seat belt if it is damaged.
Checking the Roll-Bar
Knobs
Service Interval : Before each use or daily
W ARNING
T o avoid injury or death from rollover , keep
the roll bar in the fully raised, locked position
and use the seat belt.
Ensure that the seat is secured to the
machine.
• Check that both the mounting hardware and the
knobs are in good working condition.
• Make sure that the knobs are fully engaged with
the roll bar in the raised position.
Note: The upper hoop of the roll bar may need
to be pushed forward or pulled rearward to fully
engage both knobs ( Figure 72 and Figure 73 ).

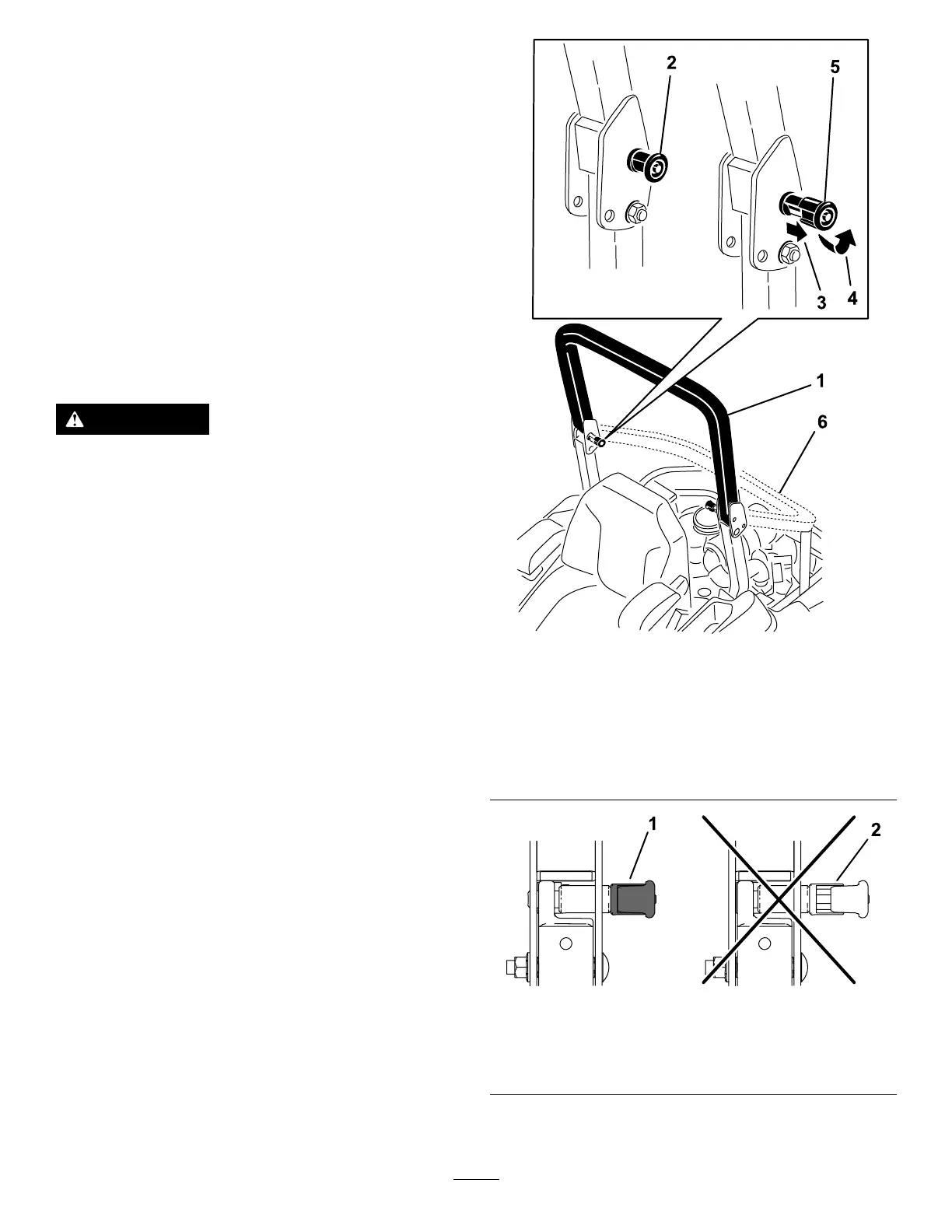

g228804
Figure 72
1. Roll bar in the upright
position
4. Rotate the roll-bar knob 90
degrees.
2. Roll-bar knob in the
latched position
5. Roll-bar knob in the
unlatched position
3. Pull the roll-bar knob out
and rotate it 90 degrees.
6. Roll bar in the folded
position
g228981
Figure 73
1. Engaged 2. Partially engaged—do not
operate with the roll bar in
this position.
55
